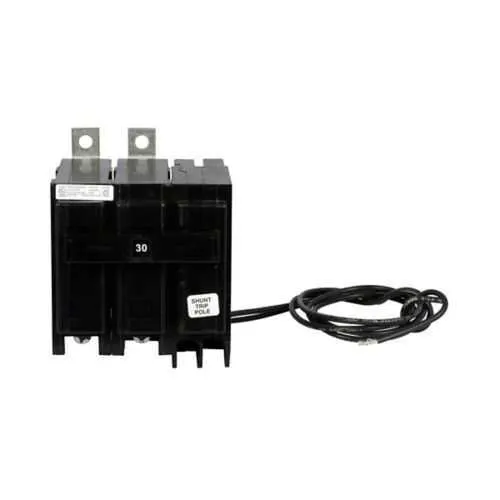

Eaton BAB2030S Thermal Magnetic Circuit Breaker - UL Listed
Part Number: BAB2030S
Quick Summary
The Eaton BAB2030S thermal magnetic circuit breaker delivers reliable overcurrent protection for industrial control panels and machinery. When downtime or nuisance trips cost time and money, a compact, dependable device can make or break a project. CSA Certified and UL Listed with HACR rating give you North American compliance for panelboards and HVAC equipment. Coupled with bolt-on mounting and a 30 A rating, it supports scalable protection with predictable trip behavior. Its 10 kAIC interrupt rating and 120/240 V operation align with standard industrial power distribution. In practice, this means faster protection, reduced downtime, and simpler procurement for engineers and maintenance teams.
Product Information
Extended Description
BAB2030S Eaton: Eaton BAB thermal magnetic circuit breaker,Quicklag industrial thermal-magnetic circuit breaker,30 A,10 kAIC,Two-pole,120/240 V,Non-Interchangeable,Q7,BAB,24/48 Vdc Shunt trip
Product Name
Eaton BAB thermal magnetic circuit breaker
Catalog Number
BAB2030S
UPC
786679509623
Product Length/Depth
3.5 in
Product Height
4.5 in
Product Width
3.7 in
Product Weight
0.85 lb
Warranty
1 year
Certifications
CSA Certified UL Listed
Catalog Notes
HACR rated
Circuit breaker type
BAB
Mounting Method
Bolt-on
Number of poles
Two-pole
Type
Quicklag industrial thermal-magnetic circuit breaker
Amperage Rating
30 A
Interrupt rating
10 kAIC
Trip Type
Non-Interchangeable
Voltage rating
120/240 V
Quantity
7
Shunt trip
120-240V
Special features
Bolt-on mounting
Feature → 30 A amperage rating. Business impact → protects feeders and motors while allowing normal startup currents, reducing nuisance trips. Application → panelboards and motor-driven equipment in manufacturing environments. Paragraph two continues the pattern: Feature → 10 kAIC interrupt rating. Business impact → safely interrupts high fault currents without damage to equipment or wiring, increasing system reliability. Application → feeders and motor circuits prone to short-circuit faults. Paragraph three highlights: Feature → two-pole, 120/240 V with bolt-on mounting. Business impact → simplifies installation and ensures secure, vibration-resistant mounting. Application → standard electrical distribution in control panels and machine enclosures. Paragraph four covers: Feature → Quicklag industrial thermal-magnetic design. Business impact → fast, predictable trip behavior reducing nuisance trips while meeting industry protection standards. Application → motors, conveyors, and automated lines with inrush loads. Paragraph five emphasizes: Feature → shunt trip capability and HACR rating with CSA UL certifications. Business impact → enables remote shutdown and regulatory compliance, minimizing downtime and risk. Application → HVAC equipment, motor control centers, and panelboards in industrial facilities.
Get a Quick Quote for a Eaton BAB2030S
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton BAB2030S?
Enquire Now
FAQs
For proper installation, mount the BAB2030S using its bolt-on method in a suitable panel, ensuring adequate clearance and secure wiring for 120/240 V circuits. Plan for two-pole protection and include the possibility of a 120-240 V shunt trip if remote control is required. The unit weighs about 0.85 lb and fits standard enclosure footprints, aiding dense panel layouts.
The BAB2030S provides a 30 A amperage rating and a 10 kAIC interrupt capacity at 120/240 V across two poles. This combination protects motor circuits during overloads and short circuits while tolerating typical inrush currents, enabling safe operation of moderate-load motors without nuisance trips in normal startup conditions.
Yes. The BAB2030S is HACR rated and UL listed, making it appropriate for HVAC and related equipment in North American installations. Its two-pole 120/240 V configuration and 10 kAIC interrupt rating support reliable protection for HVAC drives, fans, and control circuitry within panelboards and motor control centers.
The BAB2030S is CSA Certified and UL Listed, with HACR rating noted in the catalog. These certifications verify compliance with North American electrical standards, facilitating code compliance, safer commissioning, and streamlined procurement for regulated environments such as manufacturing facilities and critical infrastructure.
The BAB2030S offers a 1-year warranty and a robust thermal-magnetic design that reduces nuisance trips, improving uptime. Its bolt-on mounting speeds installation, lowers maintenance time during panel upgrades, and the 30 A rating aligns with common industrial loads, contributing to predictable protection and total cost of ownership savings.
