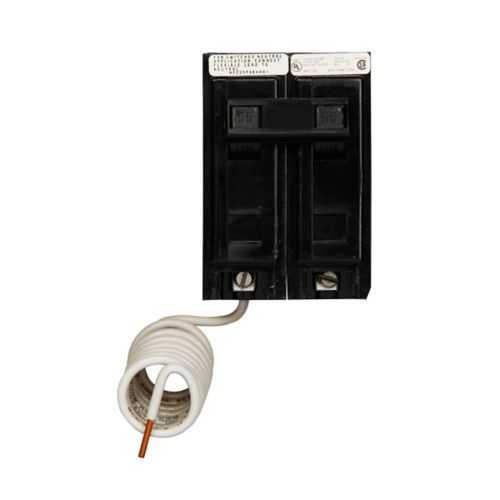

Eaton BAB2055S1 Thermal Magnetic Circuit Breaker - HACR
Part Number: BAB2055S1
Quick Summary
The Eaton BAB2055S1 thermal magnetic circuit breaker protects electrical circuits in industrial control panels, with two poles and a 55 A rating. Engineers often contend with nuisance trips and misconfigured protection settings that drive downtime and maintenance costs. CSA Certified and UL Listed with HACR rating, the unit meets common compliance requirements for commercial and industrial environments. Bolt-on installation and a 120/240 V rating streamline retrofits in existing panels, while the 24/48 V DC shunt trip option supports remote trips in automation systems. In practice, this translates to safer, more reliable power protection with reduced total cost of ownership for control cabinets and machinery.
Product Information
Extended Description
BAB2055S1 Eaton: Quicklag Industrial Thermal-Magnetic Circuit Breaker, Two-pole, 24,48V/dc shunt trip, 55A, 10 kAIC, 120/240V, Non-Interchangeable
Product Name
Eaton BAB thermal magnetic circuit breaker
Catalog Number
BAB2055S1
UPC
786679377109
Product Length/Depth
5 in
Product Height
1 in
Product Width
3 in
Product Weight
0.5 lb
Warranty
1 year
Certifications
CSA Certified UL Listed
Catalog Notes
HACR rated
Circuit breaker type
BAB
Mounting Method
Bolt-on
Number of poles
Two-pole
Type
Thermal magnetic circuit breakers
Amperage Rating
55 A
Interrupt rating
10 kAIC
Trip Type
Non-Interchangeable
Voltage rating
120/240 V
Quantity
7
Special features
24,48V/dc shunt trip
