Eaton BAB2090 Thermal Magnetic Circuit Breaker - 10 kAIC
Part Number: BAB2090
Quick Summary
Eaton BAB2090 thermal magnetic circuit breaker protects industrial distribution panels and motor circuits by interrupting faults quickly. This compact, bolt-on two-pole device helps reduce wiring complexity and panel footprint while meeting critical protection needs. Built for 120/240 V systems, it offers a 90 A rating and a 10 kAIC interrupt capacity, backed by CSA Certified and UL Listed compliance, with HACR-rated notes for HVAC applications. For engineers facing tight installation timelines, the non-interchangeable design simplifies selection and reduces spare-part inventory. Leveraging Eaton's Quicklag technology, it delivers reliable coordination with downstream devices, while the 1-year warranty supports ongoing maintenance economics and total-cost-of-ownership considerations.
Product Information
Extended Description

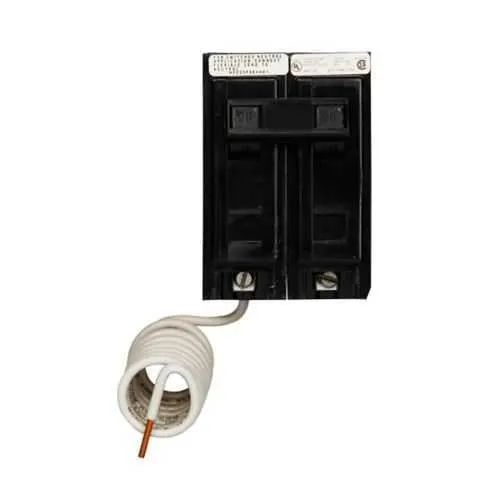

BAB2090 Eaton: Eaton BAB thermal magnetic circuit breaker, 90A, BAB type, 10 kAIC, Bolt-on mounting, Two-pole, Non-Interchangeable, 120/240V
Product Name
Eaton BAB thermal magnetic circuit breaker
Catalog Number
BAB2090
UPC
786679302903
Product Length/Depth
3.5 in
Product Height
3 in
Product Width
2.5 in
Product Weight
0.65 lb
Warranty
1 year
Certifications
CSA Certified UL Listed
Catalog Notes
HACR rated
Circuit breaker type
BAB
Mounting Method
Bolt-on
Number of poles
Two-pole
Type
Quicklag industrial thermal-magnetic circuit breaker
Amperage Rating
90 A
Interrupt rating
10 kAIC
Trip Type
Non-Interchangeable
Voltage rating
120/240 V
Quantity
7
Special features
Bolt-on mounting
Feature → Business Impact → Application: Thermal magnetic protection combines overload and short-circuit interruption to minimize nuisance trips and protect downstream equipment, translating to improved uptime and reduced repair costs for critical lines in manufacturing cells and process panels. Application: motor control centers and equipment feeds in industrial environments benefit from fast fault isolation and dependable protection. Feature → Business Impact → Application: Bolt-on mounting and a two-pole design simplify installation, delivering secure, vibration-resistant integration in new builds and retrofit projects with limited ceiling or enclosure space. Application: control panels in packaging, material handling, and HVAC systems benefit from straightforward field mounting and robust operation. Feature → Business Impact → Application: 90 A rating with a 10 kAIC interrupt capacity provides scalable protection for medium-load circuits, enabling compliant protection of feeders and branch circuits in machine rooms and panelboards. Application: general industrial protection and HVAC applications. Feature → Business Impact → Application: HACR rating, CSA Certified, and UL Listed certifications ensure regulatory compliance and safe integration into building automation and energy-management projects. Application: commercial and industrial equipment protection. Feature → Business Impact → Application: Compact dimensions (3.5 in x 3 in x 2.5 in) and 0.65 lb weight reduce enclosure footprint and logistics footprint, supporting lightweight spare parts and easier retrofits in compact panels. Application: space-constrained industrial control enclosures. Feature → Business Impact → Application: Non-interchangeable trip type and Quicklag family design minimize coordination surprises in complex systems, while offering clear replacement paths with identical specifications. Application: OEM line upgrades and upgrade planning in manufacturing and process industries.
