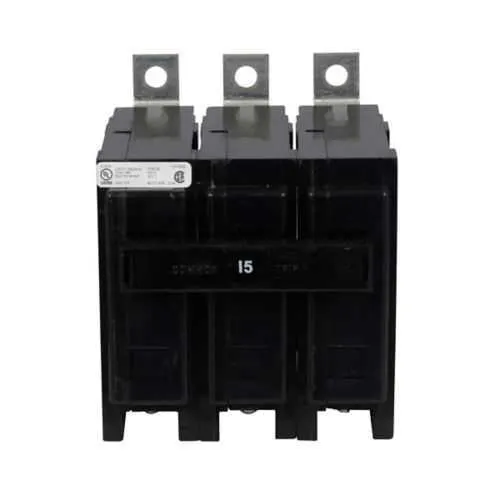

Eaton BAB3015HG Circuit Breaker - UL Listed
Part Number: BAB3015HG
Quick Summary
The Eaton BAB3015HG thermal magnetic circuit breaker protects industrial panels from overcurrent in 400 Hz systems. For engineers facing nuisance trips and tight wiring, this bolt-on, three-pole unit simplifies installation and enhances reliability. UL Listed certification supports safety and code compliance across industrial environments. With a 15 A rating and 10 kAIC interrupt capacity, it delivers dependable short-circuit protection while fit-for-purpose for Quicklag industrial circuits. The bolt-on mounting and 3 in depth profile streamline panel integration, reducing assembly time and inventory complexity. In practice, this means lower maintenance costs, faster replacements, and consistent protection for critical 400 Hz power rails.
Product Information
Extended Description
BAB3015HG Eaton: Quicklag Industrial Thermal-Magnetic Circuit Breaker, 15A, BAB type, Bolt-on mounting, Three-pole, 400hz
Product Name
Eaton BAB thermal magnetic circuit breaker
Catalog Number
BAB3015HG
UPC
786679139561
Product Length/Depth
3 in
Product Height
4.8 in
Product Width
3.6 in
Product Weight
0.8 lb
Warranty
1 year
Certifications
UL Listed
Circuit breaker type
BAB
Mounting Method
Bolt-on
Number of poles
Three-pole
Type
Quicklag industrial thermal-magnetic circuit breaker
Amperage Rating
15 A
Interrupt rating
10 kAIC
Trip Type
Non-Interchangeable
Voltage rating
240 V - 240 V
Special features
Bolt-on mounting400 Hz calibrated
Feature: 15 A amperage rating and 10 kAIC interrupt capacity → Business impact: Provides targeted overcurrent protection for standard loads while ensuring rapid fault interruption, reducing equipment damage and downtime. Application: Ideal for 15 A circuits in industrial control panels and Quicklag-based systems. Feature: Thermal-magnetic, non-interchangeable trip → Business impact: Delivers coordinated protection with predictable trips, minimizing nuisance events and avoiding miscoordination in multi-device assemblies. Application: Common in machines with mixed loads and non-linear currents in 400 Hz environments. Feature: Bolt-on mounting and compact form factor → Business impact: Speeds installation, simplifies panel layout, and lowers field labor costs; reduces inventory footprint for spare parts. Application: Suitable for retrofit upgrades and new panel builds that require quick, clean servicing. Feature: Three-pole design → Business impact: Ensures balanced protection across three-phase circuits, improving reliability in industrial drives and fast-acting control loops. Application: Used in three-phase 400 Hz power rails in aerospace and manufacturing. Feature: 400 Hz calibration and UL Listed certification → Business impact: Supports regulatory compliance and precise tripping behavior in specialized power systems, decreasing risk of under- or over-tripping. Application: Fits aerospace, aviation, and high-speed industrial applications needing precise protection. Feature: Physical specs and warranty → Business impact: Predictable replacement cycles with a 1-year warranty, enabling better maintenance planning and cost control. Application: Suitable for maintenance strategies emphasizing standardization and vendor support.
Get a Quick Quote for a Eaton BAB3015HG
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton BAB3015HG?
Enquire Now
FAQs
The BAB3015HG uses bolt-on mounting, with a three-pole configuration designed for standard industrial panels. Its compact 3 in depth, 3.6 in width, and 4.8 in height simplify cavity fitment and wiring routes. Use compatible bus bars and ensure proper torque on mounting fasteners to maintain voltage and current performance.
Key ratings include a 15 A amperage rating, 10 kAIC interrupt rating, and a 240 V voltage rating. These specifications define the continuous operating capacity and fault interruption capability, enabling reliable protection of typical industrial loads while maintaining system coordination in three-phase 400 Hz environments.
Yes. The BAB3015HG is specifically documented for 400 Hz systems and uses a three-pole design ideal for three-phase control panels. It fits applications requiring precise protection and fast fault isolation in aerospace and related industries, while benefiting from bolt-on installation for easier field upgrades.
The BAB3015HG carries UL Listed certification, which supports compliance with widely adopted electrical safety standards. This helps align the product with regulatory requirements for industrial equipment, simplifies supplier qualification processes, and aids in passing safety and conformity assessments during audits.
With a 1-year warranty and robust thermal-magnetic protection, the BAB3015HG minimizes unplanned downtime and supports predictable maintenance planning. Its durable mounting and three-pole protection reduce wiring rework and spare-part needs, translating to lower lifecycle costs and faster mean time to repair (MTTR) in busy control panels.
