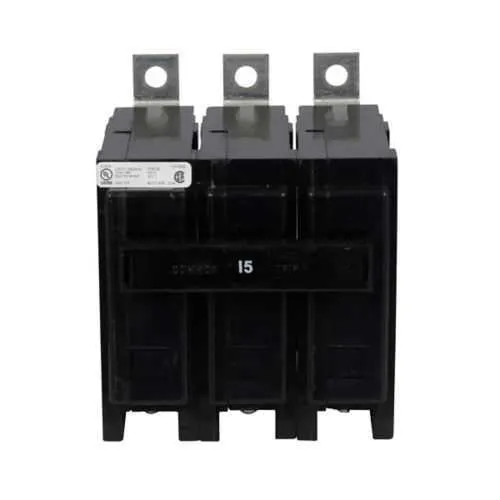

Eaton BAB3015HI Thermal Magnetic Circuit Breaker - UL Listed
Part Number: BAB3015HI
Quick Summary
The Eaton BAB3015HI thermal magnetic circuit breaker protects 240V three-phase distribution panels with reliable overcurrent protection across industrial power systems. Installing this device helps prevent unplanned downtime caused by overloads and short circuits, a common pain point in busy automation environments. It carries UL Listed certification and HACR rating, reinforcing compliance for control rooms and HVAC-related loads, while its robust Quicklag technology supports precise, selective tripping. The combination of a compact form factor and a three-pole, four-wire design delivers straightforward installation and dependable protection, making it a practical choice for panel builders and OEMs seeking consistent performance in 240V distribution schemes.
Product Information
Extended Description
BAB3015HI Eaton: Circuit Breaker, BAB, Used with Distribution panels 240V Three-phase, Four-wire maximum, 15A amperage rating, Three-pole, 240V voltage rating
Product Name
Eaton BAB thermal magnetic circuit breaker
Catalog Number
BAB3015HI
UPC
782114313053
Product Length/Depth
2.563 in
Product Height
3 in
Product Width
3 in
Product Weight
0.75 lb
Warranty
1 year
Compliances
HACR Rated
Certifications
UL Listed
Circuit breaker type
BAB
Number of poles
Three-pole
Number of wires
4
Type
Quicklag industrial thermal-magnetic circuit breaker
Amperage Rating
15 A
Interrupt rating
10 kAIC
Phase
Three-phase
Trip Type
T196
Voltage rating
240 V - 240 V
Used with
Distribution panels 240 V (Three-phase, four-wire maximum)
Circuit Protection, Miniature Circuit Breakers and Supplementary Protectors, Volume 4, Tab 1
Circuit Breakers Explained
Eaton Specification Sheet - BAB3015HI
Feature: Thermal magnetic protection combines both long-term overload and short-circuit response in one device. Business Impact: Reduces nuisance trips and equipment wear, improving uptime for mission-critical processes. Application: Ideal for 240V three-phase distribution panels in industrial automation. The design supports measurable efficiency gains by preventing cascading faults and enabling easier maintenance workflows. Feature: 10 kAIC interrupt rating provides robust fault current handling. Business Impact: Enhances safety margins in high-current environments, reducing risk to personnel and equipment. Application: Suitable for motor loads and large control circuits within panel assemblies. Feature: 3-pole, 4-wire configuration delivers complete three-phase protection with neutral consideration. Business Impact: Ensures balanced protection and simplifies coordination in complex distribution networks. Application: Common in switchgear-distribution panels found in manufacturing lines. Feature: Quicklag industrial type improves trip accuracy and coordination. Business Impact: Minimizes unnecessary downtime while preserving protection levels, leading to lower energy waste and maintenance costs. Application: Preferred in systems with closely spaced protection zones or critical control loops. Feature: UL Listed and HACR rated compliance supports regulatory alignment. Business Impact: Facilitates OEM approvals and end-user acceptance across regulated facilities. Application: Particularly valuable for HVAC, lighting, and comfort-system panels where HACR materials are required. Feature: Compact footprint and standard mounting ease installation. Business Impact: Reduces panel depth and simplifies retrofit projects, cutting installation time and potential errors. Application: Fits distribution panels with space constraints, enabling faster deployments across multiple lines.
Get a Quick Quote for a Eaton BAB3015HI
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton BAB3015HI?
Enquire Now
FAQs
For proper installation, mount the BAB3015HI as a three-pole, four-wire device within 240 V distribution panels. Confirm panel clearance and ensure the unit is compatible with Quicklag trip characteristics. Use UL-listed mounting provisions and follow standard conductor sizing to support 15 A circuits. Verify the unit’s 2.563 in depth, 3 in width, and 3 in height fit within your panel space and bus arrangement.
Key specs include a 15 A amperage rating, 240 V voltage rating, 10 kAIC interrupt rating, three-phase configuration, and 3-pole construction with 4 wires. The device is HACR rated and UL Listed, with a Quicklag industrial type. It weighs 0.75 lb and measures 2.563 in deep, 3 in high, and 3 in wide. The Catalog Number is BAB3015HI and UPC is 782114313053.
Yes. The BAB3015HI is HACR rated and UL Listed, making it suitable for HVAC-related loads and general distribution panels in industrial settings. Its 240 V three-phase, four-wire configuration and 15 A rating align with typical panel protection schemes in manufacturing, data centers, and building automation. Quicklag technology supports precise tripping, reducing the risk of nuisance outages in control circuits.
The BAB3015HI carries UL Listed certification and HACR (Heating, Air Conditioning, and Refrigeration) rating. These certifications support regulatory compliance and safe integration into panel assemblies for industrial automation, HVAC equipment, and other 240 V three-phase applications. UL Listed confirms safety and performance standards, while HACR compatibility ensures suitability for climate-control loads.
The BAB3015HI provides reliable protection that minimizes downtime from overloads and short circuits, reducing maintenance costs and unplanned outages. Its durable construction and Quicklag trip curve support predictable protection, enabling easier spare-part planning and faster replacements. With a 1-year warranty and UL/HACR compliance, it also lowers risk during OEM integration and field servicing, delivering long-term total cost of ownership benefits.
