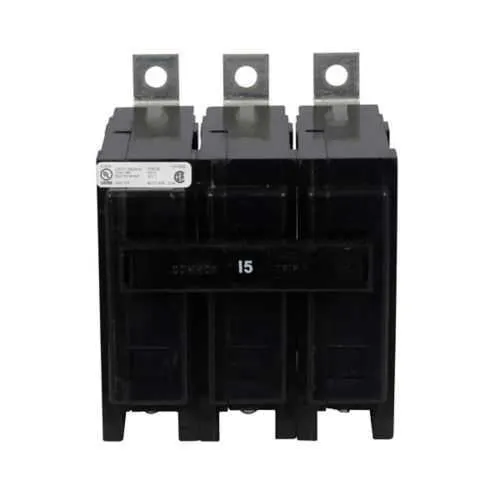

Eaton BAB3015HT Three-pole thermal-magnetic circuit breaker - CSA UL Listed
Part Number: BAB3015HT
Quick Summary
Eaton BAB3015HT is a thermal-magnetic circuit breaker for industrial power distribution applications. It delivers reliable overcurrent protection for panels and equipment racks, reducing outages and equipment damage. Operators often wrestle with nuisance trips or calibration drift in hot, demanding environments; this device offers 50°C calibration and a high interrupt rating to maintain performance under load. With CSA Certified and UL Listed certifications and HACR-rated capability for HVAC and motor circuits, it meets rigorous compliance standards. For engineering teams planning retrofits, bolt-on mounting and compatible terminals simplify installation while preserving service access. The combination delivers predictable protection, longer equipment life, and lower total cost of ownership in busy facilities.
Product Information
Extended Description
BAB3015HT Eaton: Eaton BAB thermal magnetic circuit breaker,Quicklag industrial thermal-magnetic circuit breaker,50° C Calibration,15 A,10 kAIC,Three-pole,240 V,Non-interchangeable,BAB
Product Name
Eaton BAB thermal magnetic circuit breaker
Catalog Number
BAB3015HT
UPC
786679303191
Product Length/Depth
3 in
Product Height
2.9 in
Product Width
3.1 in
Product Weight
0.8 lb
Warranty
1 year
Certifications
CSA Certified UL Listed
Catalog Notes
HACR rated
Circuit breaker type
BAB
Mounting Method
Bolt-on
Number of poles
Three-pole
Terminals
Ring or spade lug
Type
Quicklag industrial thermal-magnetic circuit breaker
Amperage Rating
15 A
Interrupt rating
10 kAIC
Trip Type
Non-Interchangeable
Voltage rating
240 V - 240 V
Quantity
32
Special features
Bolt-on mounting
The BAB3015HT provides a 15 A, 240 V three-pole configuration with a 10 kAIC interrupt rating, enabling robust overload and short-circuit protection for three-phase feeders. This translates into reduced downtime and fewer trips in demanding industrial panels powering motors and control circuits. Bolt-on mounting simplifies retrofit projects, and ring or spade lug terminals accommodate flexible wiring without special tooling, accelerating installation and reducing field labor. The 50°C calibration ensures protective characteristics remain consistent in hot environments, which is critical for plants with elevated ambient temperatures. Certifications, including CSA Certified and UL Listed, underpin regulatory compliance and risk mitigation in regulated facilities. The HACR-rated capability expands applicability to HVAC and motor circuits, offering a versatile protection solution for diverse plant needs. Expect improved equipment longevity and lower maintenance costs with this reliable protection device.
Get a Quick Quote for a Eaton BAB3015HT
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton BAB3015HT?
Enquire Now
FAQs
Install the BAB3015HT using its bolt-on mounting with the ring or spade lug terminals. Ensure correct three-pole wiring for 240 V circuits and torque terminals to manufacturer specifications. The unit’s ambient compatibility supports up to 50°C, reducing the risk of calibration drift in hot facilities. This approach minimizes commissioning time and reduces field labor costs.
The device is rated for 15 A and 240 V, with a 10 kAIC interrupt rating. It has a three-pole configuration and a non-interchangeable trip type. It supports HACR-rated operation for HVAC and motor circuits and carries CSA Certified and UL Listed certifications, ensuring compliance in regulated environments.
Yes. The BAB3015HT is HACR rated and designed for three-pole protection in HVAC and motor control circuits. Its 10 kAIC interrupt rating provides robust protection against short circuits, while 50°C calibration helps maintain accurate protection in warm environments common in HVAC and industrial motor installations.
The BAB3015HT is CSA Certified and UL Listed, indicating compliance with recognized safety and performance standards. These certifications are crucial for regulatory acceptance, insurance requirements, and customer confidence in industrial facilities where rigorous electrical protection is mandated.
With a 1-year warranty and rugged bolt-on design, maintenance is typically minimal. The high interrupt rating and reliable calibration reduce nuisance trips, lowering downtime and service costs. In retrofit projects, faster installation and compatibility with ring/spade terminations translate to lower labor expenses and faster time-to-value.
