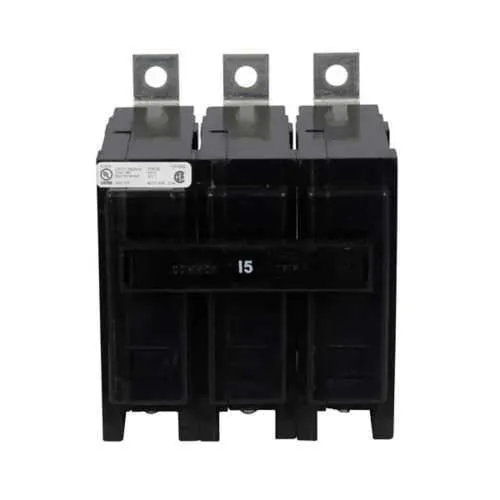

Eaton BAB3015HV Circuit Breaker - UL Listed HACR Rated
Part Number: BAB3015HV
Quick Summary
The Eaton BAB3015HV thermal magnetic circuit breaker protects industrial equipment and control panels with reliable overcurrent protection. For engineers wrestling with nuisance trips and inconsistent protection in mixed-load panels, this unit offers precise trip characteristics and robust construction. UL Listed, CSA Certified, and HACR rated, it meets critical safety and performance standards for commercial and industrial environments. Built for 120/240 V systems with bolt-on mounting and three-pole configurations, it simplifies installation while delivering durable protection. With compact dimensions and compatible terminations like ring or spade lug terminals, it supports tight panel layouts and scalable maintenance programs. This makes it a strong fit for automated machinery and energy-management projects.
Product Information
Extended Description
BAB3015HV Eaton: Eaton BAB thermal magnetic circuit breaker,Quicklag industrial thermal-magnetic circuit breaker,Switching neutral,20 A,10 kAIC,Three-pole,120/240 V,Non-Interchangeable,Q32,BAB,Ring or spade lug terminals
Product Name
Eaton BAB thermal magnetic circuit breaker
Catalog Number
BAB3015HV
UPC
786679842287
Product Length/Depth
3.5 in
Product Height
3.5 in
Product Width
3 in
Product Weight
0.93 lb
Warranty
1 year
Certifications
UL Listed CSA Certified
Catalog Notes
HACR rated
Circuit breaker type
BAB
Mounting Method
Bolt-on
Number of poles
Three-pole
Terminals
Ring or spade lug
Type
Quicklag industrial thermal-magnetic circuit breaker
Amperage Rating
15 A
Interrupt rating
10 kAIC
Trip Type
Non-interchangeable
Voltage rating
240 V - 240 V
Quantity
32
Special features
50° C Calibration
Feature: Three-pole 15 A thermal magnetic circuit breaker with a 10 kAIC interrupt rating provides robust protection for three-phase loads. Business Impact: Reduces arc energy and nuisance trips, improving line uptime and worker safety in conveyors and motors. Application: Ideal for three-phase control panels in manufacturing lines where reliable protection is essential. Feature: Bolt-on mounting simplifies installation and service, reducing field labor time and hardware requirements. Business Impact: Accelerates panel assembly and maintenance, cutting downtime during upgrades. Application: Suitable for new installs and retrofits in compact industrial spaces. Feature: Ring or spade lug terminals offers flexible termination options. Business Impact: Enables quick, secure wiring changes without specialty connectors, lowering wiring errors. Application: Used in machine enclosures and service panels with diverse wire sizes. Feature: Certifications and ratings (UL Listed, CSA Certified, HACR rated) ensure regulatory compliance and safe operation. Business Impact: Facilitates regulatory acceptance and reduces audit risk, supporting uptime and liability management. Application: Compliance-critical environments including food & beverage, packaging, and material handling. Feature: 50°C calibration support addresses ambient variations, maintaining consistent trip characteristics. Business Impact: Preserves protective performance in hot industrial sites, reducing mis-trips and spare-part costs. Application: Harsh plants with elevated operating temperatures benefit from this stability.
Get a Quick Quote for a Eaton BAB3015HV
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton BAB3015HV?
Enquire Now
FAQs
The BAB3015HV is designed for bolt-on mounting and supports both ring and spade lug terminations. For installation, mount the unit securely to a panel frame, connect three phase conductors using compatible lugs, tighten to torque specs, and verify clean termination to minimize heat rise. This setup reduces wiring errors and simplifies future maintenance.
Key ratings are 15 A nominal current, 10 kAIC interrupt rating, and a 120/240 V operating range. These specs determine the maximum current the breaker can safely carry and the fault current it can interrupt, directly affecting protection selectivity, motor protection for three-phase loads, and compliance with system fault levels.
Yes. The unit is rated for 120/240 V operation with three-pole configurations, making it well-suited for typical automated line feeders, motor starters, and control circuits in industrial settings. Its thermal-magnetic trip curve provides reliable protection against short circuits and overloads while maintaining compatibility with standard panel hardware.
The BAB3015HV is UL Listed and CSA Certified, with HACR-rated capabilities. These certifications confirm adherence to safety and performance standards, supporting regulatory compliance, insurance requirements, and acceptance in regulated industries such as food & beverage, packaging, and general manufacturing.
The device offers reliable protection with low nuisance trips and straightforward installation, reducing downtime and maintenance costs. Its durable construction, compatibility with standard panel components, and compliance certifications help minimize risk during audits and upgrades, delivering long-term operational savings and improved equipment uptime.
