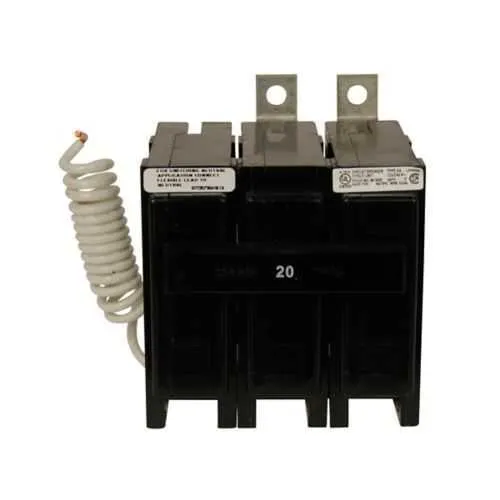

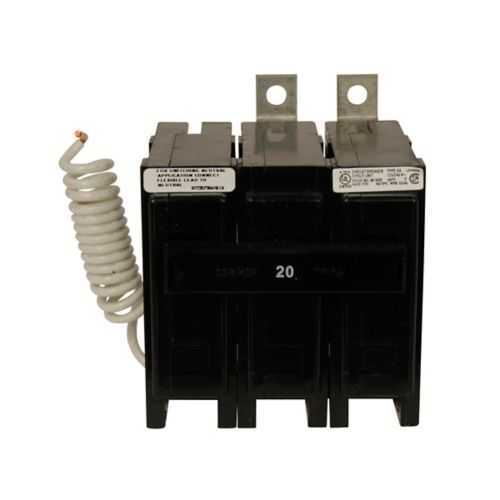

Eaton BAB3020C - Thermal Magnetic Circuit Breaker UL Listed
Part Number: BAB3020C
Quick Summary
The Eaton BAB3020C thermal magnetic circuit breaker protects electrical panels in industrial equipment. Designed for bolt-on installation in service-disconnect and machine-control panels, it delivers reliable overcurrent protection with quick, predictable tripping. Engineers frequently contend with nuisance trips, cross-connecting conductors, and limited voltage compatibility across legacy gear. UL Listed and CSA Certified ensure regulatory compliance in global installations, while HACR rating confirms suitability for HVAC and related equipment. The BAB3020C's three-pole construction, 20 A rating, and 120/240 V capability support safe, scalable protection in panels and equipment racks, reducing downtime and simplifying procurement.
Product Information
Extended Description
BAB3020C Eaton: Eaton BAB thermal magnetic circuit breaker,Quicklag industrial thermal-magnetic circuit breaker,Bolt-on mounting,20 A,3 kAIC,Three-pole,240/415 V,Non-Interchangeable,Q32,BAB
Product Name
Eaton BAB thermal magnetic circuit breaker
Catalog Number
BAB3020C
UPC
786679304334
Product Length/Depth
4 in
Product Height
3.2 in
Product Width
3.6 in
Product Weight
0.9 lb
Warranty
1 year
Certifications
UL Listed CSA Certified
Catalog Notes
HACR rated
Circuit breaker type
BAB
Mounting Method
Bolt-on
Number of poles
Three-pole
Terminals
Ring or spade lug
Type
Quicklag industrial thermal-magnetic circuit breaker
Amperage Rating
20 A
Interrupt rating
10 kAIC
Trip Type
Non-Interchangeable
Voltage rating
120/240 V
Quantity
32
Special features
Switching neutral
Bolt-on mounting simplifies retrofit and panel-space installation, improving wiring density and reducing labor time while delivering secure attachment and consistent protection. The result is faster panel upgrades and fewer field failures during commissioning, with reliable performance in crowded industrial enclosures. The three-pole design supports balanced protection for three-phase circuits, enabling dependable control of motors and feeders in manufacturing lines and packaging equipment, while maintaining alignment with 120/240 V systems common in plant floors. With a 10 kAIC interrupt rating, the BAB3020C handles fault currents typical of medium-duty industrial environments, reducing arc exposure and protecting downstream devices. Its non-interchangeable trip characteristics prevent mismatched protections during maintenance, promoting system integrity and simplifying spares management. Ring or spade lug terminals offer flexible wiring options, easing installation in legacy panels and new builds alike. Built-in HACR rating and UL Listed CSA Certified approvals streamline compliance, improving project approvals and reducing risk during audits. A 1-year warranty adds business value by providing manufacturer support during initial deployment and early operation.
Get a Quick Quote for a Eaton BAB3020C
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton BAB3020C?
Enquire Now
FAQs
The BAB3020C uses bolt-on mounting, which simplifies retrofit work and enables secure attachment in crowded panels. This mounting method reduces installation time, improves mechanical stability, and supports rapid replacement during maintenance, making it ideal for both new builds and upgrade projects in industrial control panels.
The BAB3020C is rated for 20 A with a 10 kAIC interrupt rating, suitable for protection of multi-conductor 120/240 V circuits and three-phase motor feeders. Use it in panel boards and MCCs where overcurrent protection must tolerate normal operating currents while providing fast fault clearance to minimize equipment damage.
Yes, BAB3020C is a three-pole device designed for three-phase protection. It supports a voltage rating of 120/240 V, making it compatible with common industrial electrical systems and motor control circuits found in manufacturing lines and process plants.
The BAB3020C carries UL Listed and CSA Certified markings and is HACR rated, indicating suitability for HVAC equipment as well as general industrial applications. These certifications help smooth regulatory approvals and facilitate safe operation in global installations.
The device accepts ring or spade lug terminals, offering flexible wiring options for various conductor sizes and panel configurations. When installing, ensure correct torque on terminals, verify the three-pole arrangement matches the panel design, and confirm the device remains non-interchangeable to preserve specified protection characteristics.
