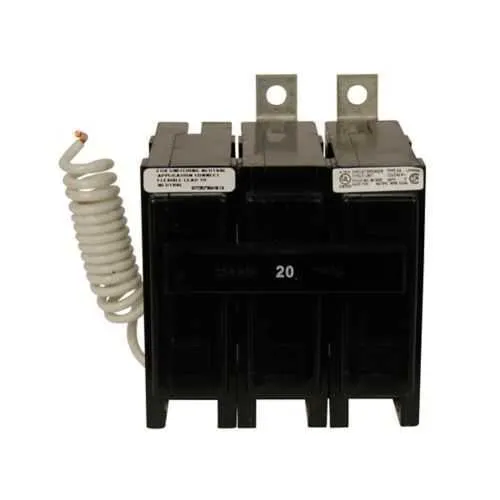

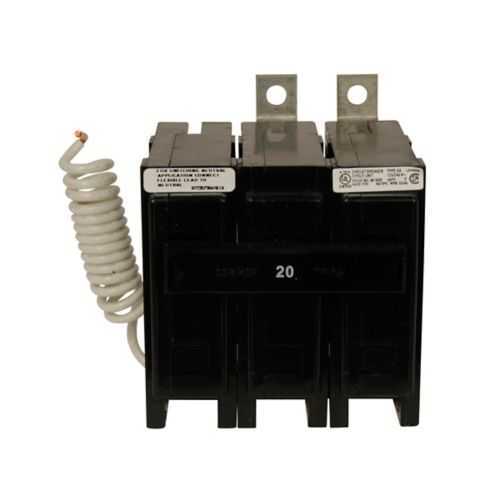

Eaton BAB3020E Thermal Magnetic Breaker - CSA UL Listed
Part Number: BAB3020E
Quick Summary
Eaton BAB3020E is a thermal magnetic circuit breaker designed for industrial power distribution panels and equipment protection. Many control panels suffer nuisance trips and hard-to-access protective devices that slow maintenance and increase downtime. CSA Certified, UL Listed, and HACR rated, this device meets key safety and motor-control requirements, helping you stay in compliance across manufacturing, process, and facility environments. The 20 A, 3 kAIC breaker supports 240/415 V systems while offering reliable protection with non-interchangeable trip units. With bolt-on mounting and a compact three-pole footprint, it accelerates retrofit projects and reduces panel space needs, delivering improved installation efficiency and lower total cost of ownership for industrial electrical protection. It integrates with standard Eaton protection schemes, offering familiar wiring and faster commissioning for OEMs and maintenance teams.
Product Information
Extended Description
BAB3020E Eaton: Eaton BAB thermal magnetic circuit breaker,Quicklag industrial thermal-magnetic circuit breaker,Bolt-on mounting,20 A,10 kAIC,Three-pole,240 V,Non-Interchangeable,BAB
Product Name
Eaton BAB thermal magnetic circuit breaker
Catalog Number
BAB3020E
UPC
786679377703
Product Length/Depth
3 in
Product Height
2 in
Product Width
3 in
Product Weight
0.8 lb
Warranty
1 year
Certifications
CSA Certified UL Listed
Catalog Notes
HACR rated
Circuit breaker type
BAB
Mounting Method
Bolt-on
Number of poles
Three-pole
Type
Quicklag industrial thermal-magnetic circuit breaker
Amperage Rating
20 A
Interrupt rating
3 kAIC
Trip Type
Non-Interchangeable
Voltage rating
240/415V
Quantity
32
Special features
Bolt-on mounting
Bolt-on mounting simplifies field installation and reduces labor time during panel upgrades. The BAB3020E's bolt-on design aligns with standard enclosures, enabling quick retrofits without requiring special hardware or rewiring. In industrial settings where downtime matters, fast, secure mounting translates to lower installation costs and faster time-to-protect critical loads. With a three-pole configuration and a 20 A rating, this breaker provides reliable protection for multi-phase circuits at 240/415 V. The compact 3 in by 3 in footprint fits tight panel spaces and aligns with common DIN rail and bolt-on panel configurations, supporting modular protection across motor drives and control circuits while keeping wiring neat. Quicklag thermal-magnetic operation delivers precise overcurrent and short-circuit protection with a single device, and the trip type is non-interchangeable to ensure consistent protection performance across assemblies. This helps avoid accidental replacement mismatches during maintenance and simplifies documentation. The 3 kAIC interrupt rating protects against high-energy faults, reducing equipment damage and downtime in demanding industrial environments. HACR rating supports motor control applications, aligning with NEC guidelines for heat-producing equipment. CSA Certified and UL Listed certifications provide confidence for code compliance and supplier qualification.
Get a Quick Quote for a Eaton BAB3020E
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton BAB3020E?
Enquire Now
FAQs
Yes. The BAB3020E is designed for bolt-on mounting in compatible Eaton panel assemblies. It is a three-pole 20 A device with a 3 kAIC interrupt rating and a 240/415 V rating, making it suitable for multi-phase industrial circuits. Verify enclosure dimensions and mounting provisions to ensure a clean, code-compliant retrofit.
The device provides 20 A continuous rating, 3 kAIC interrupt capability, and operates at 240/415 V. The thermal-magnetic trip curve offers coordinated protection for motors and general loads, while the non-interchangeable trip type avoids mismatched protection. This combination supports reliable overload protection, rapid fault clearing, and improved system uptime.
Yes. Its three-pole configuration, HACR rating, and 20 A protection make it appropriate for motor control centers and panel boards in industrial facilities. Bolt-on mounting streamlines retrofits, and the 3 kAIC rating helps safeguard against short-circuit energy. Always verify panel manufacturer recommendations and ensure proper bus bar alignment.
The BAB3020E is CSA Certified and UL Listed, with HACR rating for motor control applications. These certifications support compliance with safety and electrical codes, facilitate supplier qualification, and provide confidence in protective performance across industrial environments.
The unit’s robust construction, high interrupt rating, and compliance certifications reduce downtime and maintenance complexity. Its bolt-on mounting lowers installation labor, and the compact footprint eases retrofits in dense panel spaces. Over time, this translates to lower ownership costs and faster, repeatable protection for critical loads.
