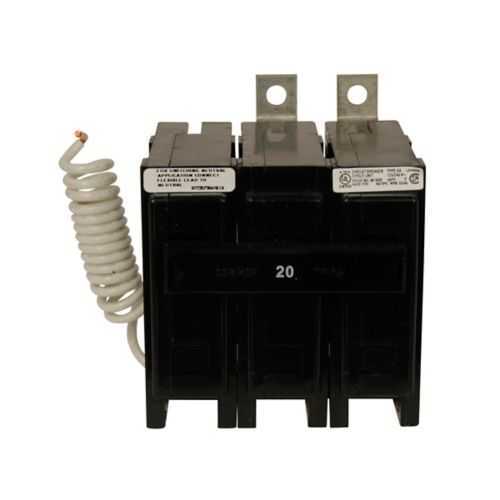

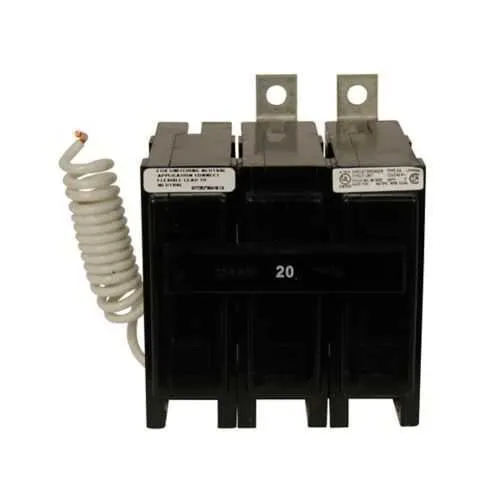

Eaton BAB3020HS1 Thermal Magnetic Circuit Breaker - UL
Part Number: BAB3020HS1
Quick Summary
The Eaton BAB3020HS1 thermal magnetic circuit breaker protects three-pole DC/AC circuits in industrial control panels. Engineers often face nuisance trips, retrofit challenges, and downtime when selecting reliable protection. UL Listed and CSA Certified with HACR rating provide compliance, safety, and long-term reliability. This 20 A, 240 V unit simplifies protection of motor loads and control circuits, helping maintenance teams reduce downtime. Its bolt-on mounting and compact footprint fit standard panels, while the 24/48 V DC shunt trip enables remote control and fast isolation during faults. In practice, this translates to fewer false trips, easier compliance documentation, and faster commissioning in busy automation environments.
Product Information
Extended Description
BAB3020HS1 Eaton: Quicklag Industrial Thermal-Magnetic Circuit Breaker, Three-pole, 24,48V/dc shunt trip, 20A, 10 kAIC, 240V, Non-Interchangeable
Product Name
Eaton BAB thermal magnetic circuit breaker
Catalog Number
BAB3020HS1
UPC
786679377741
Product Length/Depth
5 in
Product Height
1 in
Product Width
3 in
Product Weight
0.5 lb
Warranty
1 year
Certifications
UL Listed CSA Certified
Catalog Notes
HACR rated
Circuit breaker type
BAB
Mounting Method
Bolt-on
Number of poles
Three-pole
Type
Thermal magnetic circuit breakers
Amperage Rating
20 A
Interrupt rating
10 kAIC
Trip Type
Non-Interchangeable
Voltage rating
240 V - 240 V
Quantity
32
Special features
24,48V/dc shunt trip
Feature: Three-pole bolt-on mounting simplifies physical installation and reduces wiring errors. Business Impact: Speeds up panel assembly and minimizes field mis-wiring, lowering installation labor costs. Application: Ideal for control panels and motor circuits in packaging lines, conveyors, and machine enclosures. Feature: 24/48 V DC shunt trip support enables remote tripping on demand. Business Impact: Enhances safety coordination and reduces response time during fault conditions. Application: Emergency isolation in automated systems and safety interlocks with centralized trip control. Feature: 10 kAIC interrupt rating at 240 V provides robust short-circuit protection. Business Impact: Protects feeders and equipment from high-energy faults, reducing damage and downtime. Application: Power distribution rails and motor feeders in industrial plants. Feature: 20 A amperage rating and 240 V voltage class align with common industrial loads. Business Impact: Matches typical motor and control circuit requirements, optimizing protection without nuisance trips. Application: Machine control panels and automation racks.Feature: HACR rated with UL Listed and CSA Certified credentials. Business Impact: Streamlines regulatory approvals and demonstrates compliance for commercial and industrial environments. Application: Buildings, facilities, and process environments requiring verified standards. Feature: Compact 5 in L × 3 in W × 1 in H footprint and 0.5 lb weight. Business Impact: Improves panel density and simplifies retrofit projects. Application: Small control enclosures and retrofit installations where space is at a premium.
Get a Quick Quote for a Eaton BAB3020HS1
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton BAB3020HS1?
Enquire Now
FAQs
BAB3020HS1 uses a bolt-on mounting method and a three-pole configuration, with footprints of 5 in length, 3 in width, and 1 in height. It weighs 0.5 lb and is designed to mount into standard electrical panels, simplifying alignment of conductors and reducing torque variance during installation. This minimizes assembly time and wiring mistakes in dense panel layouts.
The device is rated for 20 A at 240 V with a 10 kAIC interrupt rating, providing robust protection against overloads and short circuits. Its non-interchangeable trip type ensures consistent protective behavior, while the 24/48 V DC shunt trip enables remote protection coordination. These specs align with typical motor loads and control circuits in industrial environments.
Yes. The BAB3020HS1 includes a 24/48 V DC shunt trip feature, enabling remote tripping and integration with safety interlock systems. This capability is particularly beneficial for automated line isolation, machine safety interlocks, and coordinated shutdowns in complex control architectures.
The device is UL Listed and CSA Certified, and it carries HACR rating notes. These certifications demonstrate compliance with recognized safety standards, facilitate regulatory approvals for commercial and industrial installations, and support safer operation in environments requiring strict electrical protection and control.
With a 1-year warranty and solid, field-proven thermal-magnetic technology, maintenance intervals are predictable. The unit’s reliability reduces nuisance trips and downtime, lowering total cost of ownership. Its compact footprint and bolt-on mounting also simplify future panel expansions, contributing to faster ROI through reduced labor and maintenance costs.
