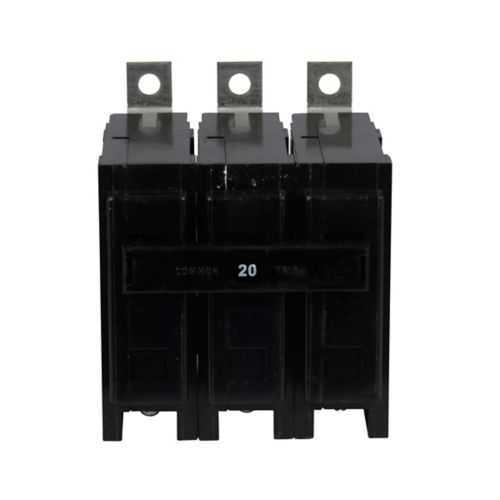

Eaton BAB3020HT Thermal Magnetic Circuit Breaker - UL Listed
Part Number: BAB3020HT
Quick Summary
Eaton BAB3020HT thermal magnetic circuit breaker protects industrial control circuits and power panels with reliable trip protection. In tight panels, nuisance trips and difficult bolt-on installations slow projects and raise maintenance costs. UL Listed and CSA Certified, HACR rated, and designed for 50°C environments help ensure compliance, availability, and long service life. With a 20 A rating at 240 V and three-pole bolt-on construction, it delivers compact, scalable protection while simplifying wiring and commissioning. This device is well-suited for motor control centers, conveyors, and HVAC controls, offering dependable protection with straightforward deployment. Choosing the BAB3020HT aligns with industry best practices and reduces total cost of ownership over the equipment lifecycle.
Product Information
Extended Description
BAB3020HT Eaton: Eaton BAB thermal magnetic circuit breaker,Quicklag industrial thermal-magnetic circuit breaker,Bolt-on mounting, 50° C Calibration,20 A,10 kAIC,Three-pole,240 V,Non-Interchangeable,Q32,BAB
Product Name
Eaton BAB thermal magnetic circuit breaker
Catalog Number
BAB3020HT
UPC
782114266045
Product Length/Depth
3.9 in
Product Height
4.8 in
Product Width
3.1 in
Product Weight
0.95 lb
Warranty
1 year
Certifications
UL Listed CSA Certified
Catalog Notes
HACR rated
Circuit breaker type
BAB
Mounting Method
Bolt-on
Number of poles
Three-pole
Terminals
Ring or spade lug
Type
Quicklag industrial thermal-magnetic circuit breaker
Amperage Rating
20 A
Interrupt rating
10 kAIC
Trip Type
Non-Interchangeable
Voltage rating
240 V - 240 V
Quantity
32
Special features
Bolt-on mounting
Bolt-on mounting enables fast, secure installation in panel assemblies, reducing labor time and mechanical complexity while improving reliability in crowded control panels. This translates into faster commissioning and easier field updates for growing automation lines, particularly in food & beverage, packaging, and process industries. The three-pole design provides synchronized protection for three-phase motors and loads, ensuring balanced protection across phases and minimizing nuisance faults in pump and compressor circuits. With a 10 kAIC interrupt rating, the breaker offers robust short-circuit protection, lowering arc energy exposure and protecting downstream equipment in high-demand applications. The 50°C calibration capability ensures stable trip characteristics in warm environments common to industrial plants, HVAC rooms, and outdoor enclosures, preserving selectivity and safety margins. UL Listed and CSA Certified, along with HACR rating, reinforce compliance for commercial and industrial installations while simplifying regulatory acceptance. The ring or spade lug terminals give wiring flexibility across a range of conductor sizes, enabling quick field termination and reducing wiring errors. The Quicklag industrial design supports consistent replacement and service procedures, improving maintenance predictability and spare parts planning. Non-Interchangeable trip mechanisms simplify device cataloging and lifecycle management, avoiding cross-trip issues in multi-breaker panels. Overall, the BAB3020HT delivers a compact, dependable protection device that supports faster installation, reliable operation, and long-term maintenance efficiency in demanding environments.
Get a Quick Quote for a Eaton BAB3020HT
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton BAB3020HT?
Enquire Now
FAQs
The BAB3020HT uses bolt-on mounting for secure, quick installation in standard electrical enclosures. Terminals are rated for ring or spade lug connections, offering flexibility for a range of conductor sizes and field wiring practices. This combination simplifies wiring layouts and reduces installation time in control panels and distribution boxes.
It is a three-pole, 20 A breaker rated for 240 V with a 10 kAIC interrupt capacity. The device operates with a thermal-magnetic trip mechanism and features non-interchangeable trip units, ensuring consistent protection across panels and simplifying lifecycle management in motor and load circuits.
Yes. The three-pole design, HACR rating, and 240 V/20 A specification make it suitable for motor control centers, HVAC systems, and other equipment with three-phase loads. UL Listed and CSA Certified status further support compliance in these application spaces, while the Quicklag form factor aids in rapid deployment.
The BAB3020HT is UL Listed and CSA Certified, with HACR rating for HVAC, heating, and refrigeration environments. These certifications support industry compliance and safe operation in a wide range of industrial and commercial installations, reducing qualification time for projects and audits.
With a robust 10 kAIC interrupt rating and solid build, maintenance needs are minimized due to durable construction and reliable trip performance. The 1-year warranty plus easy bolt-on installation reduces downtime during replacements, lowers labor costs, and improves overall uptime for critical lines in factories and plants.
