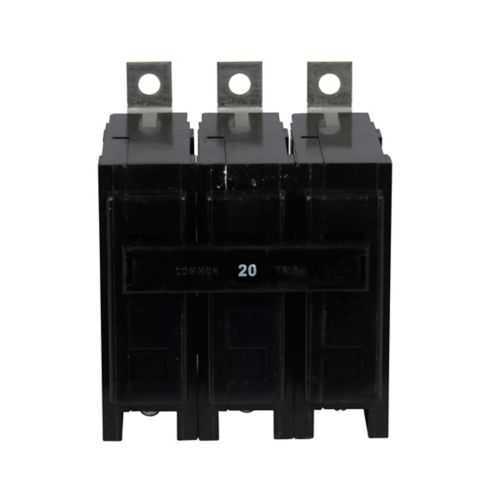

Eaton BAB3020HV Circuit Breaker - HACR rated Certified
Part Number: BAB3020HV
Quick Summary
The Eaton BAB3020HV thermal magnetic circuit breaker protects industrial control panels with reliable shutdowns. A common challenge in harsh facilities is nuisance trips and inrush currents that disrupt production and extend downtime. This device is CSA Certified, UL Listed, and HACR rated, providing trusted motor-load protection and compliant performance in demanding environments. With bolt-on mounting, three-pole protection, and a 120/240 V rating, it integrates smoothly into standard panels while delivering consistent protection. By aligning with industry standards and offering robust thermal-magnetic protection, it supports uptime, safety, and long-term operating cost reduction in critical automation applications.
Product Information
Extended Description
BAB3020HV Eaton: Eaton BAB thermal magnetic circuit breaker,Quicklag industrial thermal-magnetic circuit breaker,Switching neutral,25 A,10 kAIC,Three-pole,120/240 V,Non-Interchangeable,Q32,BAB
Product Name
Eaton BAB thermal magnetic circuit breaker
Catalog Number
BAB3020HV
UPC
786679842300
Product Length/Depth
3.8 in
Product Height
4.9 in
Product Width
3.2 in
Product Weight
1 lb
Warranty
1 year
Certifications
CSA Certified UL Listed
Catalog Notes
HACR rated
Circuit breaker type
BAB
Mounting Method
Bolt-on
Number of poles
Three-pole
Type
Quicklag industrial thermal-magnetic circuit breaker
Amperage Rating
20 A
Interrupt rating
10 kAIC
Trip Type
Non-Interchangeable
Voltage rating
240 V - 240 V
Quantity
32
Special features
Bolt-on mounting50° C Calibration
Feature → Business Impact → Application: The BAB3020HV uses Quicklag industrial thermal-magnetic technology to deliver fast, predictable trip characteristics, reducing downtime and equipment damage in fault conditions. This leads to measurable improvements in machine availability and reduced maintenance costs for production lines, robotics cells, and material handling systems. The 20 A rating with a 10 kAIC interrupt capability supports safe isolation of moderate-load motor circuits used in conveyors and pump setups, while 120/240 V operation covers a wide range of panel infrastructures. The three-pole, bolt-on design simplifies installation in new or retrofit panels, enabling faster commissioning and safer neutrals switching in complex electrical architectures. Compatibility with CSA and UL standards ensures procurement teams meet supplier requirements and shorten compliance review cycles.
