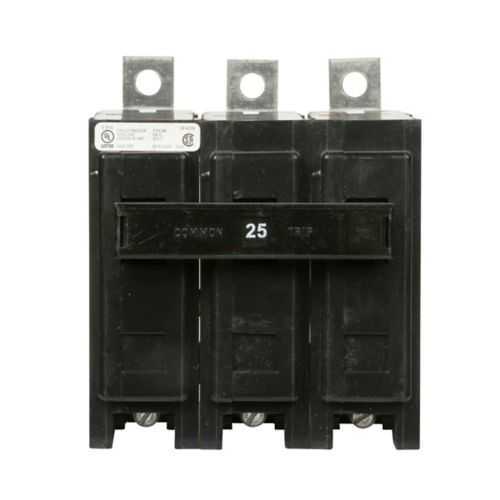

Eaton BAB3025H Thermal Magnetic Circuit Breaker - UL Listed
Part Number: BAB3025H
Quick Summary
Eaton BAB3025H thermal magnetic circuit breaker protects industrial power circuits in panels. It delivers reliable overcurrent protection for 25 A loads in 240 V systems, reducing nuisance trips that trigger costly downtime. Nuisance trips and downtime are costly in production environments; this unit minimizes interruptions with precise thermal-magnetic coordination. Certified UL Listed, CSA Certified, and HACR rated, it meets common safety and efficiency standards across industries. Bolt-on mounting and a three-pole design enable quick, secure installations in control panels and motor drives. This combination supports easier maintenance and scalable protection across panel boards for motors, conveyors, and process equipment.
Product Information
Extended Description
BAB3025H Eaton: Eaton BAB thermal magnetic circuit breaker, Quicklag Industrial, 25A, 10 kAIC, Bolt-on mounting, Three-pole, Non-Interchangeable, 240V
Product Name
Eaton BAB thermal magnetic circuit breaker
Catalog Number
BAB3025H
UPC
786679303252
Product Length/Depth
3.5 in
Product Height
3 in
Product Width
3.2 in
Product Weight
0.9 lb
Certifications
UL Listed CSA Certified
Catalog Notes
HACR rated
Circuit breaker type
BAB
Number of poles
Three-pole
Type
Quicklag industrial thermal-magnetic circuit breaker
Amperage Rating
25 A
Interrupt rating
10 kAIC
Trip Type
Non-Interchangeable
Voltage rating
240 V - 240 V
Special features
Bolt-on mounting
Three-pole design provides robust three-phase protection for motors and conveyors, reducing the risk of phase-to-phase faults that can damage equipment. Business impact includes fewer unexpected outages and longer asset life, making it ideal for manufacturing lines and material handling systems. Application-wise, it's well suited for 3-phase motor drives in industrial controls where reliable trip performance is critical. Bolt-on mounting simplifies field installation, shortening commissioning time and allowing rapid upgrades in existing panels without extensive rewiring. This translates to lower labor costs and faster project timelines for panel expansions and new builds. The thermal-magnetic trip mechanism delivers fast, selective fault interruption, improving uptime and reducing collateral damage to adjacent equipment. In practice, this supports compliant protection schemes for fan motors, pumps, and HVAC drives. With a compact footprint, the BAB3025H frees panel space and enables cleaner wiring layouts in control cabinets. The 25 A rating with a 10 kAIC interrupt capacity covers typical commercial and light industrial loads, delivering dependable protection with minimal nuisance trips. By combining UL Listed, CSA Certified, and HACR rated credentials, it aligns with global safety standards, easing procurement and supplier audits. For installations requiring bolt-on convenience and quick lag mounting, this breaker offers a reliable, cost-effective upgrade path for standard protection in electrical distribution panels.
Get a Quick Quote for a Eaton BAB3025H
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton BAB3025H?
Enquire Now
FAQs
The BAB3025H is a three-pole, bolt-on mounting breaker designed for 3-phase industrial panels. It fits standard distribution boards and motor control centers, simplifying field retrofits. With Quicklag industrial design and a 240 V rating, it ensures secure attachment and reliable protection for motors, conveyors, and process equipment while minimizing installation time and wiring complexity.
This breaker provides a 25 A amperage rating with a 240 V voltage rating and a 10 kAIC interrupt rating. It is non-interchangeable, which ensures consistent coordination within your protection scheme. Designed for three-pole configurations, it protects against both overload and short-circuit conditions in demanding industrial environments.
The BAB3025H is UL Listed and CSA Certified, with HACR-rated catalog notes. These certifications confirm adherence to recognized safety and performance standards, supporting compliance with electrical codes and procurement requirements in many regions. HACR rating indicates suitability for motor branch-circuit protection, further aligning with energy efficiency and safety objectives.
Ensure proper bolt-on mounting torque per manufacturer guidelines to maintain solid electrical contact and avoid loose connections. Verify 240 V phase connections match your panel wiring, and keep the ambient temperature within spec to prevent nuisance trips. Regular inspection of the bus bars and mounting hardware is advised to sustain reliable interrupt performance over the service life.
Ideal for motor drives, conveyors, pumps, and process equipment protection in manufacturing lines, food and beverage processing, and material handling. The 25 A, 10 kAIC, 240 V rating supports efficient protection of standard industrial loads, while bolt-on mounting and compact dimensions ease panel integration and reduce installation costs.
