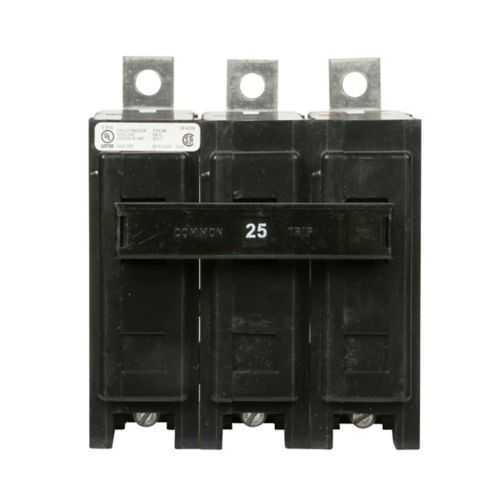

Eaton BAB3025HS Thermal-Magnetic Circuit Breaker - UL Listed
Part Number: BAB3025HS
Quick Summary
Eaton BAB3025HS thermal-magnetic circuit breaker protects industrial power panels and motor circuits. Choosing the wrong protective device can lead to nuisance trips, downtime, and higher maintenance costs. UL Listed and CSA Certified, with HACR rating, provide regulatory confidence and motor protection in demanding environments. This three-pole bolt-on unit offers 25 A at 240 V with a 10 kAIC interrupt rating, plus 120/208/240 V shunt trip for remote control. In practice, it helps engineers meet NEC requirements, reduce panel downtime, and simplify procurement across large industrial plants. Compact dimensions and a 1-year warranty support rapid replacements and predictable lifecycle costs.
Product Information
Extended Description
BAB3025HS Eaton: Eaton Quicklag Industrial Thermal-Magnetic Circuit Breaker, Three-pole, 120V, 208V, 240V shunt trip, 25A, 10 kAIC, 240V, Non-Interchangeable, Bolt-on mounting
Product Name
Eaton BAB thermal magnetic circuit breaker
Catalog Number
BAB3025HS
UPC
786679377826
Product Length/Depth
5 in
Product Height
1 in
Product Width
3 in
Product Weight
0.5 lb
Warranty
1 year
Certifications
UL Listed CSA Certified
Catalog Notes
HACR rated
Circuit breaker type
BAB
Mounting Method
Bolt-on
Number of poles
Three-pole
Type
Thermal magnetic circuit breakers
Amperage Rating
25 A
Interrupt rating
10 kAIC
Trip Type
Non-Interchangeable
Voltage rating
240 V - 240 V
Quantity
32
Special features
120V, 208V, 240V shunt trip
Three-pole construction provides true three-phase protection for motors and power circuits, reducing unbalance risks and nuisance trips. Business impact: enhanced reliability in manufacturing lines and fewer unscheduled outages; Application: control panels with three-phase loads. The 25 A rating at 240 V paired with a 10 kAIC interrupt capacity ensures a robust margin against high fault currents, improving equipment uptime and safety in distribution feeders. Business impact: minimized fault damage and streamlined protection coordination; Application: industrial distribution panels and motor control centers. Shunt-trip capability (120/208/240 V) enables remote isolation, improving safety and reclamation time during maintenance or emergency events. Business impact: faster response times and reduced risk to personnel; Application: automated safety interlocks and remote shutdown schemes. Bolt-on mounting simplifies retrofit and field installation, saving time and reducing labor costs during panel upgrades. HACR rated with UL Listed and CSA Certified construction supports regulatory compliance across motor-driven processes. Business impact: faster approvals and reduced commissioning risk; Application: NEC-compliant industrial environments. Compact 5 in Ă— 3 in Ă— 1 in footprint and 0.5 lb weight optimize panel density, improving overall enclosure efficiency and field serviceability.
Get a Quick Quote for a Eaton BAB3025HS
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton BAB3025HS?
Enquire Now
FAQs
The BAB3025HS uses bolt-on mounting, a common choice for retrofit and new panel builds. Its compact footprint (5 in x 3 in x 1 in) fits standard electrical enclosures and protects three-phase loads without requiring special adapters. It’s compatible with typical control panels and motor-distribution layouts used in industrial environments.
A 25 A rating provides precise overcurrent protection for motor and control circuits, while the 10 kAIC interrupt rating ensures the breaker can safely interrupt high fault currents common in industrial systems. This combination reduces nuisance trips and collateral damage during faults, improving system availability and equipment longevity.
Yes. The device is HACR rated and UL Listed with CSA certification, which aligns with motor protection requirements and regulatory standards. Its three-pole construction and protective features are well-suited for industrial environments where motors and mechanical loads are prevalent.
The BAB3025HS is UL Listed and CSA Certified, with HACR rating noted in catalog. These certifications support NEC compliance, installer acceptance, and easier procurement across regulated facilities. Having multiple certifications reduces vetting time during audits and speeds panel commissioning.
With a 1-year warranty and robust thermal-magnetic protection, maintenance intervals are straightforward, typically limited to periodic visual checks and load verification. ROI benefits come from reduced downtime, longer motor life, and simplified spares management due to standardized bolt-on installation and widely available Eaton replacement parts.
