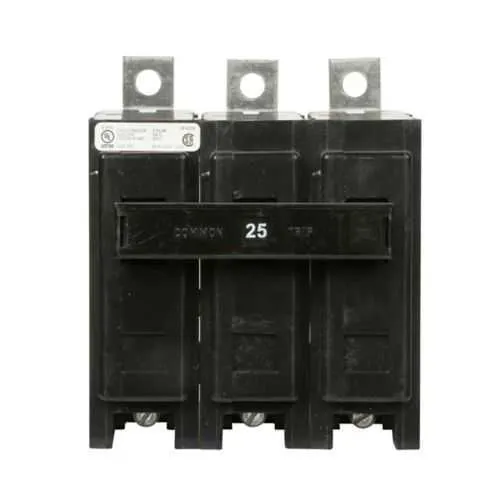

Eaton BAB3025HS1 Thermal Magnetic Breaker - UL Listed
Part Number: BAB3025HS1
Quick Summary
The Eaton BAB3025HS1 thermal magnetic circuit breaker protects critical circuits with reliable interrupt capability in industrial panels and control systems. This device balances fast fault response with minimized nuisance trips, a common pain point in demanding environments. It carries UL Listed and CSA Certified recognition, with HACR rated catalog notes that support motor and equipment protection. By integrating a 24/48 Vdc shunt trip option and a 25 A rating, it delivers precise, compliant protection while enabling streamlined maintenance and scalable panel design for manufacturing and processing facilities.
Product Information
Extended Description
BAB3025HS1 Eaton: Quicklag Industrial Thermal-Magnetic Circuit Breaker, Three-pole, 24,48V/dc shunt trip, 25A, 10 kAIC, 240V, Non-Interchangeable
Product Name
Eaton BAB thermal magnetic circuit breaker
Catalog Number
BAB3025HS1
UPC
786679377840
Product Length/Depth
5 in
Product Height
1 in
Product Width
3 in
Product Weight
0.5 lb
Warranty
1 year
Certifications
UL Listed CSA Certified
Catalog Notes
HACR rated
Circuit breaker type
BAB
Mounting Method
Bolt-on
Number of poles
Three-pole
Type
Thermal magnetic circuit breakers
Amperage Rating
25 A
Interrupt rating
10 kAIC
Trip Type
Non-Interchangeable
Voltage rating
240 V - 240 V
Quantity
32
Special features
24,48V/dc shunt trip
Feature → Business Impact → Application: Three-pole bolt-on mounting simplifies panel installation, reduces commissioning time, and improves field serviceability in compact control enclosures, making it ideal for machine panels and distributed power racks. Application: Industrial machines and panels where space is at a premium and reliability is critical. Feature → Business Impact → Application: 25 A rating with a 10 kAIC interrupt capacity provides robust fault clearance, minimizing arc energy and potential collateral damage during faults. Application: Heavy equipment and conveyors where fault currents can spike. Feature → Business Impact → Application: 24/48 Vdc shunt trip enables remote or automated disconnection for safety interlocks and emergency stop logic. Application: Integrated safety in automated lines and remote monitoring setups. Feature → Business Impact → Application: UL Listed and CSA Certified with HACR rating assures regulatory compliance and motor circuit suitability, reducing audit findings and accelerating approvals. Application: General purpose industrial installations and motor-driven systems. Feature → Business Impact → Application: Non‑interchangeable trip type guarantees correct installation in specified panels, avoiding mismatched protection and warranty concerns. Application: Standardized protection in multi-panel architectures. Feature → Business Impact → Application: Compact dimensions and light 0.5 lb weight support ease of handling and space planning in tight electrical rooms. Application: OEM panels and modular enclosures where weight and footprint matter.
Get a Quick Quote for a Eaton BAB3025HS1
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton BAB3025HS1?
Enquire Now
FAQs
Yes, the BAB3025HS1 uses three-pole bolt-on mounting designed for standard industrial panels. This simplifies installation and servicing in tight spaces. Always verify mounting hole patterns and torque specifications from the Eaton datasheet to ensure proper seating and continued protection.
The device is 25 A with a 10 kAIC interrupt rating, suitable for up to 240 V. It features a non-interchangeable trip, and includes a 24/48 Vdc shunt trip option for remote or automatic disconnection in safety circuits. These specs support precise protection for motor and distribution loads.
Yes, the catalog notes indicate HACR rating for motor and general purpose protection. It is UL Listed and CSA Certified, ensuring compliance with applicable safety and performance standards for industrial electrical installations.
Ideal for industrial control panels, machine tools, conveyors, and general power distribution in manufacturing environments. Its three-pole configuration and 24/48 Vdc shunt trip make it suitable where remote safety interlocks and motor circuits require reliable protection and fast fault clearance.
With a 1-year warranty and robust UL CSA certifications, long-term maintenance is minimal. Its non-interchangeable trip type reduces configuration risk, while the 25 A rating and 10 kAIC capacity help minimize downstream damage costs by efficiently clearing faults and extending panel life.
