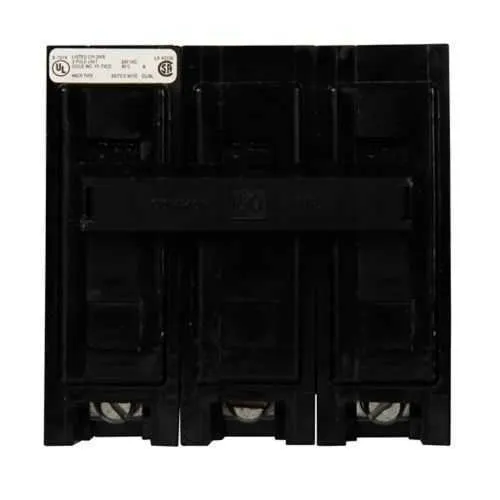

Eaton BAB3060H Thermal Magnetic Circuit Breaker - UL Listed
Part Number: BAB3060H
Quick Summary
Eaton BAB3060H thermal magnetic circuit breaker protects 240 V three-phase distribution panels in industrial facilities. Engineers often battle nuisance trips, cramped enclosures, and maintenance challenges in control panels. The device carries UL Listed and CSA Certified marks with HACR rating, helping meet wiring-code and safety requirements for commercial and industrial installations. With a 60 A rating and 10 kAIC interrupt capacity, it delivers reliable protection, while bolt-on mounting and a compact three-pole, four-wire design streamline retrofits and new-panel installs. Designed for quick integration, its modest footprint, at 3.8 in depth, 4.7 in height, and 3.2 in width, minimizes enclosure space and wiring complexity.
Product Information
Extended Description
BAB3060H Eaton: Eaton BAB thermal magnetic circuit breaker,Quicklag industrial thermal-magnetic circuit breaker,60 A,10 kAIC,Three-pole,240 V,Interchangeable,BAB,Distribution panels 240V (Three-phase, four-wire maximum),Four-wire,Three-phase
Product Name
Eaton BAB thermal magnetic circuit breaker
Catalog Number
BAB3060H
UPC
786679303603
Product Length/Depth
3.8 in
Product Height
4.7 in
Product Width
3.2 in
Product Weight
0.95 lb
Warranty
1 year
Certifications
UL Listed CSA Certified
Catalog Notes
HACR rated
Circuit breaker type
BAB
Number of poles
Three-pole
Number of wires
4
Type
Quicklag industrial thermal-magnetic circuit breaker
Amperage Rating
60 A
Interrupt rating
10 kAIC
Trip Type
Non-Interchangeable
Voltage rating
240 V - 240 V
Special features
Bolt-on mounting
Used with
Distribution panels 240 V (Three-phase, four-wire maximum)
60 A amperage rating with a 10 kAIC interrupt capacity ensures reliable short-circuit protection in 240 V three-phase systems, reducing damage to motors, drives, and feeders. The thermal-magnetic trip mechanism provides both overload protection and fast short-circuit interruption, aligning with standard protective coordination in industrial control. The BAB3060H is a three-pole, four-wire device with bolt-on mounting, delivering straightforward installations in distribution panels. Its compact 3.8 in length, 4.7 in height, and 3.2 in width help maximize panel density while simplifying wiring and clearance considerations in confined spaces. Quicklag industrial thermal-magnetic technology offers coordinated protection for motor and load circuits, minimizing nuisance trips while meeting typical startup curves for equipment in manufacturing lines. This performance supports energy efficiency programs by avoiding unnecessary power interruptions and reducing wear on contacts. Certification and safety are built in: UL Listed and CSA Certified with HACR rating, ensuring compliance with major codes and standards for commercial and industrial electrical installations. Compatibility and installation advantages include bolt-on mounting, three-pole operation, and 240 V supply suitability, making retrofits predictable and panel designs more robust. Notably, this non-interchangeable design is tailored to Eaton’s form-factor and trip characteristics, providing reliable integration within compatible control panels and distribution systems.
Get a Quick Quote for a Eaton BAB3060H
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton BAB3060H?
Enquire Now
FAQs
The BAB3060H is designed for 240 VAC three-phase, four-wire distribution panels. It features a three-pole, four-wire configuration with bolt-on mounting, aligning with standard Eaton-compatible control panels and distribution enclosures to simplify retrofits and new installations.
Key specs include a 60 A amperage rating, 10 kAIC interrupt capacity, 240 V voltage rating, three-pole operation, and four-wire configuration. It also uses a quicklag thermal-magnetic trip mechanism, and is UL Listed with CSA Certification and HACR rating to support code-compliant protection in industrial settings.
Yes. The BAB3060H is HACR rated, which means it’s suitable for protection in heating, air conditioning, and refrigerating equipment circuits. This rating helps meet relevant electrical codes and improves safety and reliability in commercial and industrial installations.
The BAB3060H is UL Listed and CSA Certified, with HACR rating noted in catalog information. These certifications validate adherence to recognized safety and performance standards, aiding compliance in regulated industrial and commercial environments.
Since the BAB3060H is a non-interchangeable, bolt-on, three-pole breaker rated for 60 A and 240 V, plan for standard lifecycle replacement and periodic inspection of mounting, wiring connections, and terminal integrity. Its 10 kAIC interrupt rating provides strong fault protection, but regular torque checks and enclosure cleanliness help sustain reliability in tough industrial environments.
