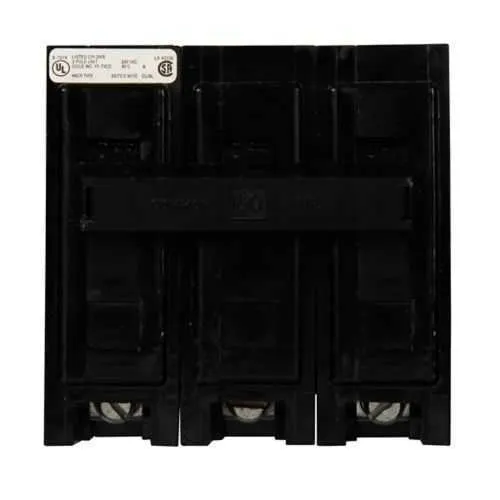

Eaton BAB3060HI Thermal Magnetic Circuit Breaker - UL Listed
Part Number: BAB3060HI
Quick Summary
Eaton BAB3060HI thermal magnetic circuit breaker protects 240 V three-phase distribution panels by delivering reliable overcurrent protection. When nuisance trips or code noncompliance threaten uptime, the right breaker minimizes unplanned downtime and warranty risk. UL Listed and HACR Rated certifications support safe operation in industrial spaces, while the three-pole, 60 A rating matches common 240 V feeders. Built for distribution panels and motor loads, this device helps engineers simplify protection schemes, improve coordination, and reduce spare-part complexity across facilities.
Product Information
Extended Description
BAB3060HI Eaton: Circuit Breaker, BAB, Used with Distribution panels 240V Three-phase, Four-wire maximum, 60A amperage rating, Three-pole, 240V voltage rating
Product Name
Eaton BAB thermal magnetic circuit breaker
Catalog Number
BAB3060HI
UPC
782114313176
Product Length/Depth
2.563 in
Product Height
3 in
Product Width
3 in
Product Weight
0.95 lb
Warranty
1 year
Compliances
HACR Rated
Certifications
UL Listed
Circuit breaker type
BAB
Number of poles
Three-pole
Number of wires
4
Type
Quicklag industrial thermal-magnetic circuit breaker
Amperage Rating
60 A
Interrupt rating
10 kAIC
Phase
Three-phase
Trip Type
T196
Voltage rating
240 V - 240 V
Used with
Distribution panels 240 V (Three-phase, four-wire maximum)
Circuit Protection, Miniature Circuit Breakers and Supplementary Protectors, Volume 4, Tab 1
Circuit Breakers Explained
Eaton Specification Sheet - BAB3060HI
Feature: 60 A, three-pole, 240 V rating with a 10 kAIC interrupt capability. Business Impact: Protects feeders and downstream equipment while tolerating high fault currents typical of industrial environments. Application: Ideal for 240 V three-phase distribution panels and motor circuits in manufacturing plants. Feature: Thermal-magnetic trip mechanism with T196 trip type. Business Impact: Provides selective, predictable tripping to minimize nuisance faults and prevent unnecessary process interruptions. Application: Suitable for mixed-load panels combining motors, drives, and controls. Feature: Quicklag industrial design. Business Impact: Delivers faster coordination and reduces arc energy during faults, improving system reliability and safety. Application: Motor control centers and equipment rooms with tight protection timing requirements. Feature: 4-wire, three-pole configuration. Business Impact: Simplifies wiring and neutral handling, reducing installation errors and panel rework. Application: Standard distribution boards in industrial facilities with four-wire systems. Feature: HACR rated and UL Listed certifications. Business Impact: Ensures code compliance and safe operation across HVAC, process, and general electrical installations, easing audits. Application: Universal integration in commercial and industrial protection schemes. Feature: Compact weight and footprint (0.95 lb, 3 x 3 in footprint). Business Impact: Saves panel space and supports denser electrical layouts, lowering enclosure costs. Application: Space-constrained panels in machine centers and control cabinets.
Get a Quick Quote for a Eaton BAB3060HI
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton BAB3060HI?
Enquire Now
FAQs
Install the BAB3060HI by mounting it in a compatible 3-pole, four-wire distribution panel. Connect the four conductors per your panel’s wiring diagram, ensuring secure lugs and proper torque. Verify voltage rating, phase alignment, and pickup settings, then perform a functional test to confirm correct trip behavior under fault conditions.
The BAB3060HI is a three-pole, 60 A device with a 240 V rating and a 10 kAIC interrupt rating. It employs a thermal-magnetic trip mechanism (Trip Type T196) for coordinated protection, balancing fast response with nuisance-trip suppression in mixed-load panels.
Yes. The device is HACR Rated and UL Listed, which supports safe operation in HVAC and motor control environments. Its three-pole 60 A design with four-wire capability makes it well suited for distribution panels powering motors and related equipment.
The BAB3060HI carries UL Listed certification and HACR rating. UL Listed confirms compliance with safety standards, while HACR rating ensures suitability for heating, air conditioning, and refrigeration equipment, simplifying regulatory approvals and audits for industrial installations.
With a robust 10 kAIC interrupt rating, the BAB3060HI provides durable short-circuit protection, reducing unplanned downtime. The 1-year warranty and proven Quicklag mechanism contribute to lower maintenance costs, fewer field replacements, and improved system availability in mission-critical environments.
