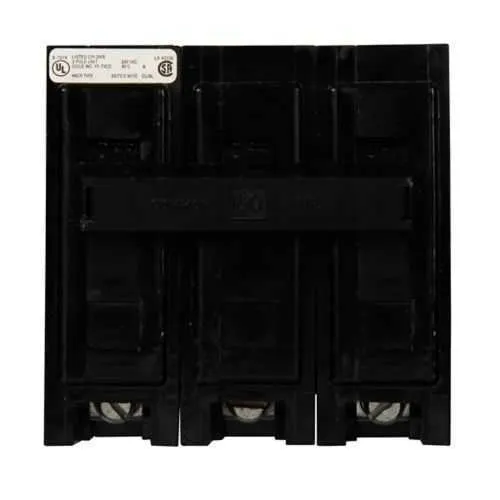

Eaton BAB3060HS1 Thermal Magnetic Circuit Breaker - HACR
Part Number: BAB3060HS1
Quick Summary
The Eaton BAB3060HS1 thermal magnetic circuit breaker protects industrial power circuits with precise overcurrent protection. In demanding environments, nuisance trips and unpredictable fault isolation can disrupt production; this unit delivers reliable coordination and fast, predictable trips to minimize downtime. UL Listed and CSA Certified ensure regulatory compliance, while HACR rating supports motor and heating equipment protection in commercial and industrial settings. Its compact three-pole bolt-on design provides scalable, easy-to-install protection for control panels and machine power distribution, helping you streamline wiring, reduce panel depth, and improve overall system reliability.
Product Information
Extended Description
BAB3060HS1 Eaton: Quicklag Industrial Thermal-Magnetic Circuit Breaker, Three-pole, 24,48V/dc shunt trip, 60A, 10 kAIC, 240V, Non-Interchangeable
Product Name
Eaton BAB thermal magnetic circuit breaker
Catalog Number
BAB3060HS1
UPC
786679378403
Product Length/Depth
5 in
Product Height
1 in
Product Width
3 in
Product Weight
0.5 lb
Warranty
1 year
Certifications
UL Listed CSA Certified
Catalog Notes
HACR rated
Circuit breaker type
BAB
Mounting Method
Bolt-on
Number of poles
Three-pole
Type
Thermal magnetic circuit breakers
Amperage Rating
60 A
Interrupt rating
10 kAIC
Trip Type
Non-Interchangeable
Voltage rating
240 V - 240 V
Quantity
32
Special features
24,48V/dc shunt trip
Feature: Three-pole thermal-magnetic design provides robust protection for multi-phase circuits. Business Impact: Enhances fault isolation while reducing nuisance trips, enabling safer and more reliable equipment operation. Application: Control panels and machine power distribution where multi-phase protection is essential. Feature: 60 A amperage rating with 10 kAIC interrupt capacity at 240 V. Business Impact: Capable of handling high fault currents without damage, extending equipment life and reducing downtime after faults. Application: Industrial power circuits in manufacturing lines and process controls. Feature: 24,48 VDC shunt trip option. Business Impact: Enables remote tripping for safety interlocks and safe shutdown sequences, improving worker safety and compliance. Application: Safety-critical control circuits and interlocked machinery. Feature: Bolt-on mounting with compact dimensions (5 in length, 3 in width, 1 in height). Business Impact: Simplifies installation and field servicing, lowers panel footprint, and speeds commissioning. Application: Retrofit and new panel builds requiring space-efficient protection. Feature: Certifications and warranty (UL Listed, CSA Certified, HACR rated; 1 year). Business Impact: Simplifies procurement with guaranteed regulatory compliance and post-sale support, reducing total cost of ownership. Application: Any industrial control panel needing certified, traceable protection.
Get a Quick Quote for a Eaton BAB3060HS1
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton BAB3060HS1?
Enquire Now
FAQs
The BAB3060HS1 is designed for bolt-on mounting, which simplifies installation and replacement in standard industrial panels. Ensure the mounting hardware aligns with the panel’s mounting holes and that the enclosure can accommodate the unit’s 5 in L x 3 in W x 1 in H footprint. Verify panel space for adequate clearance and consider wiring management for the 60 A load and 10 kAIC interrupt capability.
The BAB3060HS1 provides a 60 A nominal amperage rating, 10 kAIC interrupt capacity, and a 240 V rating, with a 24/48 V DC shunt trip option. These ratings mean the breaker is sized for moderate to higher current circuits, can interrupt substantial fault currents safely, and supports remote shutdown via DC logic signals for enhanced safety in automated systems.
Yes, the BAB3060HS1 includes a 24/48 V DC shunt trip option, enabling remote tripping for safety interlocks and controlled shutdowns in DC control circuits. Note that the device is rated for 240 V, so ensure the DC shunt trip wiring and control logic are configured to operate within the specified trip thresholds and safety standards.
The BAB3060HS1 is UL Listed and CSA Certified, with HACR rating suitability for motor and heating equipment protections. These certifications verify compliance with global electrical standards, facilitate installation in regulated facilities, and help with regulatory documentation and insurance requirements.
With a robust 1-year warranty, UL CSA certification, and a high 10 kAIC interrupt rating, the BAB3060HS1 reduces unplanned downtime and service calls, contributing to lower maintenance costs. Its compact bolt-on design accelerates installation and spare-part stocking, improving project ROI and system reliability over time.
