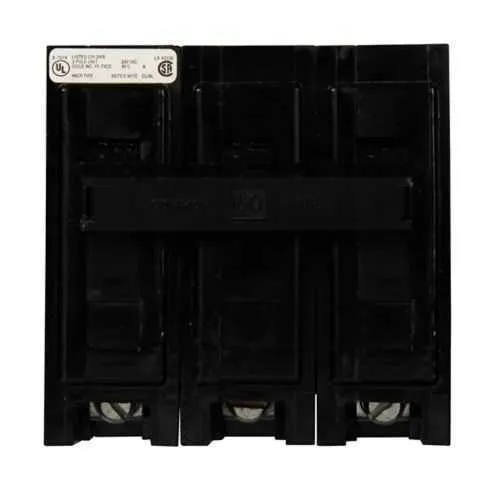

Eaton BAB3060HV Thermal Magnetic Circuit Breaker - 10 kAIC
Part Number: BAB3060HV
Quick Summary
Eaton BAB3060HV thermal magnetic circuit breaker protects industrial panel feeders with reliable overcurrent protection. In practice, engineers face mounting constraints, precise trip characteristics, and strict regulatory compliance in modern automation lines. UL Listed and CSA Certified, with HACR rating, support safe operation and energy-efficient control. This bolt-on device delivers a 60 A rating at 240 V, a 10 kAIC interrupt capability, and a compact three-pole package, helping reduce panel space, simplify installation, and minimize downtime in heavy-industrial environments. With its Quicklag technology and rugged construction, it provides consistent protection while easing procurement through standardization across panel racks.
Product Information
Extended Description
BAB3060HV Eaton: Eaton BAB thermal magnetic circuit breaker,Quicklag industrial thermal-magnetic circuit breaker,Bolt-on mounting, Non-automatic,60 A,10 kAIC,Three-pole,240 V,Non-Interchangeable,Q32,BAB
Product Name
Eaton BAB thermal magnetic circuit breaker
Catalog Number
BAB3060HV
UPC
786679842423
Product Length/Depth
3.8 in
Product Height
4.7 in
Product Width
3.2 in
Product Weight
0.95 lb
Warranty
1 year
Certifications
UL Listed CSA Certified
Catalog Notes
HACR rated
Circuit breaker type
BAB
Mounting Method
Bolt-on
Number of poles
Three-pole
Type
Quicklag industrial thermal-magnetic circuit breaker
Amperage Rating
60 A
Interrupt rating
10 kAIC
Trip Type
Non-Interchangeable
Voltage rating
240 V - 240 V
Quantity
32
Special features
Bolt-on mounting50° C Calibration
Feature: Bolt-on mounting enables quick, secure installation in both new and retrofit panels. Business Impact: Reduces field wiring time and torque-related inconsistencies, improving long-term reliability. Application: Ideal for control panels in manufacturing and process lines that demand fast, repeatable field assembly. Paragraph 2: Feature: 60 A amperage rating with a 10 kAIC interrupt rating. Business Impact: Provides robust short-circuit protection for demanding industrial loads while keeping nuisance trips low. Application: Suitable for branch circuits feeding motors and equipment in automated lines. Paragraph 3: Feature: 240 V operation and three-pole configuration. Business Impact: Supports typical three-phase power distribution with effective phasing protection. Application: Used in motor control centers and panel boards in factories. Paragraph 4: Feature: Compliance and certifications. Business Impact: Facilitates regulatory compliance and reduces procurement risk by aligning with plant standards. Application: Fits industrial environments requiring recognized safety endorsements. Paragraph 5: Feature: Non-Interchangeable trip units and Quicklag performance. Business Impact: Ensures consistent protection across stock and minimizes spare-part complexity. Application: Beneficial in standardized installations where identical protection is needed. Paragraph 6: Feature: Compact dimensions and 1-year warranty with 50°C calibration note. Business Impact: Space-saving footprint helps enclosure design; standard warranty reduces ownership costs; calibration note aids accuracy in controlled environments. Application: Suitable for retrofit or new-build panels in compact, high-density installations.
Get a Quick Quote for a Eaton BAB3060HV
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton BAB3060HV?
Enquire Now
FAQs
The BAB3060HV uses bolt-on mounting designed for secure attachment to standard industrial panels. Its three-pole configuration supports three-phase systems, and the compact footprint simplifies enclosure planning. Typical installation steps include mounting to a sturdy rail or panel surface, wiring per the 240 V circuit rating, and verifying torque specifications to ensure reliable contact pressure.
Key specs include a 60 A amperage rating, a 10 kAIC interrupt rating, and a 240 V operating range. It is a three-pole device with a non-interchangeable trip unit, UL Listed and CSA Certified, and HACR rated, making it suitable for motor controls and industrial power distribution.
No. The BAB3060HV is specified as non-interchangeable, which helps maintain consistent protection across panels and reduces spare parts variability. For projects requiring different trip characteristics, consider alternative Eaton models that match your coordination and protection strategy.
The device is UL Listed and CSA Certified, and it carries an HACR rating for service motor control applications. These certifications support regulatory compliance in industrial facilities and simplify procurement for safety-conscious panels.
Refer to Eaton’s specification sheet for BAB3060HV and the ‘Circuit Breakers Explained’ multimedia resource. The datasheet provides detailed electrical ratings, wiring diagrams, and installation guidelines, while the video offers practical explanations for field wiring and protection strategies.
