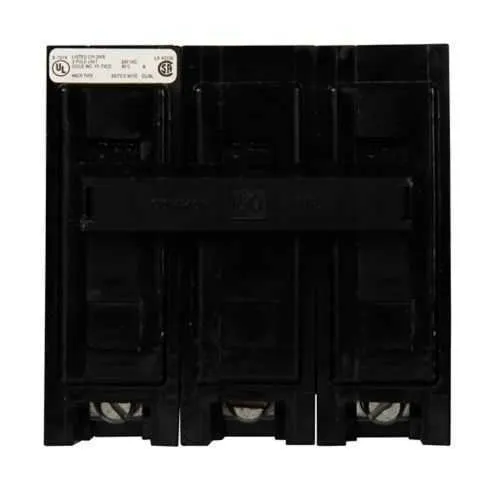

Eaton BAB3070HI Thermal Magnetic Circuit Breaker - UL Listed
Part Number: BAB3070HI
Quick Summary
The BAB3070HI is an Eaton thermal-magnetic circuit breaker for three-phase distribution panels. Engineers often wrestle with finding a device that tolerates high fault currents, fits in tight spaces, and offers reliable shunt-trip options. This unit is UL Listed and CSA Certified and HACR rated, ensuring compliance across industrial environments. With bolt-on mounting and Quicklag fast response, it speeds installation, reduces wiring errors, and strengthens uptime for motor loads and distribution circuits. Designed for modern panelboards, it integrates smoothly with Eaton protection ecosystems while supporting favorable total cost of ownership.
Product Information
Extended Description
BAB3070HI Eaton: Eaton BAB thermal magnetic circuit breaker,Quicklag industrial thermal-magnetic circuit breaker,Bolt-on mounting,70 A,10 kAIC,Three-pole,240 V,Non-Interchangeable,Q32,BAB,120/208/240 V Shunt trip
Product Name
Eaton BAB thermal magnetic circuit breaker
Catalog Number
BAB3070HI
UPC
782114313190
Product Length/Depth
2.563 in
Product Height
3 in
Product Width
3 in
Product Weight
1.1 lb
Warranty
1 year
Compliances
HACR Rated
Certifications
UL Listed CSA Certified
Catalog Notes
HACR rated
Circuit breaker type
BAB
Number of poles
Three-pole
Number of wires
4
Type
Quicklag industrial thermal-magnetic circuit breaker
Amperage Rating
70 A
Interrupt rating
10 kAIC
Phase
Three-phase
Trip Type
T196
Voltage rating
240 V - 240 V
Quantity
32
Shunt trip
120-240V
Special features
Bolt-on mounting
Used with
Distribution panels 240 V (Three-phase, four-wire maximum)
Circuit Protection, Miniature Circuit Breakers and Supplementary Protectors, Volume 4, Tab 1
Circuit Breakers Explained
Eaton Specification Sheet - BAB3070HI
Feature: Three-pole, 70 A rating and 240 V operation. Business Impact: Delivers robust phase protection for high-load distributions, reducing nuisance trips and protecting motors from short circuits. Application: Suitable for 3-phase, four-wire panel setups in manufacturing plants. Feature: 10 kAIC interrupt rating. Business Impact: Provides a high fault-current withstand capability, minimizing damage during short-circuit events. Application: Essential for heavy equipment and motor control centers. Feature: Quicklag industrial thermal-magnetic technology with bolt-on mounting. Business Impact: Offers fast, reliable protection with easy, fast installation in crowded panels. Application: Ideal where space is constrained and downtime must be minimized. Feature: Shunt trip at 120–240 V and HACR rated. Business Impact: Enables remote shutdown and compliance with energy-management and HVAC loads. Application: Protective strategy for distribution panels serving mixed electrical loads. Feature: UL Listed and CSA Certified; compact dimensions (3 x 3 x 2.563 in) and 1.1 lb. Business Impact: Improves engineering fit, reduces panel size, and simplifies procurement. Application: Ready for integration into standard industrial enclosures while meeting regulatory requirements. Feature: Non-interchangeable design with comprehensive specs (70 A, 240 V, 3-pole). Business Impact: Ensures correct matching with existing protection schemes and predictable replacement cycles. Application: Reduces wrong-part risk in spares and maintenance.
