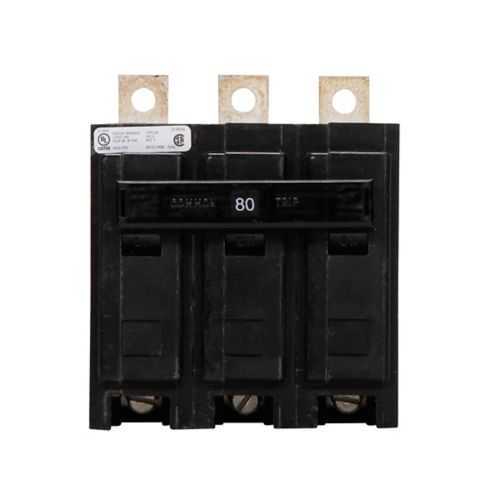

Eaton BAB3080H Thermal Circuit Breaker - UL Listed
Part Number: BAB3080H
Quick Summary
Eaton BAB3080H thermal circuit breaker is designed to protect industrial power circuits with reliable, trip-controlled performance across panelboards and switchgear. It addresses nuisance trips and downtime by delivering precise thermal-magnetic protection that responds quickly to overloads and faults. This device carries UL Listed, CSA Certified, and HACR rating marks, ensuring robust motor and equipment protection in demanding environments. With bolt-on mounting, a three-pole configuration, and 240 V operation, it simplifies installation in compact industrial panels and OEM assemblies. By aligning with standard Eaton accessories and panel designs, it delivers consistent protection while reducing maintenance and inventory complexity.
Product Information
Extended Description
BAB3080H Eaton: Eaton Quicklag Industrial Thermal-Magnetic Circuit Breaker, 80A, BAB type, 10 kAIC, Bolt-on mounting, Three-pole, Non-Interchangeable, 240V
Product Name
Eaton BAB thermal magnetic circuit breaker
Catalog Number
BAB3080H
UPC
786679303801
Product Length/Depth
3.8 in
Product Height
4.7 in
Product Width
3.2 in
Product Weight
1 lb
Warranty
1 year
Certifications
UL Listed CSA Certified
Catalog Notes
HACR rated
Circuit breaker type
BAB
Mounting Method
Bolt-on
Number of poles
Three-pole
Type
Quicklag industrial thermal-magnetic circuit breaker
Amperage Rating
80 A
Interrupt rating
10 kAIC
Trip Type
Non-Interchangeable
Voltage rating
240 V - 240 V
Quantity
32
Special features
Bolt-on mounting
Feature: 80 A amperage rating provides adequate protection for typical 3-phase loads while minimizing nuisance trips and equipment wear. Business Impact: Improved uptime and reduced maintenance costs due to precise overload protection. Application: Industrial panelboards and machine control circuits where consistent thermal protection is needed. Feature: Three-pole bolt-on mounting simplifies mechanical installation and ensures a secure, vibration-resistant connection. Business Impact: Faster field installation and reduced panel modification time, lowering labor costs. Application: Main distribution panels and switchgear in manufacturing lines. Feature: 10 kAIC interrupt rating delivers high fault-current capability to safely interrupt severe faults. Business Impact: Enhanced protection for upstream breakers and downstream equipment, reducing cascade failures. Application: Heavy industry, motor feeders, and power distribution networks. Feature: 240 V voltage rating ensures compatibility with standard industrial three-phase systems. Business Impact: Broad applicability across common electrical infrastructures, minimizing the need for custom solutions. Application: OEM equipment, panel assemblies, and control cabinets. Feature: HACR rated and UL Listed/CSA Certified provide proven motor protection compliance and traceability. Business Impact: Compliance with electrical codes and regulatory requirements, lowering audit risk. Application: Motor loads, compressors, and equipment in regulated facilities. Feature: Quicklag thermal-magnetic mechanism combines fast magnetic trip with precise thermal protection. Business Impact: Fast response to surges while avoiding unnecessary trips; extended equipment life. Application: High-inertia motors and demanding industrial controls.
Get a Quick Quote for a Eaton BAB3080H
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton BAB3080H?
Enquire Now
FAQs
The BAB3080H uses bolt-on mounting, designed for a secure mechanical connection in three-pole configurations. This simplifies installation in control panels and switchgear while maintaining vibration resistance in demanding environments. For field upgrades, Bolt-on compatibility with standard panels reduces retrofit time and minimizes modification costs.
Key ratings include an 80 A continuous amperage rating, 10 kAIC interrupt capacity, and a 240 V operating range. These specs indicate suitable protection for typical three-phase loads, the ability to safely interrupt high fault currents, and compatibility with standard 240 V industrial power systems. Non-interchangeable trip type ensures consistent protective characteristics across similar devices.
This breaker is well suited for panel boards, machine control centers, and switchgear in manufacturing and process environments. Its three-pole design and bolt-on mounting support reliable protection for motors, transformers, and critical loads, reducing downtime and improving overall system reliability in OEM equipment and retrofits.
The BAB3080H is UL Listed and CSA Certified with HACR rating, verifying safety, performance, and motor protection suitability. These certifications simplify compliance with national electrical codes and industry standards, streamline procurement for regulated facilities, and improve maintenance planning with clearly documented approvals.
The BAB3080H includes a 1-year warranty from Eaton, reflecting manufacturer confidence in long-term reliability. For maintenance, consider scheduled inspections of bolt-on connections and trip settings, and keep spare units on hand to minimize downtime during replacements in critical production lines.
