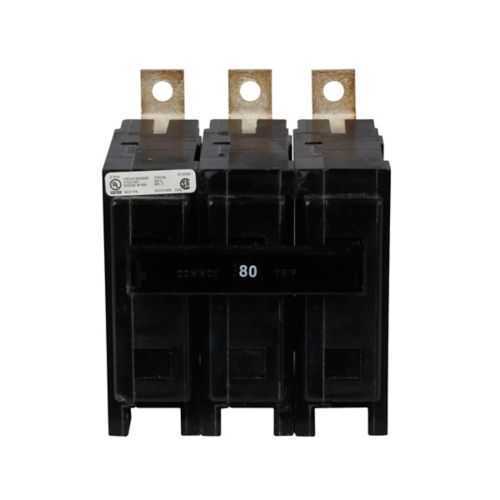

Eaton BAB3080HS Thermal Magnetic Circuit Breaker - UL Listed
Part Number: BAB3080HS
Quick Summary
The Eaton BAB3080HS thermal magnetic circuit breaker protects three-phase power systems in industrial equipment. Engineers face nuisance trips and insufficient protection that drive downtime and maintenance costs. It carries UL Listed and CSA Certified certifications and is HACR rated for HVAC-related loads, supporting safe, compliant installations. Beyond protection, its 80 A rating, 240 V operation, and bolt-on mounting simplify panel design and field retrofits, delivering reliable performance in demanding environments. This combination helps OEMs and panel builders reduce installation time while improving system availability and safety.
Product Information
Extended Description
BAB3080HS Eaton: Eaton BAB thermal magnetic circuit breaker,Quicklag industrial thermal-magnetic circuit breaker,80 A,10 kAIC,Three-pole,240 V,Non-Interchangeable,Q32,BAB,24/48 Vdc Shunt trip
Product Name
Eaton BAB thermal magnetic circuit breaker
Catalog Number
BAB3080HS
UPC
786679509708
Product Length/Depth
4.1 in
Product Height
3.5 in
Product Width
3.6 in
Product Weight
1.29 lb
Warranty
1 year
Certifications
UL Listed CSA Certified
Catalog Notes
HACR rated
Circuit breaker type
BAB
Mounting Method
Bolt-on
Number of poles
Three-pole
Type
Quicklag industrial thermal-magnetic circuit breaker
Amperage Rating
80 A
Interrupt rating
10 kAIC
Trip Type
Non-Interchangeable
Voltage rating
240 V - 240 V
Quantity
32
Special features
Bolt-on mounting
Feature: 80 A amperage rating with a 10 kAIC interrupt rating. Business impact: provides reliable short-circuit and overload protection, reducing damage and unplanned downtime in heavy industrial loads. Application: ideal for three-phase feeders in manufacturing lines and power distribution blocks.Feature: Three-pole bolt-on mounting design. Business impact: enables secure, vibration-resistant installation with minimal field modification. Application: bolt-on panels and service cabinets in harsh environments where wiring space is at a premium. Feature: Quicklag industrial thermal-magnetic trip technology. Business impact: improves selectivity and minimizes nuisance trips, boosting uptime and maintenance predictability. Application: protection for motors and other inductive loads in fast-paced manufacturing lines. Feature: Certifications and ratings including UL Listed, CSA Certified, and HACR rated. Business impact: supports regulatory compliance and safe operation across HVAC and electrical installations. Application: OEM assemblies and retrofit projects requiring proven credentials. Feature: Optional 24/48 Vdc shunt trip. Business impact: enables remote tripping for centralized interlocks or safety circuits, enhancing personnel protection. Application: machine safety systems and central control rooms. Feature: Compact footprint and weight (4.1 in L × 3.5 in H × 3.6 in W; 1.29 lb) with a 1-year warranty. Business impact: easy integration into crowded panels and predictable lifecycle costs. Application: OEM panel builds and serviceable installations across industrial facilities.
Get a Quick Quote for a Eaton BAB3080HS
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton BAB3080HS?
Enquire Now
FAQs
Yes. The BAB3080HS is designed for bolt-on mounting, enabling fast, secure installation in three-phase panelboards. Its three-pole construction supports standard 240 V three-phase feeders, reducing wiring complexity and improving panel density. For retrofit projects, the bolt-on method minimizes downtime and simplifies serviceability without sacrificing protection quality.
Key specs include an 80 A amperage rating, 240 V voltage rating, a 10 kAIC interrupt capacity, and a three-pole configuration. It is non-interchangeable with other trip units and uses bolt-on mounting. The unit weighs about 1.29 lb and measures 4.1 in by 3.5 in by 3.6 in, with a 1-year warranty and HACR rating for HVAC-related loads.
Yes. Its 80 A rating and 10 kAIC interrupt capacity suit motor feeders and distribution blocks in industrial panels. The thermal-magnetic trip characteristic provides coordinated protection for motors and related inductive loads, while its bolt-on mounting supports quick integration into existing panel infrastructure with reliable trip performance.
The BAB3080HS is UL Listed and CSA Certified, with HACR rating. These certifications indicate adherence to recognized safety standards in the US and Canada, facilitating regulatory compliance for industrial equipment, panels, and OEM assemblies. This reduces risk during audits and supports safer, standardized installations across facilities.
The BAB3080HS family includes a 24/48 Vdc shunt trip option. Use this feature to enable remote or interlocked tripping for enhanced machine safety and centralized control. It is especially valuable in automated lines and safety interlock applications where rapid disconnection is required from a central control point.
