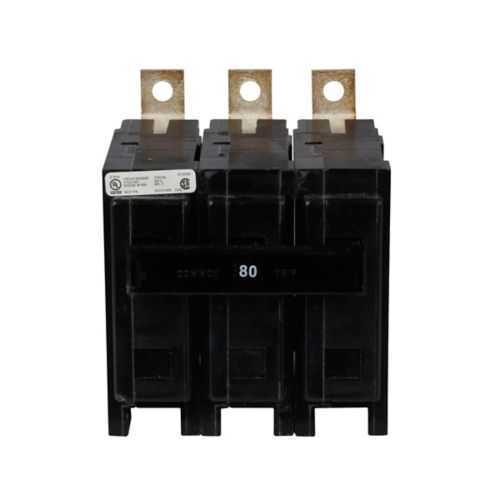

Eaton BAB3080HS1 Breaker Thermal Magnetic - UL Listed
Part Number: BAB3080HS1
Quick Summary
The Eaton BAB3080HS1 Breaker delivers reliable thermal-magnetic protection for three-phase power distribution. With precise trip thresholds, it minimizes nuisance trips and unplanned downtime in demanding environments. This unit is UL Listed and CSA Certified, with HACR-rated performance for HVAC and motor circuits, ensuring compliance across industrial and commercial applications. The 80 A, 240 V rating and 10 kAIC interrupt capability support robust protection in medium-duty feeders, while the 24, 48 V DC shunt trip option enhances safety interlock in control circuits. By combining robust protection with bolt-on mounting and standard three-pole configuration, it improves installation efficiency and reduces ongoing maintenance costs for your electrical protection strategy.
Product Information
Extended Description
BAB3080HS1 Eaton: Quicklag Industrial Thermal-Magnetic Circuit Breaker, Three-pole, 24,48V/dc shunt trip, 80A, 10 kAIC, 240V, Non-Interchangeable
Product Name
Eaton BAB thermal magnetic circuit breaker
Catalog Number
BAB3080HS1
UPC
786679378526
Product Length/Depth
5 in
Product Height
1 in
Product Width
3 in
Product Weight
0.5 lb
Warranty
1 year
Certifications
UL Listed CSA Certified
Catalog Notes
HACR rated
Circuit breaker type
BAB
Mounting Method
Bolt-on
Number of poles
Three-pole
Type
Thermal magnetic circuit breakers
Amperage Rating
80 A
Interrupt rating
10 kAIC
Trip Type
Non-Interchangeable
Voltage rating
240 V - 240 V
Quantity
32
Special features
24,48V/dc shunt trip
Feature: Thermal-magnetic trip technology provides fast, stable protection against both overloads and short circuits. Business impact: Reduces damage to motors and wiring, lowering repair costs and downtime. Application: Ideal for medium-duty feeders in manufacturing and process facilities, where reliable protection and quick reset are essential. Feature: Three-pole, bolt-on mounting simplifies panel integration and minimizes installation time. Business impact: Accelerates commissioning and reduces field labor costs. Application: Suitable for standard distribution panels and equipment racks in industrial plants. Feature: 24/48 VDC shunt trip option enhances safety interlock for control circuits. Business impact: Improves personnel safety and enables remote trip signaling in automated systems. Application: Used in machine controls and safety circuits where DC control power is present. Feature: 80 A rating with 10 kAIC interrupt capacity provides robust protection for typical three-phase loads. Business impact: Supports higher fault current scenarios without sacrificing selectivity. Application: Common in motor starters, conveyors, and HVAC feeders. Feature: UL Listed and CSA Certified with HACR rating ensures compliance and reliability. Business impact: Reduces compliance risk, simplifies procurement, and supports maintenance planning across regulated environments. Application: Suitable for both new builds and upgrades in industrial automation, panel boards, and control panels.
Get a Quick Quote for a Eaton BAB3080HS1
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton BAB3080HS1?
Enquire Now
FAQs
Yes. The BAB3080HS1 is a three-pole, bolt-on thermal-magnetic breaker designed for standard panel boards. It installs quickly in typical electrical enclosures and aligns with common bus configurations, reducing retrofit downtime and ensuring secure mounting in industrial panels.
This breaker has an 80 A amperage rating, 240 V voltage rating, and a 10 kAIC interrupt rating. It uses thermal-magnetic trip technology, with a non-interchangeable trip characteristic, and supports a 24/48 V DC shunt trip option for control-safety interlocks.
Best suited for motor feeders, machine control panels, HVAC power distribution, and general-purpose three-phase protection in industrial environments. Its HACR rating and UL CSA certifications make it appropriate for both new installations and system upgrades in manufacturing and process facilities.
The BAB3080HS1 is UL Listed and CSA Certified, with HACR rating for HVAC circuits. These certifications verify safety and performance to industry standards, simplifying procurement, regulatory compliance, and downstream maintenance across commercial and industrial applications.
The device’s robust build and standard mounting reduce replacement time and spare-parts needs. With reliable protection and reduced nuisance trips, you can expect lower unscheduled downtime, simpler stocking of compatible parts, and a predictable maintenance plan that supports total cost of ownership advantages.
