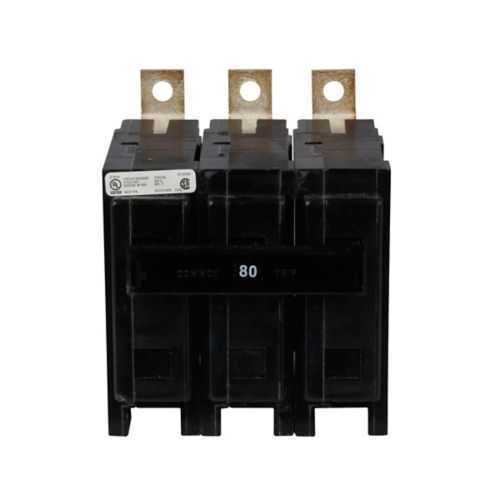

Eaton BAB3080HT Breaker - UL Listed
Part Number: BAB3080HT
Quick Summary
The Eaton BAB3080HT Breaker is a thermal magnetic circuit protector designed for industrial electrical panels and distribution assemblies. It helps address nuisance trips, space constraints, and integration challenges common to rugged plant environments. This unit carries UL Listed and CSA Certified marks and is HACR rated for use with HVAC equipment, refrigeration systems, and other energy-intensive loads. With bolt-on mounting, three-pole configuration, and an 80 A rating at 240 V, it delivers reliable protection while streamlining installation, maintenance, and spares planning for engineering and procurement teams.
Product Information
Extended Description
BAB3080HT Eaton: Eaton BAB thermal magnetic circuit breaker, Quicklag industrial thermal-magnetic circuit breaker,Bolt-on mounting, 50° C Calibration, 80 A, 10 kAIC,Three-pole,240 V,N on-Interchangeable, Q32, BAB
Product Name
Eaton BAB thermal magnetic circuit breaker
Catalog Number
BAB3080HT
UPC
786679001868
Product Length/Depth
6 in
Product Height
12.5 in
Product Width
7.5 in
Product Weight
9 lb
Warranty
1 year
Certifications
UL Listed CSA Certified
Catalog Notes
HACR rated
Circuit breaker type
BAB
Mounting Method
Bolt-on
Number of poles
Three-pole
Terminals
Ring or spade lug
Type
Quicklag industrial thermal-magnetic circuit breaker
Amperage Rating
80 A
Interrupt rating
10 kAIC
Trip Type
Non-Interchangeable
Voltage rating
240 V - 240 V
Quantity
32
Special features
Bolt-on mounting
Three-pole, bolt-on mounting simplifies installation, reduces panel disruption, and supports clean, compact panel layouts for 3-phase feeders. This design translates to faster commissioning and easier future servicing in large electrical rooms or control cabinets, minimizing downtime and labor costs. The 80 A continuous rating with a 10 kAIC interrupt capability provides robust protection for mid-size motor circuits and distribution panels, safeguarding equipment and personnel while maintaining system uptime. With a 240 V rating, this breaker aligns with common industrial power supplies and reduces the need for mid-cycle voltage conversions in plant layouts. HACR rating broadens its applicability to HVAC, refrigeration, and similar equipment, ensuring safer, code-compliant protection. Certifications (UL Listed, CSA Certified) support regulatory compliance and ease of supplier qualification, while the non-interchangeable trip type guarantees specific coordination within your protection scheme. Terminals support ring or spade lug connections, offering flexible wiring options and reliable conductance in demanding environments. Overall, the BAB3080HT combines industry-standard performance with practical field installability for engineers and procurement teams aiming to optimize protection strategy and lifecycle costs.
Get a Quick Quote for a Eaton BAB3080HT
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton BAB3080HT?
Enquire Now
FAQs
The BAB3080HT uses a bolt-on mounting method designed for three-pole industrial breakers. This enables direct attachment to standard electrical panels without special adapters, simplifying installation in new or retrofit projects. When planning, ensure adequate panel depth and mounting space, and verify connector compatibility with ring or spade lug terminations.
The BAB3080HT provides an 80 A continuous rating, 10 kAIC interrupt capacity, and operates at 240 V. It is well suited for three-phase feeders, motor circuits, and panel protection in medium-power industrial applications, delivering reliable protection while supporting compact, cost-efficient panel designs.
Yes, the BAB3080HT is HACR rated, meaning it is suitable for connection to HVAC equipment in accordance with applicable codes. This rating simplifies your protection strategy for heating, ventilation, and refrigeration loads, reducing the need for separate protective devices and improving system safety.
The BAB3080HT is UL Listed and CSA Certified, with a HACR rating. These certifications ensure compliance with major North American safety standards, support regulatory documentation, and facilitate supplier qualification in engineered, built, and run environments.
When installing a 3-pole 240 V breaker, verify panel rating compatibility, ensure proper torque on terminations for ring or spade lug connections, and confirm coordination with upstream protection. The BAB3080HT’s bolt-on mounting and non-interchangeable trip design help maintain intended protection schemes and simplify replacement within existing deployments.
