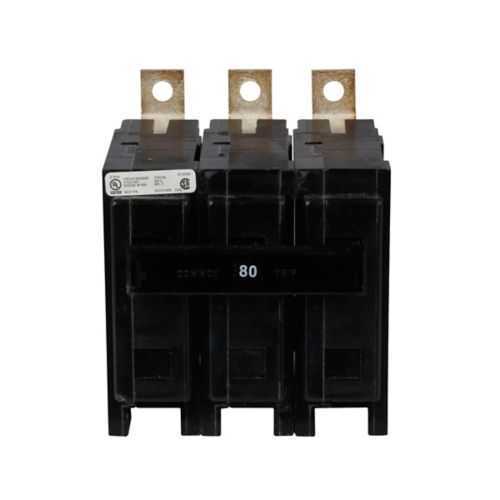

Eaton BAB3100HI Thermal Magnetic Circuit Breaker - HACR Rated
Part Number: BAB3100HI
Quick Summary
The Eaton BAB3100HI thermal magnetic circuit breaker protects three-phase distribution panels in 240 V systems. Choosing a protective device that combines precise thermal-magnetic protection with reliable tripping can reduce nuisance trips and simplify panel design. This HACR rated device is UL Listed and CSA Certified, ensuring compliance across HVAC and general equipment applications. Bolt-on mounting and Quicklag technology streamline installation in demanding industrial environments, while a 100 A rating and a 10 kAIC interrupt rating meet short-circuit and fault-clearing requirements. With 120/240 V shunt trip capability, it supports centralized safety schemes and rapid emergency shutdowns, delivering safer, faster maintenance and predictable operation for robust manufacturing and automation applications.
Product Information
Extended Description
BAB3100HI Eaton: Eaton BAB thermal magnetic circuit breaker,Quicklag industrial thermal-magnetic circuit breaker,Bolt-on mounting,100 A,10 kAIC,Three-pole,240 V,Non-Interchangeable,Q32,BAB,120/208/240 V Shunt trip
Product Name
Eaton BAB thermal magnetic circuit breaker
Catalog Number
BAB3100HI
UPC
782114313237
Product Length/Depth
2.563 in
Product Height
3 in
Product Width
3 in
Product Weight
0.9 lb
Warranty
1 year
Compliances
HACR Rated
Certifications
UL Listed CSA Certified
Catalog Notes
HACR rated
Circuit breaker type
BAB
Number of poles
Three-pole
Number of wires
4
Type
Quicklag industrial thermal-magnetic circuit breaker
Amperage Rating
100 A
Interrupt rating
10 kAIC
Phase
Three-phase
Trip Type
T196
Voltage rating
240 V - 240 V
Quantity
32
Shunt trip
120-240V
Special features
Bolt-on mounting
Used with
Distribution panels 240 V (Three-phase, four-wire maximum)
Circuit Protection, Miniature Circuit Breakers and Supplementary Protectors, Volume 4, Tab 1
Circuit Breakers Explained
Eaton Specification Sheet - BAB3100HI
Quicklag industrial thermal-magnetic mechanism provides precise overcurrent protection. This improves fault selectivity and reduces nuisance trips, translating to higher line uptime and lower maintenance costs. It is ideal for 240 V three-phase distribution panels in manufacturing lines and process equipment. The 100 A amperage rating with a 10 kAIC interrupt rating ensures robust fault clearing for medium-load feeders, while bolt-on mounting simplifies retrofit and field installation in existing panels, reducing installation time and panel downtime. Shunt trip capability (120-240 V) enables remote emergency shutdown, enhancing overall plant safety and compliance. HACR rating and third-party UL Listed and CSA Certified status provide regulatory confidence for HVAC and general industrial applications. The compact footprint (3 in x 3 in) and 0.9 lb weight support scalable panel design with minimal space impact. A 1-year warranty offers peace of mind for maintenance planning and service contracts.
