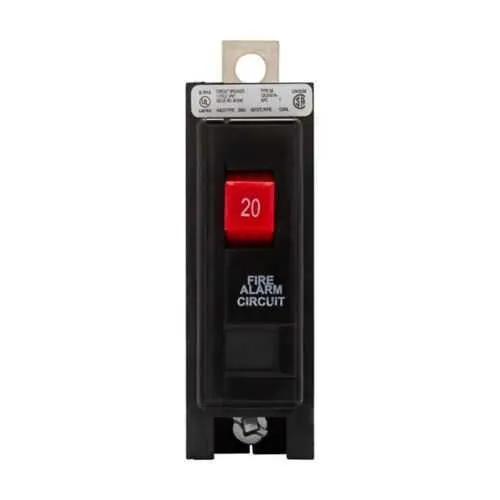

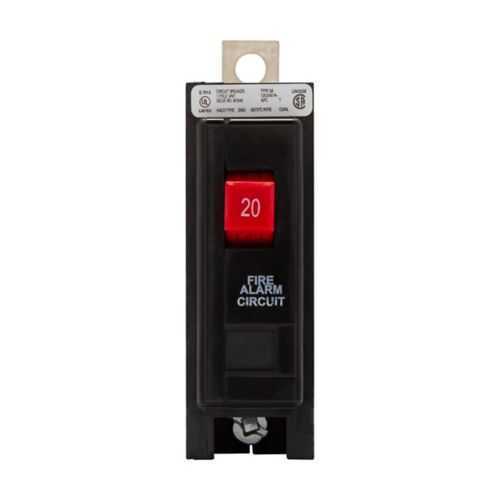

Eaton BABF1020 Thermal Magnetic Circuit Breaker - UL Listed
Part Number: BABF1020
Quick Summary
The Eaton BABF1020 thermal magnetic circuit breaker provides reliable overcurrent protection for 120/240 V panels in industrial and commercial applications. When panel space is tight or replacements are rushed, a mismatched or slow-installing device can trigger costly downtime and safety concerns. UL Listed, HACR rated, and NFPA 72 compliant, this bolt-on unit is designed for safety-critical environments while supporting copper or aluminum wiring. The 1-year warranty and compatibility with standard panels simplify procurement and maintenance, delivering predictable total cost of ownership for electrical protection across the facility.
Product Information
Extended Description
BABF1020 Eaton: Eaton BAB thermal magnetic circuit breaker,Classic replacement circuit breaker,15 A,10 kAIC at 120/240 V,Single-pole,120/240 V,#14-8 AWG Cu/Al,BQL
Product Name
Eaton BAB thermal magnetic circuit breaker
Catalog Number
BABF1020
UPC
786685405063
Product Length/Depth
3.25 in
Product Height
3.5 in
Product Width
0.875 in
Product Weight
0.2 lb
Warranty
1 year
Compliances
NFPA 72 HACR Rated
Certifications
UL Listed
Circuit breaker type
BAB
Mounting Method
Bolt-on
Number of poles
Single-pole
Type
Bolt-on Fire Alarm Circuit Breaker
Wire size
#14-8 AWG Cu/Al
Amperage Rating
20 A
Interrupt rating
10 kAIC
Voltage rating
120/240 V
Feature: Thermal magnetic trip technology delivers fast magnetic response to high fault currents and precise thermal protection for gradual overcurrents. Business Impact: Reduces nuisance trips and protects sensitive equipment, improving uptime in industrial control panels and lighting circuits. Application: Ideal for 120/240 V single-pole circuits in commercial facilities. Feature: 10 kAIC interrupt rating provides robust fault-current protection. Business Impact: Enhances safety for equipment in medium to high fault scenarios, enabling reliable service in data centers and manufacturing lines. Application: Main feeder segments and critical control circuits. Feature: Bolt-on mounting with #14-8 AWG Cu/Al wire compatibility. Business Impact: Simplifies installation, minimizes panel modification, and lowers labor costs during retrofit projects. Application: Retrofit and new panel builds in maintenance-heavy facilities. Feature: UL Listed, HACR rated, NFPA 72 compliant. Business Impact: Ensures regulatory compliance and safer HVAC and fire alarm integration. Application: Fire alarm control panels and building automation systems. Feature: 1-year warranty and compact form factor. Business Impact: Reduces lifecycle risk and supports easy replacement during scheduled maintenance. Application: Routine protection in compact industrial panels.
Get a Quick Quote for a Eaton BABF1020
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton BABF1020?
Enquire Now
FAQs
Install as a bolt-on unit in compatible panels, using #14-8 AWG Cu/Al conductors. Ensure 120/240 V supply and single-pole configuration. Follow panel manufacturer torque specs and verify secure termination for reliable protection.
The BABF1020 is rated for 20 A with a 10 kAIC interrupt rating at 120/240 V. It is a single-pole device designed for bolt-on mounting and copper/aluminum conductors in specified wire sizes.
Yes, the BABF1020 is UL Listed and HACR rated, with NFPA 72 compliance noted in specifications. These certifications support safe operation in HVAC and fire alarm related circuits.
Yes. The device is described as a bolt-on fire alarm circuit breaker, suitable for fire alarm control panels when used with proper wire sizing (#14-8 AWG Cu/Al) and 120/240 V service, providing reliable protection for signaling circuits.
The BABF1020 carries a 1-year warranty. For maintenance, ensure secure terminations, periodic inspection of wiring and mounting integrity, and replacement of the unit at end-of-life or after any fault event to maintain protection.
