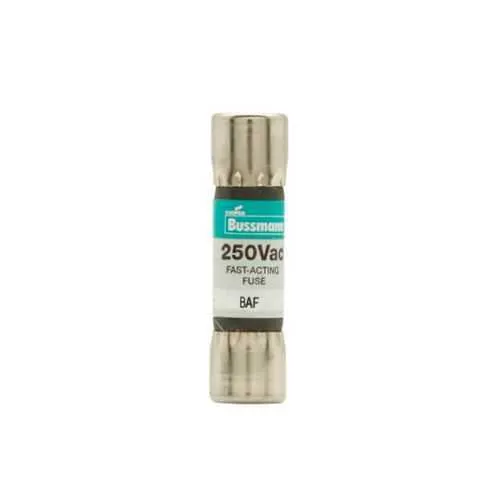

Eaton BAF-1 Bussmann Midget Fuse - CE Marked
Part Number: BAF-1
Quick Summary
The Eaton BAF-1 fuse provides fast-acting overcurrent protection for compact control panels and small enclosures. As engineers seek reliable protection without sacrificing space, this 1 A fuse delivers precise clearing of faults while minimizing nuisance trips. CE Marked compliance and the Bussmann series heritage underscore its safety and compatibility, ensuring easy integration into existing Eaton protection schemes. The ferrule-end configuration, nickel-plated endcaps, and standard packaging support quick installation and durable operation in harsh environments. For procurement teams, the combination of compact footprint and robust performance translates into lower wiring complexity, reduced panel rework, and predictable maintenance cycles—key drivers for cost containment and uptime in industrial automation.
Product Information
Extended Description
BAF-1 Eaton: Eaton Bussmann series BAF fuse, Fast acting, 1 A, Non-indicating, Ferrule end x ferrule end, 35 AIC at 250 Vac, 10 kAIC at 125 Vac, Nickel-plated brass endcaps, Standard, 250 V
Product Name
Eaton Bussmann series BAF fuse
Catalog Number
BAF-1
UPC
051712320016
EAN
5027590449007
Product Length/Depth
0.41 in
Product Height
1.5 in
Product Width
0.41 in
Product Weight
0.25 lb
Warranty
Not Applicable
Compliances
CE Marked
Amperage Rating
1 A
Interrupt rating
35 AIC at 250 Vac 10 kAIC at 125 Vac
Voltage rating
250 V
Material
Nickel-plated brass endcaps
Packaging type
Standard
Connection
Ferrule end x ferrule end
Fuse indicator
Non-indicating
Special features
Silver-plated fuse caps
Bussmann series complete full line catalog no. 1007
Bussmann series Fuseology
Eaton Specification Sheet - BAF-1
BAF-1~BUSS MIDGET FUSE
Datasheet - FNQ-30
Feature → Business Impact → Application: The BAF-1 is a fast-acting 1 A fuse, delivering precise fault clearing to protect sensitive PLC I/O and instrumentation circuits. This reduces nuisance trips while maintaining uptime in control panels. Application: control circuits and instrumentation racks in compact enclosures. Feature → Business Impact → Application: With 35 AIC at 250 VAC and 10 kAIC at 125 VAC, it withstands typical transients and fault currents, enabling reliable protection for small power supplies and panel electronics. Application: small power supplies and panel protection. Feature → Business Impact → Application: Ferrule-end x ferrule-end connections paired with nickel-plated brass endcaps offer durable, corrosion-resistant terminations for field and factory installations. Application: quick, repeatable installations in service centers and on the line. Feature → Business Impact → Application: Non-indicating indicators simplify installation in dense panels, reducing visual clutter and maintenance checks. Application: large-scale panel assemblies where status indication is managed by separate monitoring. Feature → Business Impact → Application: Silver-plated fuse caps provide enhanced conductivity and longevity, lowering contact resistance over time. Application: high-reliability installations in challenging environments. Feature → Business Impact → Application: The standard packaging and compact form factor save panel space and streamline replacements during routine maintenance. Application: retrofits and upgrades in existing Bussmann series installations.
Get a Quick Quote for a Eaton BAF-1
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton BAF-1?
Enquire Now
FAQs
The BAF-1 is a fast-acting 1 A fuse designed for control circuits, instrumentation, and small power supplies in control panels and enclosures. With interrupt ratings of 35 AIC at 250 VAC and 10 kAIC at 125 VAC, it provides quick fault isolation while protecting sensitive electronics from nuisance trips and damage.
Key ratings include amperage 1 A, voltage 250 V, and interrupt ratings of 35 AIC at 250 VAC and 10 kAIC at 125 VAC. The combination supports reliable protection for compact systems, tolerates typical panel transients, and helps maintain system uptime by preventing unnecessary trips. It is suitable for small control panels, instrumentation racks, and minor power supplies.
Yes, the BAF-1 is CE marked, indicating compliance with EU safety requirements. It belongs to the Bussmann series midget fuses and uses ferrule-end connections, enabling straightforward installation in standard Bussmann clip systems and ensuring compatibility with Eaton’s protection offerings.
Ferrule-end fuses require ferrule sizes that match the clip terminals in your panel. Ensure clean, tightened ferrules, inspect nickel-plated brass endcaps for corrosion resistance, and provide adequate clearance around the fuse to avoid heat buildup. The standard packaging simplifies handling and replacement during maintenance.
The BAF-1's fast-acting 1 A protection reduces fault duration and minimizes downtime when faults occur. Its compact 0.41 in by 0.41 in footprint and nickel-plated endcaps save panel space and extend service life, while CE compliance reduces regulatory risk and streamlines auditing.
