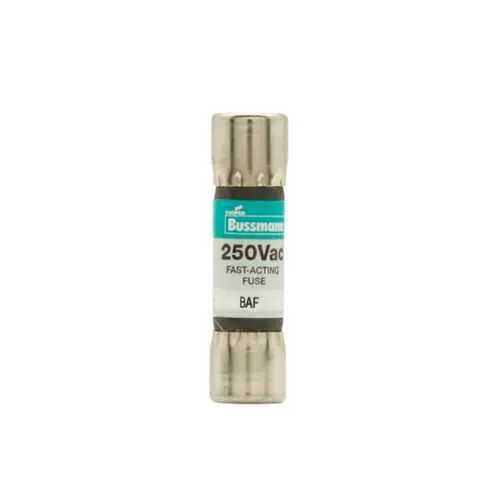

Eaton BAF-1/4 Fuse - 0.25A, 10kAIC @125V CE
Part Number: BAF-1/4
Quick Summary
The Eaton BAF-1/4 fuse is a compact protection device designed to guard low-current circuits in control panels and small electrical assemblies. It helps prevent nuisance trips and protects upstream components from short-circuit damage in automated or panel-mounted systems. This non-indicating ferrule-end fuse is engineered for reliable performance with clear, repeatable interrupt ratings. CE marking confirms compliance with European safety requirements, supporting easy integration into European machinery and compliance workflows. By selecting this standardized Bussmann series fuse, engineers can achieve consistent protection while simplifying stocking, procurement, and maintenance across multiple projects and locations.
Product Information
Extended Description
BAF-1/4 Eaton: Eaton Bussmann series BAF fuse, 0.25 A, Non-indicating, Ferrule end x ferrule end, 35 AIC at 250 Vac, 10 kAIC at 125 Vac, Nickel-plated brass endcaps, Standard, 250 V
Product Name
Eaton Bussmann series BAF fuse
Catalog Number
BAF-1/4
UPC
051712118699
Product Length/Depth
1.5 in
Product Height
0.41 in
Product Width
0.41 in
Product Weight
0.25 lb
Warranty
Not Applicable
Compliances
CE Marked
Amperage Rating
0.25 A
Interrupt rating
10 kAIC at 125 Vac 35 AIC at 250 Vac
Voltage rating
250 V
Material
Nickel-plated brass endcaps
Packaging type
Standard
Connection
Ferrule end x ferrule end
Fuse indicator
Non-indicating
Special features
Silver-plated fuse caps
Bussmann series complete full line catalog no. 1007
Bussmann series complete full line catalog no. 1007
Bussmann series Fuseology
Eaton Specification Sheet - BAF-1/4
Feature → Business Impact → Application: 0.25 A rating provides precise protection for sensitive control circuits, reducing the risk of overcurrent damage without compromising normal operation. The high interrupt rating of 10 kAIC at 125 Vac and 35 AIC at 250 Vac translates to rapid fault clearing and improved system reliability in small electrical enclosures. Application: control panels in machinery, automation modules, and instrumentation cabinets where tight current control is essential. Ferrule end x ferrule end connections simplify installation in pre-terminated harnesses and standard terminations, reducing assembly time and improving contact integrity. Business impact: faster commissioning, lower labor costs, and reduced rework due to secure terminations. Nickel-plated brass endcaps enhance corrosion resistance and long-term durability in industrial environments. Application: harsh or moisture-prone panel areas where longevity matters. Non-indicating fuse indicators minimize visual clutter in dense panel layouts, helping technicians monitor systems without unnecessary disturbance. Business impact: streamlined diagnostics and safer, cleaner maintenance routines. Compliance and standardization: CE marked ensures European compliance, supporting global sourcing and consistent engineering practices. Application: multi-site deployments requiring uniform protection across equipment families.
Get a Quick Quote for a Eaton BAF-1/4
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton BAF-1/4?
Enquire Now
FAQs
The BAF-1/4 fuse is designed for control panels and small electrical assemblies using ferrule-end terminations. Its 0.25 A rating and 250 V capacity make it suitable for protecting low-current circuits in automation modules and instrumentation cabinets, while its ferrule-end connections offer robust, simple installation in standard harnesses.
The BAF-1/4 provides an interrupt rating of 10 kAIC at 125 Vac and 35 AIC at 250 Vac. This means higher fault current capability at the lower voltage improves protection during short-circuit events, while maintaining appropriate protection levels when operated at full 250 V.
The fuse body length is 1.5 in with a width and height of 0.41 in. It uses ferrule end x ferrule end connections and features nickel-plated brass endcaps for durability and reliable contact in industrial environments.
The BAF-1/4 is CE marked, indicating compliance with European safety standards. This helps ensure suitability for European machinery and supports cross-border procurement and installation in compliant systems.
Install using ferrule-terminals to match the device ends, ensuring clean, secure connections. Mount in standard protection panels with good ventilation, and consider the non-indicating nature to reduce panel visual clutter. Verify voltage rating and interrupt characteristics align with system fault-current calculations for reliable protection.
