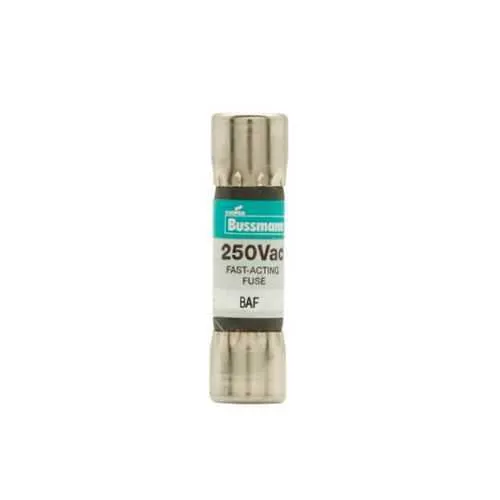

Eaton BAF-10 Fuse - 250V, 200AIC, CE Marked
Part Number: BAF-10
Quick Summary
BAF fuse by Eaton provides fast-acting overcurrent protection for low-voltage circuits in control panels. This compact, non-indicating device helps prevent nuisance trips and equipment damage in space-constrained enclosures. It carries CE marking to confirm compliance with EU safety requirements and supports standard 250 V circuits, making it suitable for a wide range of industrial installations. With a 10 A rating and robust nickel-plated brass endcaps, it offers reliable interruption without sacrificing mounting convenience. The ferrule-end construction simplifies replacement and stock management, while its 1.5 in length fits common Bussmann-style holders. For system integrators and maintenance teams, BAF-10 delivers consistent protection with predictable replacement intervals and straightforward procurement.
Product Information
Extended Description
BAF-10 Eaton: Eaton Bussmann series BAF fuse, Fast acting, 10 A, Non-indicating, Ferrule end x ferrule end, 200 AIC at 250 Vac, 10 kAIC at 125 Vac, Nickel-plated brass endcaps, Standard, 250 V
Product Name
Eaton Bussmann series BAF fuse
Catalog Number
BAF-10
UPC
051712320108
Product Length/Depth
1.5 in
Product Height
0.41 in
Product Width
0.41 in
Product Weight
0.25 lb
Warranty
Not Applicable
Compliances
CE Marked
Amperage Rating
10 A
Interrupt rating
200 AIC at 250 Vac 10 kAIC at 125 Vac
Voltage rating
250 V
Material
Nickel-plated brass endcaps
Packaging type
Standard
Connection
Ferrule end x ferrule end
Fuse indicator
Non-indicating
Special features
Replacement for "F15B" fuses
Bussmann series full line catalog 1007, section 01- low voltage branch circuit fuses
Bussmann series full line catalog 1007, section 01- low voltage branch circuit fuses
Bussmann series Fuseology
Eaton Specification Sheet - BAF-10
BAF-10~BUSS MIDGET FUSE
Datasheet - FNQ-30
Feature → Business Impact → Application: Fast-acting protection minimizes fault energy and short-circuit damage, enabling safer startup and reduced downtime in control panels and machine enclosures. This translates to higher line reliability and lower maintenance costs for end users, particularly in automation lines and packaging equipment where cycle times are critical. Feature → Business Impact → Application: Non-indicating operation keeps cost down and reduces panel clutter, while relying on downstream diagnostics for fault indication. This is ideal for compact control panels and high-density installations where visual indicators are impractical. Feature → Business Impact → Application: High interrupt ratings—200 AIC at 250 Vac and 10 kAIC at 125 Vac—provide robust protection for motors, drives, and power supplies, limiting arc faults and safeguarding downstream components. This suits motor control centers and conveyor systems in heavy industry. Feature → Business Impact → Application: Ferrule-end x ferrule-end connection enables quick, secure replacement with standard ferrule hardware, streamlining service calls and stocking practices in OEMs and panel shops. Feature → Business Impact → Application: Nickel-plated brass endcaps offer corrosion resistance and durability in harsh environments, extending fuse life in dusty or humid factory floors and improving total cost of ownership. Feature → Business Impact → Application: Replacement for F15B fuses supports backward compatibility with legacy equipment, reducing redesign needs and facilitating a smooth transition for maintenance teams. Feature → Business Impact → Application: 1.5 in length with standard packaging enhances compatibility with Bussmann-style holders and modular panels, improving inventory control and installation speed across multiple SKUs.
Get a Quick Quote for a Eaton BAF-10
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton BAF-10?
Enquire Now
FAQs
To replace a BAF-10, power down the equipment, remove the loaded ferrule end cap, insert the new BAF-10 with ferrule ends into the same holder, and secure with the end caps. Confirm 10 A rating and 250 V rating are suitable for the circuit. The ferrule-end design simplifies replacement and minimizes downtime in panel assemblies.
The BAF-10 provides 200 AIC at 250 Vac and 10 kAIC at 125 Vac, with a voltage rating of 250 V. The 10 A amperage rating enables precise overcurrent protection for low-voltage circuits in control panels and power distribution applications.
Yes. The BAF-10’s fast-acting, 10 A rating at 250 V and ferrule-end construction make it well-suited for protection of control panels, PLC cabinets, and select motor-driven equipment in automation environments, while its non-indicating design keeps panel clutter minimal.
The BAF-10 is CE Marked, confirming compliance with EU safety requirements. Specific regional approvals beyond CE are not listed in the provided data, so verify local regulatory needs for UL or other certifications as required by your application.
The BAF-10’s compact 1.5 in length, ferrule-end compatibility, and durable nickel-plated brass endcaps simplify replacement and reduce spare-parts variety. This translates to shorter maintenance windows, higher equipment uptime, and lower total cost of ownership for automation and control systems.
