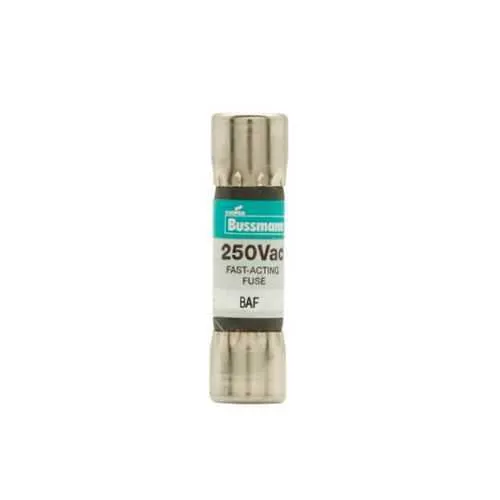

Eaton BAF-2-1/2 Fuse - CE Marked Fast-Acting
Part Number: BAF-2-1/2
Quick Summary
The Eaton BAF-2-1/2 fuse is a fast-acting protection device designed for control circuits in industrial panels. This fuse helps prevent costly damage from overcurrents while keeping panel layouts compact. Engineers often struggle with nuisance trips and limited space in modern equipment, but this part delivers reliable interruption without adding bulk. CE marking confirms European safety compliance, while its 2.5 A rating and 250 V operation support common automation and instrumentation needs. By combining a ferrule-end connection with nickel-plated endcaps, Eaton ensures robust terminations and long-term durability, enabling lower maintenance and higher uptime for critical systems. This makes it a strong fit for manufacturers seeking dependable, easy-to-service protection with minimal installation effort.
Product Information
Extended Description
BAF-2-1/2 Eaton: Eaton Bussmann series BAF fuse, Fast acting, 2.5 A, Non-indicating, Ferrule end x ferrule end, 100 AIC at 250 Vac, 10 kAIC at 125 Vac, Nickel-plated brass endcaps, Standard, 250 V
Product Name
Eaton Bussmann series BAF fuse
Catalog Number
BAF-2-1/2
UPC
051712320139
EAN
5027590407175
Product Length/Depth
0.41 in
Product Height
1.5 in
Product Width
0.41 in
Product Weight
0.25 lb
Warranty
Not Applicable
Compliances
CE Marked
Amperage Rating
2.5 A
Interrupt rating
10 kAIC at 125 Vac 100 AIC at 250 Vac
Voltage rating
250 V
Material
Nickel-plated brass endcaps
Packaging type
Standard
Connection
Ferrule end x ferrule end
Fuse indicator
Non-indicating
Special features
Silver-plated fuse caps, replacement for "F15B" fuses
Bussmann series complete full line catalog no. 1007
Bussmann series complete full line catalog no. 1007
Bussmann series Fuseology
Eaton Specification Sheet - BAF-2-1/2
Feature → Business Impact → Application: Fast-acting protection delivers rapid fault clearance, reducing damage to sensitive loads and lowering downtime in control circuits. Application: ideal for instrumentation, PLC outputs, and small control loops where precise protection and fast response are essential. Feature → Business Impact → Application: 2.5 A rating supports small-load protection with precise demarcation of fault currents, improving selectivity and reducing nuisance trips in compact panels. Application: instrumentation cabinets and sensor circuits in industrial environments. Feature → Business Impact → Application: 250 V rating paired with high interrupt capability (10 kAIC at 125 Vac, 100 AIC at 250 Vac) ensures reliable fault clearance for a wide range of European and North American equipment. Application: panel feeders and interconnects with varying surge conditions. Feature → Business Impact → Application: Ferrule-end x ferrule-end connections provide secure, repeatable terminations that simplify installation and maintenance. Application: wire harnesses and terminal strips in tight industrial enclosures. Feature → Business Impact → Application: Nickel-plated brass endcaps offer corrosion resistance and durable mating surfaces, extending service life in humid or industrial settings. Application: outdoor or harsh-environment panels and benchtop test rigs. Feature → Business Impact → Application: Non-indicating design reduces cost and complexity, acceptance testing is straightforward, and replacement scheduling is simplified. Application: standard protection schemes in facilities where visual fuse status is monitored via panel indicators. Feature → Business Impact → Application: Replacement for F15B fuses provides a clear migration path for legacy equipment. Application: upgrade projects and retrofits in automation lines. Feature → Business Impact → Application: Compact footprint (0.41 in W, 0.41 in D, 1.5 in H) and light weight (0.25 lb) enable easy integration in small enclosures and 1U to 2U panels. Application: space-constrained control cabinets and equipment racks. All features are designed to support compliance, installation efficiency, and measurable uptime gains while maintaining compatibility with Bussmann series components and standard packaging.
Get a Quick Quote for a Eaton BAF-2-1/2
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton BAF-2-1/2?
Enquire Now
FAQs
Yes. The BAF-2-1/2 is specified with ferrule-end x ferrule-end connections, facilitating secure, repeatable terminations in standard panel wiring. Its compact footprint (0.41 in W x 0.41 in D) and 1.5 in height fit common enclosure footprints, simplifying installation and reducing panel crowding.
The fuse provides 10 kAIC interrupt rating at 125 VAC and 100 AIC at 250 VAC, ensuring rapid fault clearance for both low- and higher-energy events while protecting connected devices and wiring from damage.
Best suited for control panels, instrumentation, and small-load circuits where fast protection is required and space is at a premium. Its 2.5 A rating and 250 V operation support a wide range of automation sensors, PLC I/O, and small actuators, with reliable protection and easy integration.
The BAF-2-1/2 fuse is CE Marked, indicating compliance with European safety standards. This provides confidence for European installations and projects requiring formal safety conformance within automation and electrical protection applications.
The device is non-indicating, so status is monitored through system-level indicators or diagnostics. It serves as a replacement option for legacy F15B fuses and comes in standard packaging for easy stocking. For reliability, keep spare fuses on hand and ensure ferrule-term wiring is properly crimped to maintain secure connections.
