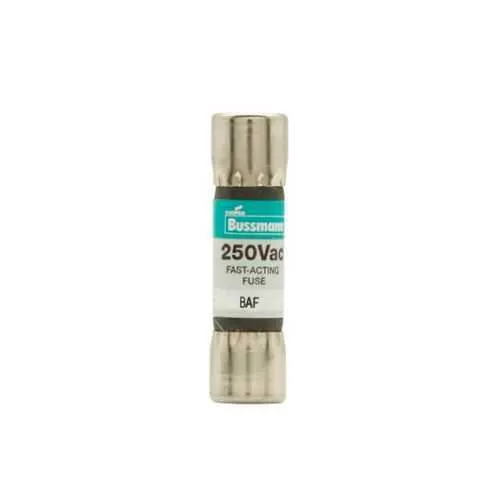

Eaton BAF-5 fuse - 5 A fast-acting, CE Marked
Part Number: BAF-5
Quick Summary
Eaton BAF-5 fuse provides fast-acting overcurrent protection for low-voltage control circuits in automation panels. Designers often battle nuisance trips and mismatched protection that leads to downtime and expensive spares. The device is CE marked and rated for 250 V, with 10 kAIC at 125 Vac and 200 AIC at 250 Vac, delivering reliable short-circuit protection in harsh environments. This Bussmann series midget fuse combines compact form with nickel-plated endcaps, supporting ferrule-end connections for straightforward installation. By aligning this fuse with standard cabinet layouts and 250 V control networks, engineers gain quicker maintenance, lower inventory complexity, and consistent protection across panels and machines.
Product Information
Extended Description
BAF-5 Eaton: Eaton Bussmann series BAF fuse, Fast acting, 5 A, Non-indicating, Ferrule end x ferrule end, 10 kAIC at 125 Vac, 200 AIC at 250 Vac, Nickel-plated brass endcaps, Standard, 250 V
Product Name
Eaton Bussmann series BAF fuse
Catalog Number
BAF-5
UPC
051712320054
EAN
5027590056854
Product Length/Depth
0.41 in
Product Height
1.5 in
Product Width
0.41 in
Product Weight
0.25 lb
Warranty
Not Applicable
Compliances
CE Marked
Amperage Rating
5 A
Interrupt rating
10 kAIC at 125 Vac 200 AIC at 250 Vac
Voltage rating
250 V
Material
Nickel-plated brass endcaps
Packaging type
Standard
Connection
Ferrule end x ferrule end
Fuse indicator
Non-indicating
Special features
Silver-plated fuse caps, replacement for "F15B" fuses
Bussmann series complete full line catalog no. 1007
Bussmann series Fuseology
Eaton Specification Sheet - BAF-5
BAF-5~BUSS MIDGET FUSE
Datasheet - FNQ-30
Feature: Fast-acting fuse design. Business Impact: Quickly interrupts fault currents to minimize damage to sensitive electronics and reduce downtime. Application: Control panels and automation wiring where precise protection is required. Long-tail keywords: fast-acting fuse, control panel protection, Bussmann BAF series. Feature: 5 A amperage with high interrupt ratings. Business Impact: Provides reliable protection against short circuits while maintaining normal operation, reducing nuisance trips. Application: 125 Vac and 250 Vac control circuits in automated systems. Long-tail keywords: 5 A fuse, 10 kAIC at 125 Vac, 200 AIC at 250 Vac. Feature: Nickel-plated brass endcaps and ferrule-end connections. Business Impact: Enhanced durability and corrosion resistance in industrial environments, easing maintenance and replacement. Application: Panel installable with standard ferrule terminations. Long-tail keywords: ferrule end x ferrule end, nickel-plated endcaps. Feature: Replacement for F15B and Bussmann series compatibility. Business Impact: Simplifies spare parts management and ensures retrofit compatibility with legacy installations. Application: Field upgrades and stock optimization. Long-tail keywords: replacement for F15B, Bussmann series midget fuse. Feature: CE compliance and compact dimensions. Business Impact: Regulatory alignment and space-saving installation in crowded control panels. Application: European-sourced projects and compact cabinet layouts. Long-tail keywords: CE Marked, 0.41 in width, 1.5 in height, 0.41 in depth.
