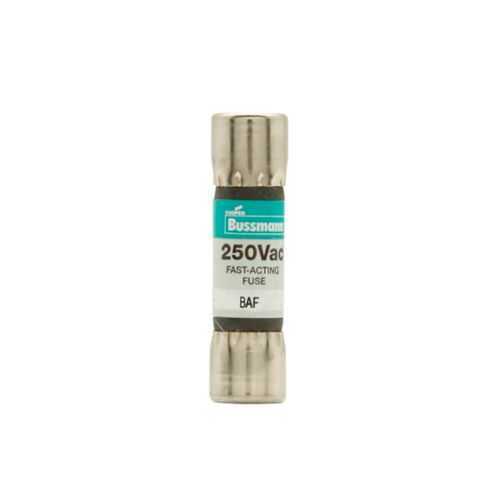

Eaton BAF-8 Fuse - 8 A, 10 kAIC at 125 Vac
Part Number: BAF-8
Quick Summary
The Eaton BAF-8 fuse provides fast-acting overcurrent protection for small- to mid-sized circuits in industrial control panels. A common challenge in automation is locating a compact, reliable fuse that fits tight enclosures while delivering consistent interrupt ratings. This model offers a 8 A rating, 250 V operation, and a high interrupt rating of 10 kAIC at 125 Vac (and 200 AIC at 250 Vac), backed by durable nickel-plated endcaps and ferrule-term connections. It is CE marked, meeting essential safety standards for EU installations. By aligning with Eaton Bussmann's trusted fuse platform, engineers gain predictable protection, simplified stocking, and a standardized solution that reduces panel downtime and maintenance costs across automation applications.
Product Information
Extended Description
BAF-8 Eaton: Eaton Bussmann series BAF fuse, Fast acting, 8 A, Non-indicating, Ferrule end x ferrule end, 10 kAIC at 125 Vac, 200 AIC at 250 Vac, Nickel-plated brass endcaps, Standard, 250 V
Product Name
Eaton Bussmann series BAF fuse
Catalog Number
BAF-8
UPC
051712320092
EAN
5027590449120
Product Length/Depth
0.41 in
Product Height
1.5 in
Product Width
0.41 in
Product Weight
0.25 lb
Warranty
Not Applicable
Compliances
CE Marked
Amperage Rating
8 A
Interrupt rating
10 kAIC at 125 Vac 200 AIC at 250 Vac
Voltage rating
250 V
Material
Nickel-plated brass endcaps
Packaging type
Standard
Connection
Ferrule end x ferrule end
Fuse indicator
Non-indicating
Special features
Silver-plated fuse caps, replacement for "F15B" fuses
Bussmann series complete full line catalog no. 1007
Bussmann series Fuseology
Eaton Specification Sheet - BAF-8
BAF-8~BUSS MIDGET FUSE
Datasheet - FNQ-30
Feature: 8 A fast-acting fuse. Business Impact: Rapid interruption minimizes damage from short circuits and reduces downtime in automation systems. Application: Control panels, small drives, relays where swift protection matters. Feature: High interrupt rating—10 kAIC at 125 Vac and 200 AIC at 250 Vac. Business Impact: Enhanced safety in high fault-current environments, lowering the risk of collateral damage. Application: Power distribution units and machinery with demanding surge conditions. Feature: Ferrule end x ferrule end connections. Business Impact: Easy, secure wiring with consistent contact quality, simplifying installation and maintenance. Application: Standard fuse holders and panel assemblies in industrial environments. Feature: Nickel-plated brass endcaps. Business Impact: Superior corrosion resistance and durability for long service life in demanding facilities. Application: Enclosures with exposure to humidity or harsh conditions. Feature: Non-indicating design and silver-plated fuse caps. Business Impact: Reduced nuisance trips and resilient contact performance, supporting reliable operation. Application: No visual trip indicators required in cleanroom or automation cabinets. Feature: Compliance with CE marking. Business Impact: Regulatory alignment for EU markets, streamlining procurement and audits. Application: Installation in machines and panels that require certified electrical protection.
Get a Quick Quote for a Eaton BAF-8
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton BAF-8?
Enquire Now
FAQs
The BAF-8 uses ferrule-end terminations compatible with standard fuse holders. Ensure the enclosure provides adequate space for a 0.41 in width and 1.5 in height device and that wiring is terminated with appropriate ferrule lugs to maintain secure, vibration-resistant connections. Verify voltage rating (250 V) and amperage (8 A) to match the protected circuit.
The BAF-8 delivers a 10 kAIC interrupt rating at 125 Vac and 200 AIC at 250 Vac, enabling fast fault-current interruption with minimal impedance to downstream components. Its fast-acting design helps protect controllers, relays, and sensors from transient surges common in automation panels.
Yes. The BAF-8 is designed for compact control panels and automation applications where space is at a premium but reliable protection is required. With ferrule-end connections and 250 V operation, it integrates readily with standard panel components while meeting CE safety requirements for EU environments.
The BAF-8 is CE marked, indicating compliance with essential EU safety, health, and environmental requirements. While other certifications are not listed, CE marking supports regulatory alignment in many markets and simplifies procurement for equipment intended for EU installations.
The BAF-8 offers predictable protection with a compact form factor, reducing panel space and wiring complexity. Its high interrupt ratings minimize device damage from faults, lowering downtime and maintenance costs. Durable nickel-plated endcaps enhance longevity in demanding environments, contributing to lower replacement frequency and improved asset reliability.
