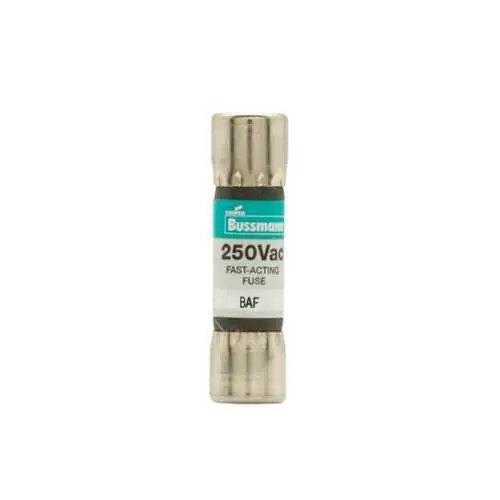

Eaton BAF-9 Fuse - CE Marked
Part Number: BAF-9
Quick Summary
BAF-9 fuse is a fast-acting protective device designed for general purpose circuits in lighting and meter protection. It helps prevent nuisance downtime by quickly interrupting faults while preserving healthy loads. CE Marked compliance supports EU installation requirements, and the fuse’s high interrupt ratings offer confidence in rugged industrial applications. While other standards like SIL or IP ratings aren’t specified for this model, its European compliance and robust Bussmann design provide a reliable safety margin. The result is a practical balance of protection, compatibility with Bussmann series holders, and straightforward replacement in retrofit projects, reducing inventory complexity and maintenance costs for electrical panels and control cabinets.
Product Information
Extended Description
BAF-9 Eaton: Eaton Bussmann series BAF fuse, Fast acting, General purpose circuits, Lighting circuit protection, Meter circuits, 9 A, Non-indicating, 200 AIC at 250 Vac, 10 kAIC at 125 Vac, Nickel-plated brass endcaps, Standard, 250 V
Product Name
Eaton Bussmann series BAF fuse
Catalog Number
BAF-9
UPC
051712320146
EAN
5027590407205
Product Length/Depth
0.41 in
Product Height
1.5 in
Product Width
0.41 in
Product Weight
0.25 lb
Warranty
Not Applicable
Compliances
CE Marked
Amperage Rating
9 A
Interrupt rating
200 AIC at 250 Vac 10 kAIC at 125 Vac
Voltage rating
250 V
Material
Nickel-plated brass endcaps
Packaging type
Standard
Fuse indicator
Non-indicating
Special features
Replacement for "F16B" fuses
Bussmann series complete full line catalog no. 1007
Bussmann series Fuseology
Eaton Specification Sheet - BAF-9
BAF-9~BUSS MIDGET FUSE
Datasheet - FNQ-30
Feature: Fast-acting 9 A rating delivers rapid fault clearance, reducing arc energy and protecting sensitive equipment. Business Impact: Minimizes downtime and extends component life in lighting panels and meter enclosures. Application: Ideal for general purpose circuits in industrial control rooms and commercial facilities. Feature: Nickel-plated brass endcaps provide corrosion resistance and secure electrical contact. Business Impact: Improves reliability in harsh environments and reduces replacement frequency. Application: Suitable for environments with exposure to humidity or airborne contaminants. Feature: High interrupt ratings—200 AIC at 250 Vac and 10 kAIC at 125 Vac—offer robust fault protection. Business Impact: Safeguards equipment and wiring during short-circuit events, lowering risk of cascading failures. Application: Critical for feeders and control circuits with elevated fault energy. Feature: Replacement compatibility with F16B styles and Bussmann series holders ensures retrofit ease. Business Impact: Simplifies stocking and upgrade paths, reducing downtime during maintenance. Application: Retrofit projects in legacy systems. Feature: Non-indicating design keeps costs down while allowing external status indication wherever required. Business Impact: Reduces part costs while enabling external monitoring solutions. Application: Control panel installations that use separate indicators. Feature: Compact 0.41 in square footprint and 1.5 in height with standard packaging fits tight enclosures. Business Impact: Maximizes panel real estate and simplifies replacement stock. Application: Small control cabinets and lighting distribution panels.
Get a Quick Quote for a Eaton BAF-9
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton BAF-9?
Enquire Now
FAQs
The BAF-9 is intended for general purpose circuits in industrial control panels, lighting installations, and metering applications where rapid fault clearing is essential. Its 9 A rating and 250 V maximum work safely with common control voltages, supporting reliable protection of loads such as lighting fixtures, metering enclosures, and small automation circuits. The fast-acting characteristic minimizes arc energy and protects sensitive equipment while keeping nuisance trips to a minimum in properly sized circuits.
The BAF-9 is rated at 9 A with an interrupt rating of 200 AIC at 250 VAC and 10 kAIC at 125 VAC. It is designed for a voltage rating of 250 V. These specifications enable effective fault clearing for general purpose and lighting circuits, while maintaining compatibility with Bussmann series holders and standard panel configurations.
Yes. The BAF-9 is part of the Eaton Bussmann series and is listed as a replacement for the older F16B fuse design. It uses nickel-plated brass endcaps and standard packaging, ensuring straightforward retrofits in existing Bussmann holders and control panels without extensive modifications. This compatibility simplifies spare part inventories and technician training during upgrades.
The BAF-9 carries CE Marked compliance, aligning it with EU safety and conformity requirements for electrical components. While SIL and IP ratings are not specified for this model, CE marking indicates adherence to essential safety, health, and environmental protection standards within European markets, providing a solid basis for cross-border installations when combined with appropriate enclosure and wiring practices.
The BAF-9 fuse measures 0.41 inches in width and depth, with a height of 1.5 inches, and it weighs about 0.25 pounds. It comes in standard packaging, and features nickel-plated brass endcaps for robust, corrosion-resistant connections. This compact size suits tight enclosures and simplifies stocking for routine maintenance in lighting and metering applications.
