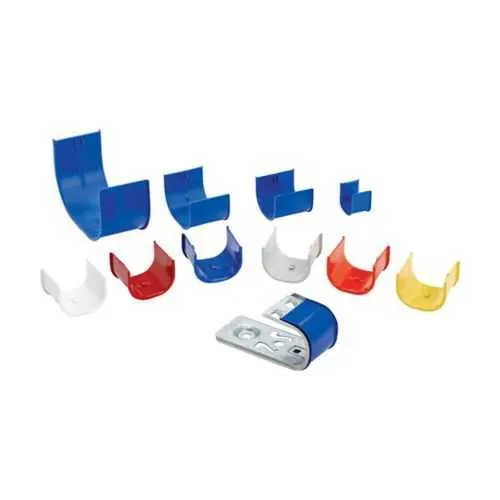

Eaton BCHID-RD12 B-Line cable hook color id clip - UL Listed
Part Number: BCHID-RD12
Quick Summary
BCHID-RD12 is a color-coded J-hook color ID clip designed to organize low-voltage and data cabling in Eaton B-Line installations. Engineers frequently struggle with crossover and mislabeled pathways that slow installs and complicate maintenance. UL Listed certification supports safety compliance in critical datacom and low-voltage applications. By enabling quick routing decisions and distinct pathways, the clip reduces rework and supports faster changes. Designed to snap on after installation, BCHID-RD12 minimizes disruption in ongoing builds and upgrades. With a 0.75 inch hook size and 1 inch length, it fits tightly in crowded cable trays and panel channels. Color-coded designation reduces training time for new technicians. Overall business value includes faster changeouts, easier inventory management, and improved fault isolation.
Product Information
Extended Description
BCHID-RD12 Eaton: Eaton B-Line series datacomm and low voltage support fasteners, Color coded for content desination,Easy to designate pathways to prevent crossover, Snapped on j-hook after it is installed, J-hook color id clip, J-hook, 3/4" Hook, Red
Product Name
Eaton B-Line series cable hook color id clip
Catalog Number
BCHID-RD12
UPC
799038544890
Product Length/Depth
1 in
Product Height
0.94 in
Product Width
0.75 in
Product Weight
0.003 lb
Certifications
UL Listed
Type
J-hook color id clip
Hook size
0.75 in
J-Hook color ID clip flyer
Communications and low voltage section fastener catalog
J-Hooks Video
Eaton Specification Sheet - BCHID-RD12
BCHID-RD12 delivers a concise, measurable impact by combining a snap-on J-hook with a color ID clip that clarifies pathways and content destination. Feature → Business Impact → Application: The color-coded clip enables immediate visual routing decisions, which reduces crossover and misrouting in high-density data center and industrial panels, improving installation speed and traceability. This translates to lower labor costs and faster changeouts when wiring datacom and low-voltage systems. Feature → Compatibility → Application: It is designed for Eaton B-Line series cable hooks and fasteners, snapping on after installation for minimal downtime, making it ideal for retrofit projects and new builds where time is critical. Feature → Certifications → Application: UL Listed certification supports compliance during audits and safety reviews across control rooms, data centers, and manufacturing floors. Feature → Size and fit → Application: The 0.75 in hook and 1 in length fit neatly in restricted cable trays, reducing the risk of interference with adjacent components while maintaining secure routing. Feature → Maintenance and training → Application: Color ID technology shortens training cycles for technicians and simplifies ongoing maintenance by providing clear content designation in complex cable runs. Feature → Reliability → Application: The rugged J-hook design maintains pathway integrity under typical industrial environments, helping to prevent displaced cables and service interruptions. Measurable outcomes include reduced rework, faster task completion, and improved accuracy in labeling schemes.
Get a Quick Quote for a Eaton BCHID-RD12
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton BCHID-RD12?
Enquire Now
FAQs
BCHID-RD12 is designed to snap on after the J-hook is installed, allowing you to add the color ID clip without disassembly. Simply align the clip with the hook’s face, press until it snaps securely into place, and verify the color designation matches the routed pathway. This minimizes downtime during upgrades or expansions and maintains clean, labeled cabling routes.
Key specs include a 1 inch product depth, 0.94 inch height, 0.75 inch width, and a 0.75 inch hook size. Catalog Number BCHID-RD12, UPC 799038544890, and UL Listed certification. The product weight is 0.003 lb, with a standard J-hook design tailored for the B-Line series.
Yes. BCHID-RD12 is specifically designed for Eaton B-Line series datacomm and low-voltage support fasteners. The clip snaps onto the J-hook after installation, providing a robust color-coded designation that aligns with B-Line’s routing and labeling standards, improving overall cabling organization and ease of maintenance.
Color ID clips like BCHID-RD12 offer immediate pathway clarity, reducing misrouting and crossover in dense cable runs. The result is faster installations, easier upgrades, and improved fault isolation. The color coding also supports quicker technician training and easier auditing for compliance in data centers and industrial environments.
You can access the BCHID-RD12 datasheet and related fastener resources from Eaton’s download library: the J-Hook color ID clip flyer, the Communications and Low Voltage section fastener catalog, the J-Hooks video, and the Eaton Specification Sheet for BCHID-RD12. These materials provide installation guidance, technical specifications, and application examples.
