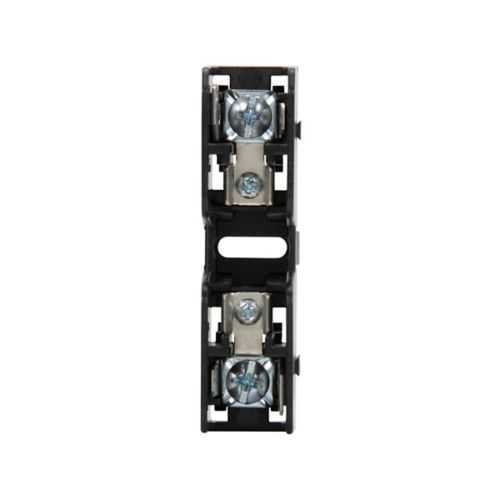

Eaton BCM603-1PQ Modular High-Capacity Fuse Block - UL Listed
Part Number: BCM603-1PQ
Quick Summary
The Eaton BCM603-1PQ modular fuse block provides overcurrent protection for single-pole circuits in control panels. When space is tight or field maintenance slows work, engineers need a compact, reliable solution that wires quickly. It carries UL Listed, CSA Certified, and RoHS compliant marks, signaling safety, regulatory alignment, and environmental responsibility. Designed for fast installation and easy service, its pressure plate/quick-connect terminals help reduce labor time while maintaining a secure, dependable electrical connection. This combination supports higher panel density, lower total cost of ownership, and improved uptime in automated systems.
Product Information
Extended Description
BCM603-1PQ Eaton: Eaton Bussmann series BCM modular fuse block, Pressure plate/Quick connect, Single-pole
Product Name
Eaton Bussmann series BCM modular fuse block
Catalog Number
BCM603-1PQ
UPC
051712486330
Product Length/Depth
3 in
Product Height
1 in
Product Width
1 in
Product Weight
0.07 lb
Warranty
Not Applicable
Compliances
RoHS Compliant CE Marked
Certifications
Contact Manufacturer UL Listed CSA Certified
Number of Poles
Single-pole
Special features
Pressure plate/Quick connect
Bussmann series complete full line catalog no. 1007
Bussmann series complete full line catalog no. 1007
Bussmann series Fuseology
Eaton Specification Sheet - BCM603-1PQ
Feature: Compact modular form with a 3 in length and a 1x1 in footprint reduces panel real estate and simplifies enclosure layout. Business impact: Frees up space for additional protections or controls, enabling denser panel designs and easier wiring. Application: Ideal for control panels and small switchgear where space is at a premium. Feature: Pressure plate/Quick connect terminals enable fast, tool-free wiring and secure connections. Business impact: Shortens installation time, lowers labor costs, and improves wiring reliability in high-vibration environments. Application: Quick-field maintenance in automated lines and machine controls. Feature: RoHS compliant, CE marked, UL Listed, and CSA Certified. Business impact: Ensures full regulatory compliance, safer procurement, and reduced risk in cross-border deployments. Application: Suitable for global assemblies and certified equipment signatures. Feature: Lightweight, single-pole design at 0.07 lb and 3 in × 1 in × 1 in footprint. Business impact: Easier handling during installation and less panel weight or stress on mounting hardware. Application: Used in compact protection schemes within distributed control systems. Feature: Catalog BCM603-1PQ and UPC 051712486330 support traceable sourcing and easy procurement. Business impact: Streamlined purchasing, faster BOM updates, and reliable part replacement during maintenance. Application: Fits Bussmann BCM modular fuse-block families in standard electrical protection layouts.
Get a Quick Quote for a Eaton BCM603-1PQ
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton BCM603-1PQ?
Enquire Now
FAQs
The BCM603-1PQ is a single-pole modular fuse block from the Eaton Bussmann BCM series designed for standard control panels and switchgear. It uses pressure plate/quick-connect terminals for rapid wiring and can be integrated into assemblies requiring UL Listed and CSA Certified protection with RoHS compliance. It aligns with typical Bussmann modular protection architectures, simplifying BOM planning and field upgrades.
BCM603-1PQ measures 3 inches in length with a 1 inch height and 1 inch width, weighs 0.07 pounds, and carries the catalog number BCM603-1PQ with UPC 051712486330. It is a single-pole device featuring pressure plate/quick-connect terminals for fast wiring and secure connections, suitable for compact protection circuits in automated environments.
Yes. The BCM603-1PQ is purpose-built for industrial control panels and switchgear requiring reliable single-pole protection. Its compact footprint, quick-connect terminals, and robust certifications ( UL Listed, CSA Certified, RoHS, CE) make it well-suited for dense, automated systems where space, speed, and regulatory compliance are critical.
The BCM603-1PQ carries UL Listed and CSA Certified marks and is RoHS compliant with CE marking. This combination supports safety approvals, cross-border compatibility, and environmentally responsible material use, reducing supplier and regulatory risk in global deployments.
The pressure plate/quick-connect terminals enable faster, cleaner wiring, lowering installation labor and commissioning time. Its compact size and lightweight design simplify panel layouts, potentially reducing enclosure costs and cabling length. With standard Bussmann BCM compatibility and reliable protection, it also lowers maintenance downtime and improves uptime in automated lines.
