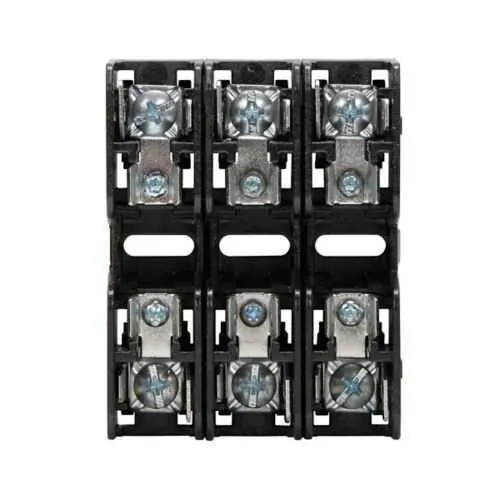

Eaton BCM603-3PQ Modular Fuse Block - UL Listed
Part Number: BCM603-3PQ
Quick Summary
The Eaton BCM603-3PQ modular fuse block is a compact, three-pole protection device designed for electrical control panels. Engineers often face space constraints and labor-intensive terminations when upgrading legacy protection blocks. This unit carries RoHS compliance and CE marking, plus UL Listed and CSA Certified protection, delivering safety and regulatory alignment in automated environments. Its pressure plate and quick-connect terminals simplify field wiring, while the compact footprint supports reliable protection without sacrificing panel real estate. Designed for easy integration with Bussmann modular families, BCM603-3PQ improves maintenance workflows and reduces downtime. In practice, teams see faster commissioning, consistent electrical connections, and clear traceability for compliance audits. This combination of reliability and ease of use supports scalable protection in small to mid-size automation projects.
Product Information
Extended Description
BCM603-3PQ Eaton: Eaton Bussmann series BCM modular fuse block, Pressure plate/Quick connect, Three-pole
Product Name
Eaton Bussmann series BCM modular fuse block
Catalog Number
BCM603-3PQ
UPC
051712486743
Product Length/Depth
3.5 in
Product Height
0.5 in
Product Width
3 in
Product Weight
0.212 lb
Warranty
Not Applicable
Compliances
RoHS Compliant CE Marked
Certifications
Contact Manufacturer UL Listed CSA Certified
Number of Poles
Three-pole
Special features
Pressure plate/Quick connect
Bussmann series complete full line catalog no. 1007
Bussmann series complete full line catalog no. 1007
Bussmann series Fuseology
Eaton Specification Sheet - BCM603-3PQ
Feature: Pressure plate/Quick connect terminals → Business Impact: Faster wiring, reduced torque requirements, and less risk of terminated connection faults; Application: Control panel wiring in automation systems. The result is shorter installation times and improved reliability in high-vibration environments. Feature: Three-pole modular design → Business Impact: Space-efficient protection that consolidates multiple poles into a single block; Application: Power distribution in compact panels, reducing overall enclosure footprint. The modular approach simplifies expansion and service without rewiring. Feature: Precise dimensions (3.5 in x 3 in x 0.5 in) and light weight (0.212 lb) → Business Impact: Minimal panel intrusion and easier handling during build and field retrofit; Application: Enclosed machinery and automation racks needing compact protection. Feature: RoHS Compliant, CE Marked, UL Listed, CSA Certified → Business Impact: Regulatory compliance and worldwide acceptance; Application: Global manufacturing lines with strict safety and environmental standards. Feature: Compatibility with Bussmann series → Business Impact: Seamless integration, spare parts availability, and standardized maintenance routines; Application: Modernizing control circuits across machine fleets.
Get a Quick Quote for a Eaton BCM603-3PQ
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton BCM603-3PQ?
Enquire Now
FAQs
Plan for the 3.5 in length, 3 in width, and 0.5 in height to ensure mounting clearance. Use the pressure plate/quick-connect terminals for fast termination, and provide accessible wiring space behind the fuse block for maintenance and inspection.
The BCM603-3PQ carries RoHS Compliance, CE marking, UL Listed, and CSA Certified approvals. These certifications confirm environmental compliance, electrical safety, and broad regulatory acceptance for global manufacturing, aiding risk management and supplier qualification.
Ideal for industrial control panels, automation circuits, and compact power distribution in machinery. The three-pole design supports protection across multiple circuits with a single modular unit, simplifying wiring schemes and service.
The pressure plate/quick-connect terminals enable rapid terminations with reliable connections, while the compact form factor reduces panel crowding. Its modular nature eases replacements and upgrades without extensive rewiring, saving downtime.
Per catalog data, the warranty is Not Applicable. For maintenance, inspect terminations regularly, replace any worn components promptly, and use UL Listed/CSA Certified parts to maintain compliance and protection integrity.
