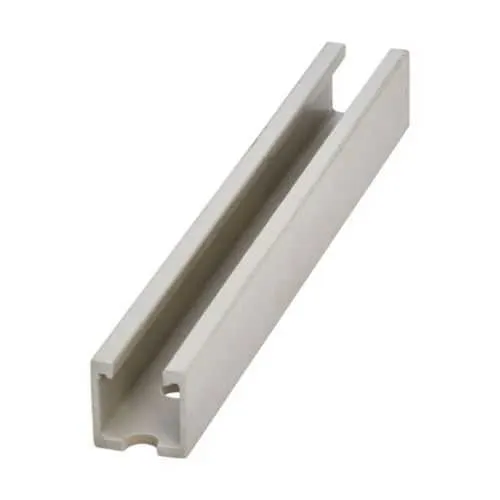

Eaton BFP22H17/8-120 B-Line straight section - H178
Part Number: BFP22H17/8-120
Quick Summary
Eaton BFP22H17/8-120 B-Line straight section provides a durable fiberglass channel framework for electrical and mechanical installations in industrial facilities. Too often projects contend with corrosion, metal fatigue, and non-metallic alternatives that complicate maintenance and uptime. No SIL, CE, or IP certifications are listed for this part, but its polyester resin construction offers inherent corrosion resistance and electrical insulation advantages in harsh environments. Designed for seamless compatibility with Eaton’s B-Line system, fiberglass channel catalogs, and standard fittings, it reduces installation time and simplifies spare-part stock. This combination delivers predictable performance, lower lifecycle costs, and improved safety for critical support structures in demanding facilities.
Product Information
Extended Description
BFP22H17/8-120 Eaton: Eaton B-Line series straight section, 1.62" H x 120" L x 1.62" W, Polyester resin, H178
Product Name
Eaton B-Line series straight section
Catalog Number
BFP22H17/8-120
UPC
781011048808
Product Length/Depth
120 in
Product Height
1.62 in
Product Width
1.62 in
Product Weight
6 lb
Certifications
Not Applicable
Hole pattern
H178
Material
Polyester resin
Fiberglass Materials Catalog Section
Eaton Specification Sheet - BFP22H17/8-120
Corrosion Resistance Flyer for Fiberglass Channel
Feature: Non-metallic polyester resin construction offers inherent corrosion resistance and electrical insulation. Impact: Extends service life in harsh environments and reduces grounding risks, lowering maintenance costs. Application: Ideal for chemical plants, outdoors, or humid facilities where metal channels risk degradation. Feature: 120 inch length with 1.62 inch height and width and a 6 lb weight. Impact: Easy handling, quick fitting alignment, and reduced field labor for assembly and adjustments. Application: Large-span cable-management runs and modular rack systems in factories. Feature: H178 hole pattern enables flexible mounting and compatibility with standard fittings and accessories. Impact: Improves install tempo and inventory planning, lowering total project time. Application: Eaton B-Line fiberglass system installations with existing channel components. Feature: Compliance considerations with the B-Line fiberglass family (no listed certifications for this model). Impact: In projects with specific code requirements, cross-check with product datasheet and site standards. Application: Regulatory-sensitive environments where explicit certifications are a known project constraint. Feature: Compatibility with Eaton catalogs and support ecosystem. Impact: Streamlines sourcing, reduces lead times, and ensures consistent part compatibility across installations. Application: Corporate facilities, data centers, and large manufacturing plants seeking reliable non-metallic support structures.
Get a Quick Quote for a Eaton BFP22H17/8-120
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton BFP22H17/8-120?
Enquire Now
FAQs
This straight section integrates with standard B-Line fiberglass components using the H178 hole pattern. Verify compatibility with your current fittings and ensure proper alignment of channels before mounting. The 120 in length supports long spans, reducing the need for multiple joins and minimizing potential weak points in cable routes.
Constructed from polyester resin, the fiberglass channel offers inherent corrosion resistance and non-conductive properties that withstand harsh environments better than metal equivalents. While not listing specific certifications, this material choice helps improve longevity and reduce maintenance in chemical exposure, outdoor installations, and high-humidity conditions.
Yes. The BFP22H17/8-120 is part of Eaton’s B-Line fiberglass family and is designed for use with standard fittings and accessories documented in Eaton catalogs. The H178 hole pattern provides flexible mounting options, enabling straightforward integration with compatible channel sections and accessories, reducing installation time and stock complexity.
This model lists Certifications as Not Applicable. For projects requiring formal SIL, CE, or IP certifications, verify against the latest Eaton datasheets and your local regulatory standards. The fiberglass construction itself offers non-metallic advantages, but you should align with project-specific certification requirements before deployment.
Potential ROI comes from reduced corrosion-related maintenance, lighter handling, and faster installation due to the 120 in length and compatible hole pattern. Non-metallic channels also lower grounding risk in electrical installations. Combined with Eaton’s ecosystem, this can shorten project timelines and simplify spare-part management, delivering lower lifecycle costs over time.
