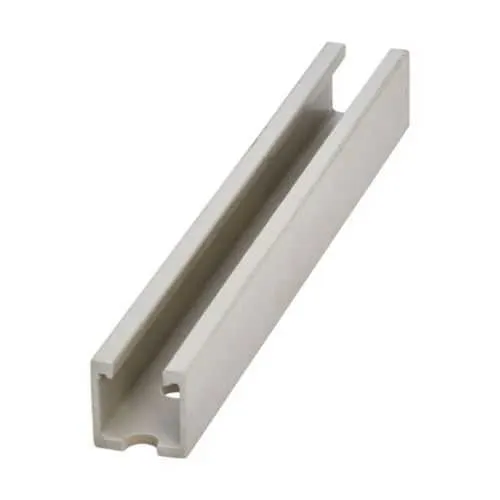

Eaton BFP22H17/8-240 B-Line Straight Section H178
Part Number: BFP22H17/8-240
Quick Summary
The Eaton B-Line straight section BFP22H17/8-240 provides a fiberglass channel solution for electrical support and cable management. Engineers often face corrosion, moisture, and ongoing maintenance costs in harsh industrial environments, which this non-metallic option helps mitigate. Certifications: Not Applicable; for regional compliance, verify requirements such as CE or IP with your Eaton distributor. In addition to corrosion resistance, the polyester resin material pairs with the B-Line ecosystem to streamline sourcing and compatibility with standard fittings. This combination delivers predictable performance in a wide range of facilities, while enabling shorter lead times and easier installation for non-conductive channel runs.
Product Information
Extended Description
BFP22H17/8-240 Eaton: Eaton B-Line series straight section, 1.62" H x 240" L x 1.62" W, Polyester resin, H178
Product Name
Eaton B-Line series straight section
Catalog Number
BFP22H17/8-240
UPC
781011048815
Product Length/Depth
240 in
Product Height
1.62 in
Product Width
1.62 in
Product Weight
12 lb
Certifications
Not Applicable
Hole pattern
H178
Material
Polyester resin
Fiberglass Materials Catalog Section
Eaton Specification Sheet - BFP22H17/8-240
Corrosion Resistance Flyer for Fiberglass Channel
Feature: Polyester resin fiberglass construction provides a non-metallic channel option with corrosion resistance. Business Impact: Reduces maintenance costs and extends service life in chemical, washdown, and coastal environments. Application: Ideal for chemical plants and food-processing facilities where metal channels are prone to corrosion. Feature: 240 inch length enables longer runs with fewer splices, speeding installation. Business Impact: Fewer joints lowers labor time and potential failure points. Application: Data centers, large equipment racks, and factory floor installations requiring continuous channels. Feature: Cross-section of 1.62 in x 1.62 in offers compact yet robust support. Business Impact: Maintains stackability and compatibility with standard fittings while saving space. Application: Electrical and cable management across compact rack systems. Feature: Hole pattern H178 ensures alignment with Eaton hardware and accessories. Business Impact: Simplifies mounting and improves install accuracy. Application: Rework-free integration with existing B-Line components. Feature: Weight of 12 lb per section aids handling and on-site maneuverability. Business Impact: Reduces manual handling risk and speeds site prep. Application: Typical field installations and retrofit projects within existing frames. These features collectively support efficient, compliant, and cost-effective installations across non-metallic channel systems.
Get a Quick Quote for a Eaton BFP22H17/8-240
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton BFP22H17/8-240?
Enquire Now
FAQs
Yes. The BFP22H17/8-240 uses Eaton's standard B-Line hole pattern (H178) and is designed to integrate with compatible fittings and brackets in the B-Line ecosystem, enabling straightforward assembly and uniform load paths.
Catalog number BFP22H17/8-240; length 240 inches; cross-section 1.62 inches by 1.62 inches; weight approximately 12 pounds per section; material polyester resin; hole pattern H178; UPC 781011048815.
Yes. Made from polyester resin fiberglass, it offers corrosion resistance and non-metallic performance suitable for chemical, washdown, and damp environments. For outdoor or UV-exposed installations, confirm regional compliance and UV considerations with the supplier.
The Certifications field is listed as Not Applicable for this part. For project-specific regulatory needs, consult Eaton or your distributor to confirm regional requirements such as CE, IP, or UL compliance.
Longer sections reduce the number of joints and splices, accelerating installation and lowering labor costs. The 12 lb weight per section aids handling on site, while the 240 in length minimizes downtime from component joins in large rack runs, delivering predictable time savings on medium to large projects.
