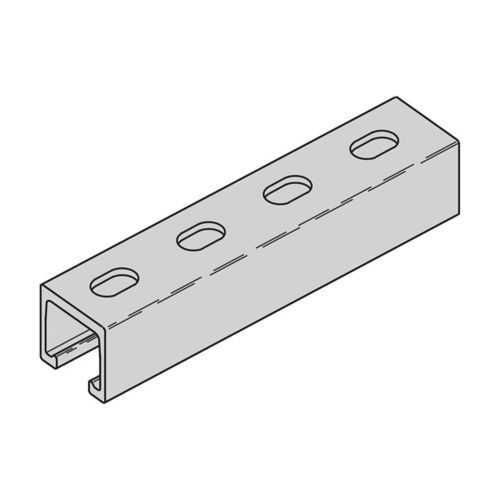

Eaton BFV22SH-120 B-Line straight section - SH
Part Number: BFV22SH-120
Quick Summary
BFV22SH-120 is a durable B-Line straight section designed for fiberglass channel installations in electrical wiring runs. Engineers often struggle with corrosion resistance and mounting compatibility in challenging environments. Certifications for this item are Not Applicable. Designed with vinyl polyester resin and the SH hole pattern, this section delivers reliable support while reducing installation time across commercial and industrial facilities. By integrating with Eaton's B-Line fiberglass channel family, it offers long-term durability and straightforward scalability for growing electrical infrastructure needs.
Product Information
Extended Description
BFV22SH-120 Eaton: Eaton B-Line series straight section, 1.62" H x 120" L x 1.62" W, Vinyl polyester resin, SH
Product Name
Eaton B-Line series straight section
Catalog Number
BFV22SH-120
UPC
781011048860
Product Length/Depth
120 in
Product Height
1.62 in
Product Width
1.62 in
Product Weight
6.1 lb
Certifications
Not Applicable
Hole pattern
SH
Material
Vinyl polyester resin
Fiberglass Materials Catalog Section
Eaton Specification Sheet - BFV22SH-120
Corrosion Resistance Flyer for Fiberglass Channel
Feature: 120 inch length with 1.62 inch by 1.62 inch cross-section, vinyl polyester resin material, weight 6.1 lb. Business Impact: Provides substantial channel length with manageable weight, improving on-site handling and reducing the number of joints. Application: Ideal for extending wiring runs in fiberglass channel systems while maintaining clean, professional cable management. Feature: SH hole pattern for straightforward mounting with standard hardware. Business Impact: Speeds up assembly and alignment, lowering labor time and mounting errors. Application: Quickly interconnected sections across racks and enclosures. Feature: Corrosion-resistant vinyl polyester resin composition. Business Impact: Extends service life in humid or corrosive industrial environments, reducing maintenance costs. Application: Data centers, manufacturing floors, and utility rooms. Feature: Catalog number BFV22SH-120 and UPC 781011048860 for traceability. Business Impact: Improves procurement accuracy and inventory control. Application: Straightforward ordering and integration with existing Eaton products. Feature: Compatibility with Eaton B-Line fiberglass channel components. Business Impact: Enables seamless system upgrades and scalable infrastructure. Application: Retrofit projects and new installations. Feature: Not Applicable certifications noted. Business Impact: Simplifies purchasing decisions where certifications are not required. Application: Early-stage specification and vendor qualification.
Get a Quick Quote for a Eaton BFV22SH-120
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton BFV22SH-120?
Enquire Now
FAQs
For BFV22SH-120, plan for a 120 inch straight section with SH hole pattern and a 1.62 x 1.62 inch cross-section. Use standard strut hardware compatible with Eaton B-Line fiberglass channel. The unit weighs 6.1 pounds, making it manageable on-site while delivering solid mechanical support in cable runs. Ensure clean alignment at joints to maximize load transfer and minimize vibration.
Key specs include catalog number BFV22SH-120, UPC 781011048860, length 120 inches, height 1.62 inches, width 1.62 inches, weight 6.1 pounds, and hole pattern SH. The material is vinyl polyester resin, offering corrosion resistance. These specifications support reliable cable routing in fiberglass channel systems and facilitate accurate vendor qualification and replacement part matching.
Yes. BFV22SH-120 provides a long, lightweight, corrosion-resistant straight section ideal for data center cabling runs. Its 120 inch length reduces the number of joints, improving installation speed and cable routing clarity. The SH hole pattern supports standard mounting hardware, enabling rapid deployment and scalable growth as data center layouts evolve.
Certifications for this item are Not Applicable per the provided data. This means there are no asserted CE, SIL, IP, or similar regulatory certifications on the record. For projects with strict regulatory requirements, verify with your compliance team or consider cross-checking with Eaton’s supported specifications and any project-specific standards before procurement.
The ROI stems from faster installation, easier handling, and reduced maintenance needs. The 120 inch length minimizes joints, vinyl polyester resin offers corrosion resistance, and compatibility with standard hardware lowers spare parts costs. In ongoing operations, these factors translate to lower labor hours, longer service intervals, and more predictable lifecycle budgeting for electrical channel systems.
