Eaton BFV22SH-240 B-Line Straight Section - SH Hole Pattern
Part Number: BFV22SH-240
Quick Summary
BFV22SH-240 is an Eaton B-Line straight section used to assemble modular support frames for electrical enclosures and wiring runs. Installers often grapple with corrosion, weight, and component compatibility during upgrades or expansions in fiberglass channel systems. Certification notes appear as Not Applicable, so confirm CE, IP, or SIL requirements against your project specs. This product uses vinyl polyester resin, delivering durable, corrosion-resistant performance with lighter handling than metal equivalents. The SH hole pattern provides flexible mounting options, while the 240 in length supports long spans with fewer joints. At 1.62 in H and W and a 12.2 lb weight, it enables predictable material planning and faster installation in industrial installations.
Product Information
Extended Description

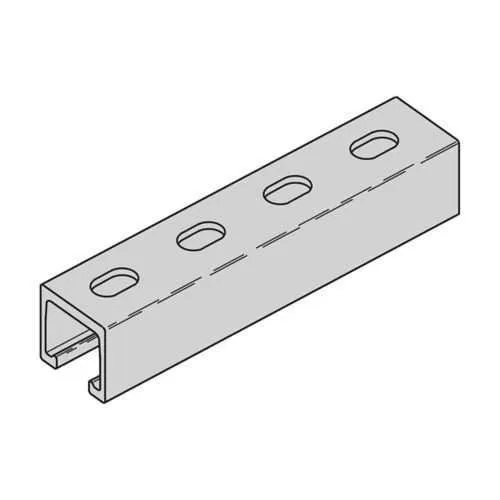

BFV22SH-240 Eaton: Eaton B-Line series straight section, 1.62" H x 240" L x 1.62" W, Vinyl polyester resin, SH
Product Name
Eaton B-Line series straight section
Catalog Number
BFV22SH-240
UPC
781011048877
Product Length/Depth
240 in
Product Height
1.62 in
Product Width
1.62 in
Product Weight
12.2 lb
Certifications
Not Applicable
Hole pattern
SH
Material
Vinyl polyester resin
Fiberglass Materials Catalog Section
Eaton Specification Sheet - BFV22SH-240
Corrosion Resistance Flyer for Fiberglass Channel
Feature: The 240 in length and SH hole pattern enable long-span runs with fewer joints. Business impact: Fewer field connections reduce installation time and misalignment, improving project schedules and labor efficiency. Application: Ideal for modular framing in electrical racks and fiberglass channel systems across industrial environments. Feature: Vinyl polyester resin construction delivers corrosion resistance and lighter handling compared with metal channels. Business impact: Lower maintenance costs and safer on-site handling, especially in humid or chemical environments. Application: Suitable for fiberglass channel installations in service bays, data centers, and manufacturing floors. Feature: The compact cross-section of 1.62 in height and width and a weight of 12.2 lb per section. Business impact: Easier transport, precise cutting, and faster trimming on site. Application: Supports overhead and wall-mounted framing where space is constrained. Feature: Compatibility with Eaton B-Line series components ensures seamless integration with existing systems. Business impact: Reduces procurement risk and simplifies bill of materials, accelerating design validation. Application: Use with related fiberglass channel fittings and supports in new builds or refurbishments. Feature: Access to technical resources such as the Eaton specification sheet and corrosion resistance flyer. Business impact: Improves design accuracy and compliance readiness, cutting review cycles. Application: Ideal for engineering validation during project planning and procurement.
