Eaton BFV42H17/8-120 B-Line straight section - H178
Part Number: BFV42H17/8-120
Quick Summary
BFV42H17/8-120 is a B-Line straight section for fiberglass channel systems in electrical installations. Installers often struggle with corrosion, misalignment, and time-consuming assembly in fiberglass channel runs. Certifications: Not Applicable; the material is vinyl polyester resin and the product aligns with Eaton's internal standards for durability in fiberglass channel systems. Designed for long spans with easy installation, it complements B-Line assemblies for reliable cable management in industrial facilities. In manufacturing and processing environments, reliability and stock portability are essential; this component supports standardization, reduces field labor, and integrates with existing Eaton catalogs to streamline procurement.
Product Information
Extended Description

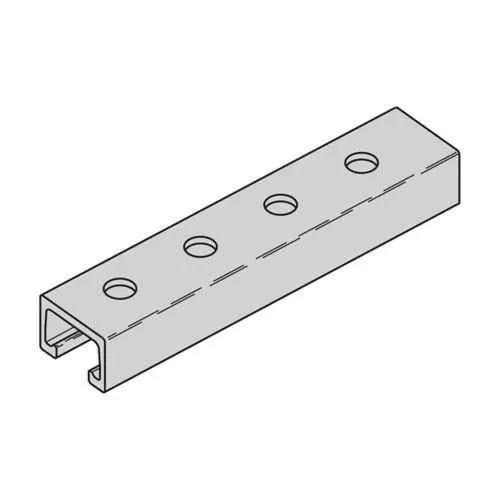

BFV42H17/8-120 Eaton: Eaton B-Line series straight section, 1" H x 120" L x 1.62" W, Vinyl polyester resin, H178
Product Name
Eaton B-Line series straight section
Catalog Number
BFV42H17/8-120
UPC
781011048921
Product Length/Depth
120 in
Product Height
1 in
Product Width
1.62 in
Product Weight
4.6 lb
Certifications
Not Applicable
Hole pattern
H178
Material
Vinyl polyester resin
Fiberglass Materials Catalog Section
Eaton Specification Sheet - BFV42H17/8-120
Corrosion Resistance Flyer for Fiberglass Channel
Feature — Long-span section provides 120 in length, enabling fewer joints and faster installation. Business Impact — Reduces field labor time and potential joint failure, improving project schedule adherence and maintenance planning. Application — Ideal for data centers and large equipment rooms where continuous channel runs are common. Feature — Hole pattern H178 ensures precise alignment with Eaton B-Line channel hardware. Business Impact — Minimises misalignment risk and simplifies mounting, reducing rework and downtime. Application — Suitable for standard fiberglass channel installations requiring consistent hole positions. Feature — Vinyl polyester resin material delivers corrosion resistance in fiberglass channel environments. Business Impact — Extends service life in humid or chemical-adjacent facilities, lowering replacement costs. Application — Industrial plants and outdoor-adjacent indoor spaces where resistance to wear matters. Feature — Compact dimensions of 1 in height and 1.62 in width enable a discreet, space-efficient profile. Business Impact — Facilitates clean routing in tight installations and overhead runs. Application — Overhead cable trays and compact channel corridors. Feature — Weight of 4.6 lb per section supports easier handling and safer on-site installation. Business Impact — Reduces worker fatigue and enhances field productivity during deployment. Application — Field upgrades, retrofits, and new-build projects. Feature — Certifications: Not Applicable; compatibility with Eaton catalogs ensures seamless procurement. Business Impact — Simplifies sourcing within the B-Line ecosystem while acknowledging local regulatory requirements. Application — Procurement planning across multi-site deployments and standardized installations.
Get a Quick Quote for a Eaton BFV42H17/8-120
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton BFV42H17/8-120?
Enquire Now
FAQs
BFV42H17/8-120 is engineered to fit Eaton’s B-Line fiberglass channel ecosystem, featuring the H178 hole pattern for standard mounting hardware. Its 120 in length supports long-span runs with fewer joints, simplifying system design and reducing field assembly time. This compatibility ensures consistent performance across Eaton’s channel products and reduces integration risk during installation.
Key considerations include verifying hole pattern alignment with supporting hardware, anticipating a 4.6 lb section weight for handling, and planning for a 120 in run with minimal joints. Use appropriate fasteners and end caps as needed, align sections to maintain a straight cable path, and follow Eaton catalog guidance to ensure secure mounting and expected system rigidity.
The product uses vinyl polyester resin, which offers inherent corrosion resistance within fiberglass channel environments. The item lists Certifications as Not Applicable, so for outdoor exposure or harsh chemical settings, verify local regulatory requirements and consider additional protective measures or coatings as needed. Always assess site-specific conditions before deployment.
Certifications for this part are listed as Not Applicable. While that means there is no explicit CE/SIL/IP certification stated for this catalog item, it remains compatible with Eaton’s internal standards and the broader B-Line fiberglass channel family. Users should confirm local or industry-specific compliance requirements in their own facilities and in procurement specifications.
Long-span sections like BFV42H17/8-120 reduce the number of joints, which lowers installation time and field labor costs. The vinyl polyester resin material provides corrosion resistance, potentially extending service life and reducing maintenance intervals. Combined with seamless compatibility within Eaton’s channel catalog, this part supports faster project delivery and lower lifecycle costs in large deployments.
