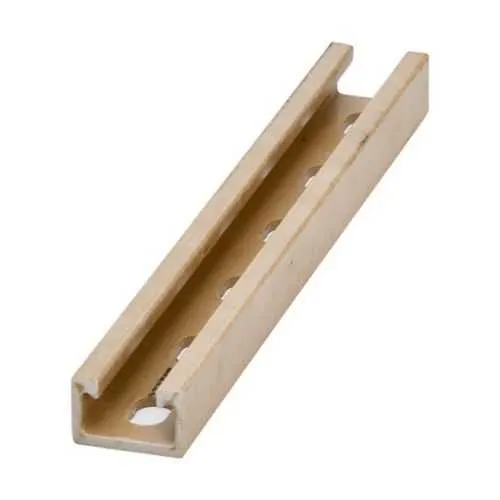

Eaton BFV42SH-120 Straight Section - SH Hole Pattern
Part Number: BFV42SH-120
Quick Summary
Eaton BFV42SH-120 straight section is a modular B-Line member for durable 1 inch high channel runs in electrical enclosures. Installers often contend with corrosion risk, fitment gaps, and coordinating many parts across long spans. Note: There are no SIL, CE, or IP certifications applicable to BFV42SH-120. Sized for 120 inches in length with an SH hole pattern, it integrates with Eaton B-Line accessories for streamlined procurement and installation. In practice, this fiberglass channel solution offers reliable durability and predictable performance across harsh environments, helping teams reduce downtime and simplify project planning.
Product Information
Extended Description
BFV42SH-120 Eaton: Eaton B-Line series straight section, 1" H x 120" L x 1.62" W, Vinyl polyester resin, SH
Product Name
Eaton B-Line series straight section
Catalog Number
BFV42SH-120
UPC
781011048945
Product Length/Depth
120 in
Product Height
1 in
Product Width
1.62 in
Product Weight
4.7 lb
Certifications
Not Applicable
Hole pattern
SH
Material
Vinyl polyester resin
Fiberglass Materials Catalog Section
Eaton Specification Sheet - BFV42SH-120
Corrosion Resistance Flyer for Fiberglass Channel
Feature: 120 inch length and compact 1 inch height with a 1.62 inch width, crafted from vinyl polyester resin. Business Impact: Enables longer continuous channel runs with fewer joints, reducing assembly time and field labor. Application: Ideal for electrical enclosures and data-center rack layouts where space efficiency matters and channel stability is critical. Feature: SH hole pattern compatibility with Eaton B-Line fittings. Business Impact: Ensures seamless mounting and interchangeability with legacy and current fittings, lowering part proliferation. Application: Streamlined procurement and installation across new builds and retrofits. Feature: Fiberglass channel with vinyl polyester resin offers corrosion resistance. Business Impact: Extends service life in damp or chemical environments, reducing maintenance and replacement costs. Application: Chemical plants, outdoor installations, and rinse-down areas. Feature: Lightweight 4.7 lb weight. Business Impact: Simplifies handling and reduces installation time while maintaining strength for long spans. Application: Quick on-site assembly for telecom and industrial automation projects. Feature: 120 inch length supports modularity in B-Line series layouts. Business Impact: Facilitates scalable designs and faster layout revisions. Application: Large installations requiring modular channel sections. Note: Catalog number BFV42SH-120 and UPC 781011048945 aid in accurate ordering and traceability.
Get a Quick Quote for a Eaton BFV42SH-120
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton BFV42SH-120?
Enquire Now
FAQs
BFV42SH-120 is a straight section of Eaton's B-Line fiberglass channel with the SH hole pattern. It is designed to be compatible with B-Line series fittings and channel components intended for 1 inch high channels, enabling reliable assembly for 120 inch runs. When pairing with matching channel lugs and supports, expect straightforward installation and consistent performance across reconfigurations.
Key specs include 120 inches in length, 1 inch in height, and 1.62 inches in width, with a weight of approximately 4.7 pounds. The material is vinyl polyester resin, offering corrosion resistance suitable for fiberglass channel systems. The hole pattern is SH, and the catalog number is BFV42SH-120 with UPC 781011048945. Use compatible fittings designed for SH-pattern mounts to ensure secure installations.
BFV42SH-120 is well-suited for industrial automation, electrical enclosures, data centers, and outdoor or chemically challenging environments where fiberglass channel resists corrosion. Its long 120 inch length and SH hole pattern support scalable, modular layouts in B-Line series systems, reducing joints and simplifying layouts for large channel runs.
According to Eaton data, certifications are Not Applicable for BFV42SH-120; there are no SIL, CE, or IP certifications listed. This aligns with its use as a fiberglass channel component in non-regulated installations, though users should verify your own project requirements and compatibility with local electrical and safety standards.
Using BFV42SH-120 can lower lifecycle costs through corrosion resistance provided by vinyl polyester resin, reducing maintenance downtime. Its long span capability with SH-pattern fittings simplifies planning and reduces part counts, translating to faster installations, fewer field errors, and improved project uptime in industrial facilities.
