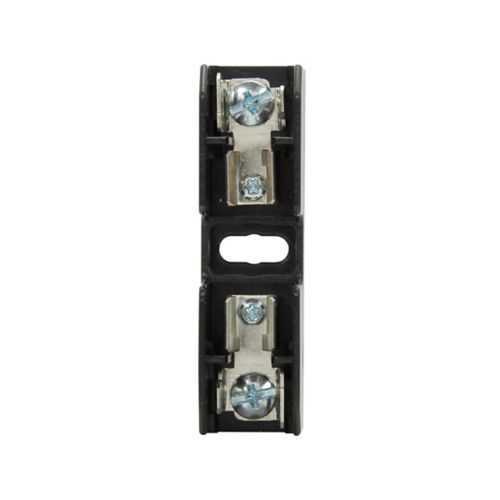

Eaton BG3011PQ Open Fuse Block - UL Recognized
Part Number: BG3011PQ
Quick Summary
The Eaton BG3011PQ open fuse block provides compact, reliable overcurrent protection for control panels and industrial equipment. Engineers often face crowded enclosures, complex wiring, and lengthy field assembly when adding protection blocks. UL Recognized, CSA Certified, and RoHS compliant, the BG3011PQ delivers Class G protection with a 100 kAIC short-circuit rating. Its amperage range of 0.18–15 A and 600 V rating support versatile use across control circuits, while pressure plate/quick-connect terminals simplify installation. Designed for OEMs and service teams seeking reliable protection with minimal footprint, it integrates smoothly into Bussmann series ecosystems. This translates to faster commissioning, lower labor costs, and improved traceability in electrical protection blocks. Supplemental catalogs and datasheets are available to support parts selection and compliance verification.
Product Information
Extended Description
BG3011PQ Eaton: Eaton Bussmann series BG open fuse block, 0.18-15 A, Single-pole, Class G, Pressure plate/quick connect, 100 kAIC, 600 V
Product Name
Eaton Bussmann series BG open fuse block
Catalog Number
BG3011PQ
UPC
051712121903
EAN
5027590418027
Product Length/Depth
3 in
Product Height
1 in
Product Width
1.5 in
Product Weight
0.079 lb
Warranty
Not Applicable
Compliances
RoHS Compliant
Certifications
Contact Manufacturer UL Recognized CSA Certified
Amperage Rating
0.18-15A
Short-circuit rating
100 kA
Voltage rating
600 V
Number of Poles
Single-pole
Class
Class G
Connection
Pressure plate/quick connect
BG3011PQ~FUSEBLOCK WAS 2087
BG3011PQ~FUSEBLOCK WAS 2087
Bussmann series Fuseology
Eaton Specification Sheet - BG3011PQ
Feature: Amperage range 0.18-15 A and 600 V rating enable the BG3011PQ to cover a wide spectrum of control circuits without extra devices. Business impact: standardizing protection across mixed loads reduces BOM complexity and minimizes spare parts, accelerating procurement and maintenance cycles. Application: ideal for compact control panels, machine wiring, and automation cabinets where a single-pole fuse block is preferred. Feature: 100 kAIC short-circuit rating provides resilience against high fault currents. Impact: lowers upstream fuse and equipment stress, reducing the probability of cascading failures and downtime. Application: suitable for industrial automation lines and equipment subject to potential short circuits, helping meet reliability targets. Feature: Class G construction with pressure plate/quick-connect termination supports fast, reliable wiring. Impact: simplifies field terminations, minimizes miswiring risks, and shortens installation time, contributing to lower labor costs. Application: works well in panel assemblies where space is constrained; allows rapid replacement during maintenance. Feature: RoHS compliance with UL Recognized and CSA Certified markings ensures regulatory alignment. Impact: procurement teams can qualify part easily for global projects, while certification supports safe, legal operation across industries. Application: ideal for OEMs requiring standard Bussmann series protection in electric panels. Feature: Compact footprint—3 in long, 1 in high, 1.5 in wide, and weight 0.079 lb—facilitates dense panel layouts. Impact: saves panel real estate and reduces shipping weight, lowering total cost of ownership. Application: fits into Eaton Bussmann series ecosystems alongside related fuses and accessories.
Get a Quick Quote for a Eaton BG3011PQ
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton BG3011PQ?
Enquire Now
FAQs
The BG3011PQ provides an amperage range of 0.18 to 15 A and a voltage rating of 600 V, enabling protection for diverse control circuits. It also offers a 100 kAIC short-circuit rating for high fault current scenarios, making it suitable for moderate to heavy automation loads while maintaining a compact form factor.
Install BG3011PQ using pressure plate or quick-connect terminals for fast, reliable wiring. As a single-pole open fuse block, it is designed to drop into standard Bussmann series protection schemes with minimal wiring depth. Ensure correct alignment with supply and load, secure terminations, and verify that the 600 V rating is appropriate for the system.
Yes. BG3011PQ carries UL Recognized and CSA Certified marks and is RoHS compliant, meeting essential regulatory and environmental requirements. This combination supports global procurement, helps ensure safety compliance in panels, and aligns with common industrial sourcing standards for electrical protection components.
BG3011PQ is well suited for control panels, machine wiring, and automation cabinets where compact, reliable overcurrent protection is needed. Its single-pole design and elevated short-circuit rating make it particularly appropriate for essential protection in industrial automation environments with space constraints and demanding duty cycles.
Technical resources include the Eaton BG3011PQ specification sheet, Bussmann catalogs, and the product datasheets. You can also access the support videos such as Bussmann series Fuseology to understand installation tips and real-world applications, aiding accurate part selection and compliance verification.
