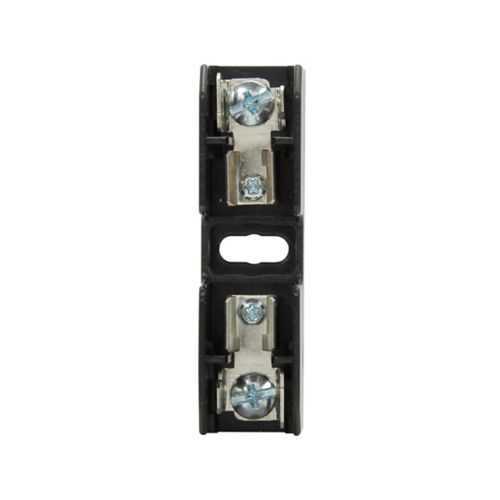

Eaton BG3011SQ Open Fuse Block - 100 kAIC
Part Number: BG3011SQ
Quick Summary
The Eaton BG3011SQ open fuse block provides reliable overcurrent protection for single-pole circuits in industrial panels. It addresses wiring complexity and downtime by offering screw/quick connect terminals and a compact thermoplastic body that makes field installation straightforward. This device carries UL Recognized and CSA Certified markings and RoHS compliance, with a Class G rating and 600 V maximum voltage to meet safety standards across many markets. By supporting SC fuses, it simplifies stocking and maintenance while delivering predictable performance in control enclosures. For engineers focusing on safety, reliability, and fast panel commissioning, the BG3011SQ offers a proven balance of protection and ease of use.
Product Information
Extended Description
BG3011SQ Eaton: Eaton Bussmann series BG open fuse block, 0.18-15 A, Single-pole, Class G, Screw/quick connect, 100 kAIC, Thermoplastic, 600 V, For use with SC fuse, #14-10 AWG Cu/Al
Product Name
Eaton Bussmann series BG open fuse block
Catalog Number
BG3011SQ
UPC
051712736664
Product Length/Depth
0.001 in
Product Height
0.001 in
Product Width
0.001 in
Product Weight
0.075 lb
Warranty
Not Applicable
Compliances
RoHS Compliant
Certifications
Contact Manufacturer UL Recognized CSA Certified
Amperage Rating
0.18-15A
Interrupt rating
100 kAIC
Short-circuit rating
100 kA
Voltage rating
600 V
Material
Thermoplastic
Number of Poles
Single-pole
Wire size
#14-10 AWG Cu/Al
Class
Class G
Connection
Screw/quick connect
Used with
For use with SC fuse
Amperage range from 0.18 to 15 A enables precise protection for a wide spectrum of control circuits, reducing nuisance trips and component wear while supporting scalable automation solutions. This translates to measurable business impact through improved uptime, longer equipment life, and reduced maintenance costs in manufacturing lines and packaging facilities. The 100 kAIC interrupt rating delivers robust fault-current handling, delivering high fault tolerance in demanding industrial environments and easing compliance with protective standards during commissioning. The single-pole Class G design with a 600 V rating ensures compatibility with common SC fuse configurations, enabling plug-and-play integration into existing panels and simplifying spare-part management. The #14-10 AWG Cu/Al wire size support broad field wiring options, while screw/quick connect terminals speed installation and service, cutting labor time by minutes per panel. Thermoplastic housing offers durable, lightweight protection in indoor environments, contributing to lower shipping and handling costs. Compliance with RoHS, UL Recognized, and CSA Certified requirements provides regulatory peace of mind across global operations. This fuse block is well-suited for machine control, process automation, and electrical protection applications in conveyors, robotics, and power distribution networks. In practice, manufacturers gain faster time-to-value during panel refurbishments and new builds, with reduced risk of noncompliant wiring or mismatched fuses thanks to standardized BG3011SQ configurations.
Get a Quick Quote for a Eaton BG3011SQ
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton BG3011SQ?
Enquire Now
FAQs
BG3011SQ accepts SC fuses and uses screw/quick connect terminals for a single-pole configuration. It wires with #14-10 AWG Cu/Al, supports up to 600 V, and provides an amperage range of 0.18 to 15 A. This compatibility simplifies spare parts stocking and reduces the risk of mis-match during panel assembly, improving installation quality.
Key electrical specifications include amperage 0.18–15 A, voltage rating 600 V, interrupt rating 100 kAIC, and short-circuit rating 100 kA. These ratings ensure reliable overcurrent protection for typical industrial control circuits, enabling fast disconnection during faults and meeting safety standards. This makes it suitable for motor starters, PLC panels, and similar protection scenarios.
Yes. BG3011SQ is specifically designed for use with SC fuses in industrial control panels, switchgear, and enclosures. Its Class G thermoplastic body and 600 V rating support common control circuits, while screw/quick connect terminals streamline wiring and service. The compact form factor also helps fit into crowded panel layouts and supports straightforward upgrades.
The BG3011SQ carries UL Recognized and CSA Certified markings and is RoHS Compliant, aligning with global electrical safety and environmental requirements. These certifications support compliance documentation, supplier qualification, and market access across North America and Europe, simplifying audits and regulatory reporting for OEMs and integrators.
Installation is accelerated by screw/quick connect wiring and clearly labeled terminals, while the wide conductor range accommodates common field cables. The unit’s thermoplastic housing resists damage in busy panels, and its high fault-current rating minimizes downtime during fuse changes or maintenance. Overall, it reduces labor time, stock variety, and risk of improper fuse selection in panel builds.
