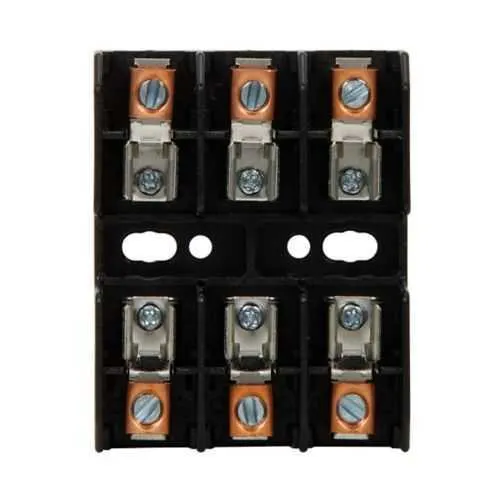

Eaton BG3013B open fuse block - 100 kAIC UL Recognized
Part Number: BG3013B
Quick Summary
BG3013B open fuse block by Eaton provides reliable circuit protection for control panels and industrial equipment. Engineers often struggle with nuisance trips or under-protection when fuses and blocks aren’t matched to the system, leading to downtime and costly repairs. This device carries UL Recognized, CSA Certified, and RoHS compliance, with a 100 kAIC interrupt rating and a 600 Vac/dc operating range to meet demanding electrical standards. Designed for SC fuse compatibility and copper wiring in tight panel spaces, it delivers predictable protection while simplifying sourcing and maintenance for ongoing plant uptime.
Product Information
Extended Description
BG3013B Eaton: Eaton Bussmann series BG open fuse block, 1-15 A, Class G, Box lug, 100 kAIC, Thermoplastic, 600 Vac/dc, For use with SC fuse, #14-6 AWG Cu
Product Name
Eaton Bussmann series BG open fuse block
Catalog Number
BG3013B
UPC
051712736596
EAN
5027590228404
Product Length/Depth
0.001 in
Product Height
0.001 in
Product Width
0.001 in
Product Weight
0.001 lb
Warranty
Not Applicable
Compliances
RoHS Compliant
Certifications
Contact Manufacturer UL Recognized CSA Certified
Amperage Rating
1-15A
Interrupt rating
100 kAIC
Short-circuit rating
100 kA
Voltage rating
600 Vac, 600 Vdc
Material
Thermoplastic
Wire size
#14-6 AWG Cu
Class
Class G
Connection
Box lug
Used with
For use with SC fuse
Bussmann series complete full line catalog no. 1007
Bussmann series complete full line catalog no. 1007
Bussmann series Fuseology
Eaton Specification Sheet - BG3013B
Feature: High interrupt rating supports rapid fault isolation, reducing damage to downstream equipment and downtime. Business Impact: Minimizes repair costs and extends asset life in high-energy panels. Application: Control panels and machine interfaces requiring 100 kAIC protection. Feature: Wide voltage suitability with 600 Vac/dc capability ensures compatibility across AC and DC control circuits. Business Impact: Common parts for mixed-voltage architectures lowers inventory and training costs. Application: Industrial automation assemblies and interlocks where dual-voltage operation is present. Feature: Thermoplastic housing with Class G designation provides durable insulation in harsh environments. Business Impact: Improved safety margins and longer service intervals, reducing maintenance frequency. Application: Enclosures subject to vibration and temperature variation in manufacturing lines. Feature: Box lug connection and wire size range #14-6 AWG Cu enable straightforward wiring and secure terminations. Business Impact: Faster installation, fewer loose connections, and dependable current paths. Application: Panel feeders and fused disconnects where clean, common terminations matter. Feature: RoHS compliance plus UL Recognized and CSA Certified markings offer regulatory alignment and supplier confidence. Business Impact: Streamlined compliance audits, easier vendor validation, and lower risk of non-conformance. Application: Regulated facilities and customers with strict supplier requirements. Feature: For use with SC fuses ensures compatibility with Bussmann series protection devices and standard industry practices. Business Impact: Reduces spare parts diversity and simplifies stocking of protection components. Application: SC fuse-based protection schemes across control cabinets.
Get a Quick Quote for a Eaton BG3013B
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton BG3013B?
Enquire Now
FAQs
Install BG3013B using the box lug terminals and wire with #14-6 AWG copper conductors. Ensure the fused circuit is within the 1-15 A range and secure all terminations to prevent loose connections. Verify the panel clearance and follow system wiring diagrams to maintain proper isolation and fault protection.
BG3013B provides 1-15 A amperage rating, a 100 kAIC interrupt rating, and a 100 kA short-circuit rating. It is rated for 600 Vac and 600 Vdc, with a Class G construction. These specs enable fast fault isolation while accommodating both AC and DC control circuits in industrial equipment.
Yes, BG3013B is designed for use with SC fuses and accepts copper wire in the #14-6 AWG range. This supports common Bussmann SC fuse protection schemes and simplifies sourcing and spares in panel builds.
BG3013B is RoHS Compliant and carries UL Recognized and CSA Certified markings. These certifications facilitate regulatory compliance, supplier qualification, and safer procurement within regulated facilities.
The BG3013B combines a robust 100 kAIC interrupt rating, broad voltage capability, and RoHS/UL/CSA compliance to minimize downtime, simplify maintenance, and streamline audits. Its compatibility with SC fuses and standard copper wiring reduces spare parts diversity and improves install efficiency in industrial control panels.
