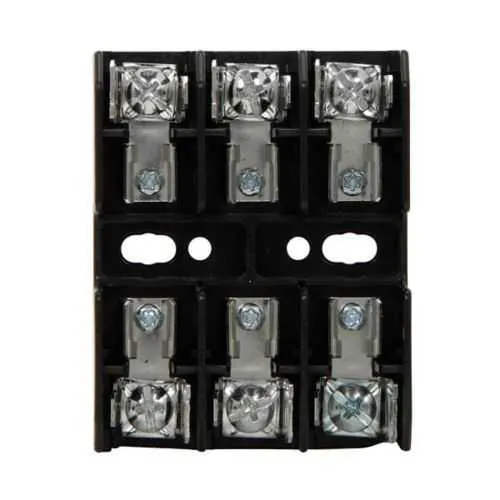

Eaton BG3013PQ Open Fuse Block - 100 kAIC, UL Recognized
Part Number: BG3013PQ
Quick Summary
The Eaton BG3013PQ open fuse block provides reliable three-pole protection for industrial control panels. Designers and technicians often struggle with compact, easy-to-wire protection blocks that meet demanding fault current levels without sacrificing speed or safety. UL Recognized, CSA Certified, and RoHS Compliant, this unit satisfies critical regulatory and environmental requirements for modern installations. With a 600 V rating and an amperage range of 0.18–15 A, it scales from small-to-medium protection needs in panel boards. The pressure-plate/quick-connect connection simplifies wiring and speeds field maintenance, while its Class G designation and three-pole configuration support consistent, predictable fault isolation. This makes BG3013PQ a practical choice for cost-effective, compliant protection in automation lines.
Product Information
Extended Description
BG3013PQ Eaton: Eaton Bussmann series BG open fuse block, 0.18-15 A, Three-pole, Class G, Pressure plate/quick connect, 100 kAIC, 600 V
Product Name
Eaton Bussmann series BG open fuse block
Catalog Number
BG3013PQ
UPC
051712137102
Product Length/Depth
3 in
Product Height
1.25 in
Product Width
2.5 in
Product Weight
0.23 lb
Warranty
Not Applicable
Compliances
RoHS Compliant
Certifications
Contact Manufacturer UL Recognized CSA Certified
Amperage Rating
0.18-15A
Short-circuit rating
100 kA
Voltage rating
600 V
Number of Poles
Three-pole
Class
Class G
Connection
Pressure plate/quick connect
BG3013PQ~BUSS FUSEBLOCK WAS 2093
BG3013PQ~BUSS FUSEBLOCK WAS 2093
Bussmann series Fuseology
Eaton Specification Sheet - BG3013PQ
Feature → Business Impact → Application: The BG3013PQ’s three-pole open fuse block design delivers balanced protection across three-phase circuits, reducing the risk of asymmetric faults and improving panel reliability. This translates to fewer unscheduled outages and streamlined commissioning in manufacturing lines that require stable three-phase protection. Application: Ideal for industrial control panels and machine-guarded equipment where compact, robust protection is needed. Feature → Business Impact → Application: Amperage range from 0.18 to 15 A provides flexible protection levels for control circuits and feeder connections, enabling design optimization and cost control while maintaining safety margins. Application: Instrumentation panels, small automation loops, and panel boards with varying load profiles.Feature → Business Impact → Application: Short-circuit rating of 100 kAIC offers high fault tolerance, enhancing safety margins in high-energy environments and reducing conductor damage during severe faults. Application: Packaging lines, conveyors, and press-room controls where fault energy can be substantial. Feature → Business Impact → Application: 600 V voltage rating supports common industrial distributions, simplifying compatibility with standard MCCs and motor control gear. Application: General-purpose panels in manufacturing and processing facilities needing reliable low-to-medium voltage protection. Feature → Business Impact → Application: Pressure plate/quick-connect terminations enable fast, secure wiring and straightforward field maintenance, minimizing installation time and reducing spare-part complexity. Application: Assembly cells and OEM panel builds where time-to-commission is critical. Feature → Business Impact → Application: RoHS compliance, UL Recognized, and CSA Certified provide confident regulatory alignment, reducing risk during audits and ensuring supplier standardization. Application: Regulated environments such as food & beverage, pharmaceuticals, and automotive electronics manufacturing.
Get a Quick Quote for a Eaton BG3013PQ
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton BG3013PQ?
Enquire Now
FAQs
BG3013PQ uses pressure plate and quick-connect terminations to simplify field wiring. Plan for secure conductor insertion, verify conductor sizes within the 0.18-15 A amperage range, and ensure compatible insulation and conductor rating for 600 V systems. Use correct torque-free insertion guidance and verify ongoing contact integrity during maintenance to prevent arcing.
Yes. The BG3013PQ is a three-pole open fuse block rated for 600 V, making it suitable for three-phase protection in industrial panels. Its 0.18-15 A range allows tuning to protect circuit paths without oversizing components, while the 100 kAIC short-circuit rating provides robust protection against high-energy faults in typical manufacturing environments.
BG3013PQ provides a 100 kAIC short-circuit rating, indicating it can safely interrupt high-energy fault currents typical of industrial power distribution. This reduces damage to upstream equipment, improves safety margins for personnel, and supports more reliable panel operation in demanding applications such as automated lines and material handling systems.
BG3013PQ is UL Recognized, CSA Certified, and RoHS compliant. UL Recognized indicates conformance to safety standards for protection devices, CSA Certified confirms Canadian compliance, and RoHS ensures restricted hazardous substances are controlled. These certifications simplify audits, support global deployments, and align with sustainability goals in regulated industries.
The combination of quick-connect terminations and a compact three-pole form factor reduces wiring time and field labor, cutting commissioning and maintenance costs. Its standardized ratings (600 V, 100 kAIC) and RoHS/UL/CSA compliance streamline procurement and enable reuse across multiple panel builds, delivering faster ROI and greater design flexibility in automation projects.
