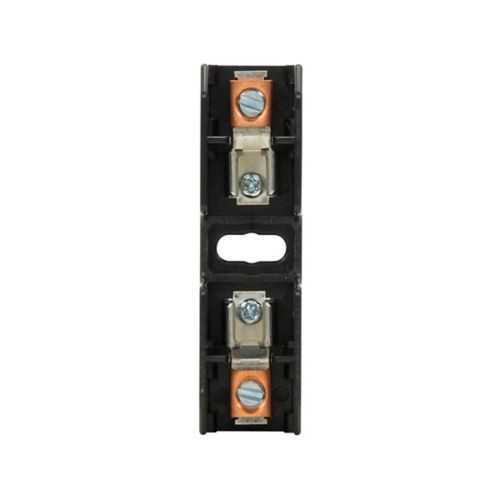

Eaton BG3021B Open Fuse Block - UL Recognized
Part Number: BG3021B
Quick Summary
BG3021B open fuse block provides compact overcurrent protection for control panels, machines, and equipment wiring. The challenge is delivering reliable protection without sacrificing panel density or serviceability. UL Recognized and CSA Certified with RoHS compliance ensure regulatory adherence, while a 100 kAIC short-circuit rating and 600 V capacity support demanding industrial applications. With box lug termination and a single-pole design, it simplifies installation and reduces total cost of ownership, making it a practical choice for modern panel builders and machine integrators.
Product Information
Extended Description
BG3021B Eaton: Eaton Bussmann series BG open fuse block, 1-20 A, Single-pole, Class G, Box lug, 100 kAIC, 600 V
Product Name
Eaton Bussmann series BG open fuse block
Catalog Number
BG3021B
UPC
051712736541
EAN
5027590240567
Product Length/Depth
0.001 in
Product Height
0.001 in
Product Width
0.001 in
Product Weight
0.001 lb
Warranty
Not Applicable
Compliances
RoHS Compliant
Certifications
Contact Manufacturer UL Recognized CSA Certified
Amperage Rating
1-20A
Short-circuit rating
100 kA
Voltage rating
600 V
Number of Poles
Single-pole
Class
Class G
Connection
Box lug
BG3021B~FUSEBLOCK WAS 2892
BG3021B~FUSEBLOCK WAS 2892
Bussmann series Fuseology
Eaton Specification Sheet - BG3021B
Amperage range of 1–20 A provides flexible protection for a variety of control circuits, reducing the need for oversizing and inventory. This directly translates to lower material costs and improved protection accuracy, especially in compact panels. The 100 kAIC short-circuit rating strengthens fault tolerance, safeguarding downstream components and reducing repair downtime after faults. A 600 V voltage rating expands suitability across typical industrial controls and automation panels, enabling universal applicability in machine builders and panel shops. Class G construction delivers reliable interruption performance, while box lug connections simplify wiring and ensure durable, vibration-resistant terminations in harsh environments. The BG3021B’s RoHS compliance and UL/CSA certifications relieve compliance risk for global deployments and end-user approvals. Its compatibility with the BG Bussmann series supports easy spares, fast replacements, and streamlined maintenance in serviceable control environments.
Get a Quick Quote for a Eaton BG3021B
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton BG3021B?
Enquire Now
FAQs
BG3021B is a single-pole, open fuse block designed for the Eaton Bussmann BG family with box lug termination. It supports 1–20 A protection up to 600 V and a 100 kAIC fault rating, making it suitable for compact control panels and machine enclosures while enabling quick replacement of similar BG blocks.
BG3021B offers an amperage range of 1–20 A, a short-circuit rating of 100 kA, and a voltage rating of 600 V. These ratings support reliable protection of small to medium control circuits in industrial equipment without compromising on safety or performance.
Yes. The BG3021B is RoHS compliant and carries UL Recognized and CSA Certified markings. This combination helps meet global regulatory requirements and facilitates easier approvals for OEMs and integrators.
Installation uses the box lug termination. Mount the single-pole BG3021B in a suitable panel space, connect the supply and load wires to the box lugs, and secure termination per standard wiring practices. The compact form factor supports dense panel layouts and faster field replacements.
Datasheets and catalogs are available from Eaton. Look for BG3021B specification sheets and full catalog PDFs at Eaton’s site, including the BG3021B datasheet (PDF) and related Bussmann series catalogs and multimedia resources such as the Bussmann Fuseology video.
