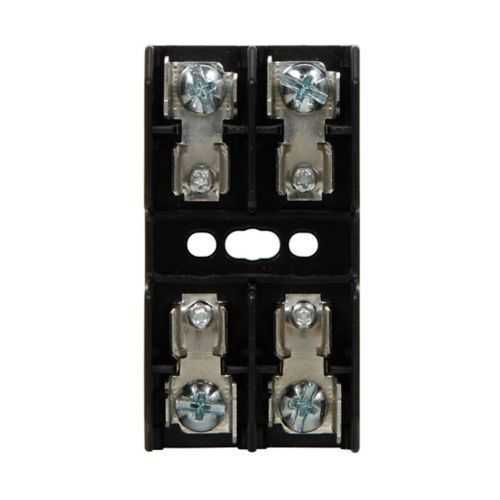

Eaton BG3022B Open Fuse Block - 100 kAIC 600 V
Part Number: BG3022B
Quick Summary
BG3022B open fuse block delivers fast overcurrent protection for two-pole, 600 V industrial circuits. This compact device helps panel builders and machine integrators meet reliability targets without sacrificing space. The two-pole design with box lug termination streamlines wiring and improves fault isolation, reducing installation time on crowded control panels. UL Recognized and CSA Certified components, along with RoHS compliance, provide safety and environmental assurance for regulated facilities. By standardizing on the BG series, electricians gain inventory consistency and easier substitution inside Eaton Bussmann ecosystems, while maintaining essential protection at 1–20 A and 100 kAIC ratings. In practice, this fuse block supports scalable protection strategy, compatible with Bussmann Series catalogs and a wide range of panel configurations.
Product Information
Extended Description
BG3022B Eaton: Eaton Bussmann series BG open fuse block, 1-20 A, Two-pole, Class G, Box lug, 100 kAIC, 600 V
Product Name
Eaton Bussmann series BG open fuse block
Catalog Number
BG3022B
UPC
051712736572
Product Length/Depth
3 in
Product Height
1 in
Product Width
2 in
Product Weight
0.153 lb
Warranty
Not Applicable
Compliances
RoHS Compliant
Certifications
Contact Manufacturer UL Recognized CSA Certified
Amperage Rating
1-20A
Short-circuit rating
100 kA
Voltage rating
600 V
Number of Poles
Two-pole
Class
Class G
Connection
Box lug
Bussmann series complete full line catalog no. 1007
Bussmann series complete full line catalog no. 1007
Bussmann series Fuseology
Eaton Specification Sheet - BG3022B
The BG3022B provides a 1–20 A amperage range with a 100 kA short-circuit rating, delivering precise protection while minimizing nuisance tripping in demanding control panels. This translates to improved equipment uptime and reduced maintenance costs in MCCs and panelboards. The two-pole configuration with box lug terminations simplifies wiring discipline, speeds up installation, and enhances fault isolation for safer, more reliable automation systems. RoHS compliance and UL/CSA certifications remove compliance risk for regulated facilities and support environmentally responsible design choices. Its compatible design within the Bussmann BG open fuse block family enables standardized spare parts and faster part substitution, reducing downtime during fuse replacements. Overall, the BG3022B supports scalable protection strategies across manufacturing environments while maintaining a compact footprint and robust 600 V operation.
Get a Quick Quote for a Eaton BG3022B
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton BG3022B?
Enquire Now
FAQs
BG3022B is a two-pole open fuse block with box lug terminations designed for electrical panels, MCCs, and machine control panels. It wires quickly via box lugs, supports 1–20 A protection, and uses a 600 V rating with a 100 kAIC short-circuit capacity, enabling reliable circuit protection in demanding industrial environments.
BG3022B provides an amperage rating of 1–20 A, a short-circuit rating of 100 kA, and a voltage rating of 600 V. It is a two-pole Class G device with box lug connections, suitable for two-pole protection in control panels and panelboards.
Yes, BG3022B is RoHS compliant. It carries UL Recognized and CSA Certified certifications, which support safety and regulatory compliance for industrial electrical installations and reduce risk during audits and inspections.
Technical data for BG3022B is available via Eaton’s resources, including the Bussmann series full-line catalog, the BG3022B specification sheet, and related videos such as Fuseology. Downloadable PDFs and digital catalogs provide comprehensive wiring, rating, and installation instructions.
Using BG3022B delivers downtime reduction through rapid fuse replacement, standardized spare parts for maintenance, and consistent protection across control panels. Its box lug termination and Bussmann BG-series compatibility streamline procurement and wiring practices, contributing to lower total cost of ownership in automation projects and regulated manufacturing environments.
