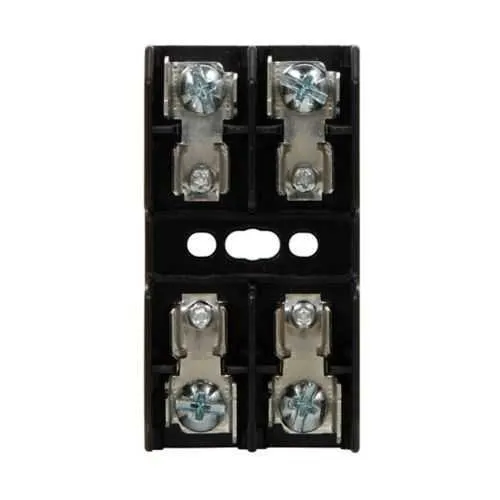

Eaton BG3022PQ Open Fuse Block - 100 kAIC Class G
Part Number: BG3022PQ
Quick Summary
The BG3022PQ Eaton open fuse block protects control circuits in panel boards and control cabinets. Finding reliable protection that integrates easily with existing panels without compromising uptime can be challenging. It is RoHS compliant and UL Recognized with CSA Certification, ensuring regulator-ready installations. Designed for the Bussmann BG open fuse family, it supports a two-pole configuration at 600 V and offers a 1–20 A range with a 100 kAIC short-circuit rating, enabling fast, safe disconnection. This compact, easy-to-install block reduces wiring errors and simplifies maintenance, delivering improved system availability and peace of mind for electrical teams in industrial environments.
Product Information
Extended Description
BG3022PQ Eaton: Eaton Bussmann series BG open fuse block, 1-20 A, Two-pole, Class G, Pressure plate/quick connect, 100 kAIC, 600 V
Product Name
Eaton Bussmann series BG open fuse block
Catalog Number
BG3022PQ
UPC
051712137164
Product Length/Depth
0.001 in
Product Height
0.001 in
Product Width
0.001 in
Product Weight
0.158 lb
Warranty
Not Applicable
Compliances
RoHS Compliant
Certifications
Contact Manufacturer UL Recognized CSA Certified
Amperage Rating
1-20A
Short-circuit rating
100 kA
Voltage rating
600 V
Number of Poles
Two-pole
Class
Class G
Connection
Pressure plate/quick connect
Bussmann series complete full line catalog no. 1007
Bussmann series complete full line catalog no. 1007
Bussmann series Fuseology
Eaton Specification Sheet - BG3022PQ
Feature: Amperage range 1-20 A. Business Impact: Provides flexible protection across a wide load spectrum, reducing the need for multiple fuse blocks and improving procurement efficiency. Application: Ideal for panel boards and control cabinets with varying control circuits. The BG3022PQ supports scalable protection in machine-builds and retrofit projects. Feature: Two-pole, Class G, 600 V rating. Business Impact: Ensures safe isolation of both conductors, enabling compliant motor and circuit protection in 600 V systems. Application: Suitable for two-pole motor starters and control circuits in process automation. Feature: Short-circuit rating of 100 kAIC. Business Impact: High fault tolerance minimizes equipment damage and unscheduled downtime. Application: Critical industrial lines and heavy-duty drives where fault currents are a concern. Feature: Pressure plate/quick connect termination. Business Impact: Reduces wiring time and termination errors, speeding assembly and serviceability. Application: Field wiring and panel installations with limited knock-out access. Feature: Compliance and safety. Business Impact: RoHS compliance plus UL Recognized and CSA Certified approvals reduce compliance risk and streamline audits. Application: Regulated industries and machinery manufacturers requiring traceable certifications. Feature: BG open fuse family compatibility. Business Impact: Simplifies design decisions and cross-referencing with existing Bussmann components. Application: System integrators standardizing on the BG series for protection schemes. Feature: Documentation and data access. Business Impact: Ready access to catalogs and datasheets accelerates engineering decisions and procurement. Application: Early-stage design reviews, BOM creation, and supplier qualification.
