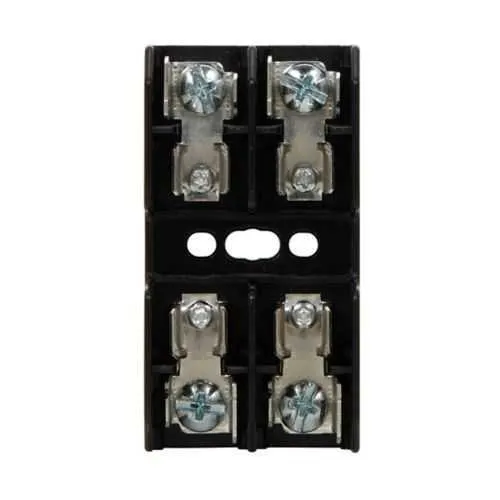

Eaton BG3022SQ Open Fuse Block - UL Recognized
Part Number: BG3022SQ
Quick Summary
BG3022SQ open fuse block provides compact, reliable overcurrent protection for industrial control panels. When space is tight or maintenance must be rapid, engineers need a fuse holder that combines simple wiring with robust ratings. This Eaton BG3022SQ supports RoHS compliance and is UL Recognized and CSA Certified, enabling safe, compliant installations across regions. Its two-pole Class G design and screw/quick-connect terminations simplify wiring, improve fault isolation, and reduce panel footprint. Designed to integrate with Bussmann protection schemes, BG3022SQ supports scalable protection and streamlined procurement for modern manufacturing. Its compact size and flexible termination options help minimize installation time and training costs.
Product Information
Extended Description
BG3022SQ Eaton: Eaton Bussmann series BG open fuse block, 1-20 A, Two-pole, Class G, Screw/quick connect, 100 kAIC, 600 V
Product Name
Eaton Bussmann series BG open fuse block
Catalog Number
BG3022SQ
UPC
051712736633
Product Length/Depth
0.001 in
Product Height
0.001 in
Product Width
0.001 in
Product Weight
0.001 lb
Warranty
Not Applicable
Compliances
RoHS Compliant
Certifications
Contact Manufacturer UL Recognized CSA Certified
Amperage Rating
1-20A
Short-circuit rating
100 kA
Voltage rating
600 V
Number of Poles
Two-pole
Class
Class G
Connection
Screw/quick connect
Bussmann series complete full line catalog no. 1007
Bussmann series complete full line catalog no. 1007
Bussmann series Fuseology
Eaton Specification Sheet - BG3022SQ
BG3022SQ provides a wide amperage range of 1–20 A, enabling tailored protection for small control circuits and feeder lines. This flexibility reduces over- and under-protection, lowers spare-parts costs, and speeds commissioning in new builds. It is well suited for compact control panels, modular machines, and panel layouts where a single block can cover multiple loads without upsizing hardware. The block delivers a 100 kAIC short-circuit rating, supporting safe interruption of high-energy faults and simplifying protection coordination across feeders in manufacturing environments, which translates to higher line uptime and lower repair costs. With a 600 V voltage rating and a two-pole Class G design, it balances compactness with reliable performance; screw/quick-connect terminations offer versatile wiring options that speed installation and ease field upgrades as configurations evolve. RoHS compliance and listings such as UL Recognized and CSA Certified establish regulatory alignment for multi-region deployments, reducing audit risk and accelerating procurement. Flexible termination and Bussmann-series compatibility enable retrofits and new installations alike, simplifying stocking and training while delivering predictable, repeatable protection across critical lines in electronics assembly, packaging, and process automation. Industry practices increasingly favor BG-series blocks for standardized protection architectures, which lowers total cost of ownership and improves maintenance planning over the equipment lifecycle.
Get a Quick Quote for a Eaton BG3022SQ
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton BG3022SQ?
Enquire Now
FAQs
BG3022SQ is a two-pole open fuse block with screw and quick-connect terminations designed for standard industrial control panel layouts. It accommodates typical Bussmann series protection schemes and works with common conductor sizes used in 600 V systems. For best results, match conductor terminals to the block’s torque specifications and follow Eaton’s installation guidelines to ensure reliable termination and fault isolation in retrofit or new installations.
The BG3022SQ supports a 100 kAIC short-circuit rating, enabling safe interruption of high-energy faults and minimizing the risk of collateral damage. This rating simplifies protection coordination within feeders and subpanels in industrial environments, helping maintain downstream equipment integrity and reducing downtime during fault events.
Yes. The BG3022SQ is RoHS compliant and carries UL Recognized and CSA Certified listings, which supports regulatory alignment across North American and European markets. These certifications assist with supplier qualification, safety audits, and adherence to global procurement standards when integrating the open fuse block into multi-region protection schemes.
To minimize wiring errors, verify conductor sizes match terminal ratings, use the screw/quick-connect options appropriate for the wire gauge, and torque terminations per Eaton’s guidelines. Plan wire routing to avoid stress and vibration, and clearly label each pole to ensure correct fuse alignment with the intended protection scheme in the panel.
The BG3022SQ reduces spare-part diversity by covering multiple loads with a single block, shortening commissioning time and simplifying stocking. Its robust 100 kAIC rating lowers downtime risk from faults, while RoHS and UL/CSA certifications streamline compliance processes, resulting in lower total cost of ownership and easier maintenance planning across a production line.
